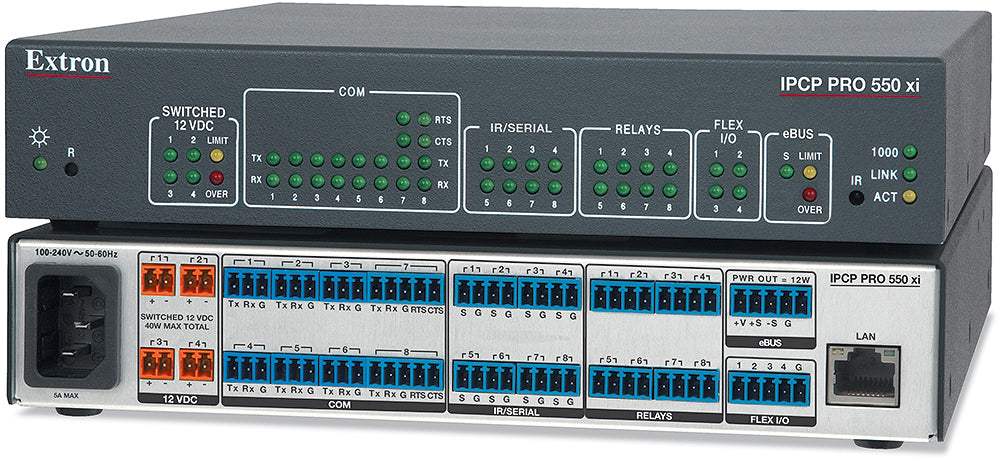

Extron IPCP Pro 550 xi IPCP Pro xi Control Processor
The Extron IPCP Pro 550 xi is a versatile, high-performance control processor designed for centralized AV control in larger applications. It features enhanced performance with greater processing power and twice the memory of our IP Link Pro series. The IPCP Pro 550 xi also features advanced security standards and Gigabit Ethernet, which ensures compatibility with multiple TouchLink® Pro touchpanels, Network Button Panels, and IPL EXP expansion interfaces using a standard network infrastructure. The IPCP Pro 550 xi is an ideal choice for controlling multiple devices and control signal types within an AV system.
The Extron IPCP Pro 550 xi can be configured using Global Configurator Plus or Global Configurator Professional software or programmed using Extron ControlScript programming. For enterprise-wide applications, GlobalViewer® Enterprise can provide centralized AV resource monitoring, management, and control over a computer network. In addition, the IPCP Pro 550 xi supports Extron LinkLicense®, which further enhances the capabilities of Extron Pro Series control systems.
Features
- Upgraded single-core processor and two times more memory with 1 GB of RAM and 8 GB of Flash — For increased project upload speeds, faster runtime performance, and more sophisticated projects.
- Supports TouchLink Pro touchpanels, eBUS® devices, Network Button Panels, and IPL EXP expansion interfaces
- Supports secure industry standard communications protocols — All IP Link Pro models use industry standard communication protocols, including HTTP (insecure), HTTPS, SSH, SFTP, SMTP, NTP, Discovery Service, DHCP, DNS, ICMP, 802.1X, and IPv4.
- Supports LinkLicense® — Extron LinkLicense unlocks features that add convenience, expand system functionality, and enhance the capabilities of Extron products.
- Six bidirectional RS-232 serial ports with software handshaking — Captive screw serial ports that can control six RS-232 devices.
- Two bidirectional RS-232/RS-422/RS-485 serial ports with hardware and software handshaking — Captive screw serial ports that can communicate with two RS-232/RS-422/RS-485 serially controlled devices.
- Eight IR/Serial ports for one-way control of external devices
- Four Flex I/O ports — Allows for interfacing with other systems in the room.
- Eight relays for controlling room functions — Enables control of lighting, screen settings, and other device functions.
- eBUS port for connecting eBUS button panels and accessories
- Four independently switched 12 VDC outputs — Provides power to low voltage devices to eliminate the need for local power supplies.
- Ethernet monitoring and control — Manage, monitor, and control AV devices using a standard Ethernet network.
- Central Deployment - Use the primary control processor to deploy all system files, configurations and programs — Quickly deploy the control system by uploading all project files to the primary control processor. The primary control processor will automatically transfer files to the other touchpanels, control processors and button panels in that system once they come online.
- Supports popular BMS – Building Management System protocols, such as BACnet, KNX, and DALI — These protocols allow for centralized monitoring and control of mechanical and electrical systems that include HVAC, lighting, power, fire, and security.
- Supports 10/100/1000Base-T
- Supports Ethernet-controllable devices — Allows for control of multiple Ethernet-enabled AV devices such as displays, switchers, and sources.
- Integrated IR Learning capability — Captures IR remote codes from a device’s handheld remote control.
- Automatic clock synchronization allows touchpanel to display the accurate time and date
- Supports control system synchronization — Synchronization will allow users to retain and recover the state of their configured endpoints in case of network or power failure.
- Front panel port status indicators
- Multi-level password protection — Allows security to be set based on user roles.
- Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
- Library of Pro Series device drivers and modules for use with Global Configurator, or ControlScript programming, respectively — Start and execute projects quickly using Extron Global Configurator device drivers and Extron device modules to control various display and source devices, such as projectors, flat-panel displays, and Blu-ray players. Extron offers fully tested Ethernet, serial, and IR device drivers and modules.
- Supports 802.1X Authentication — Provides support for IEEE 802.1X authentication standard for port-based Network Access Control.
- Compact, 1U, half rack width metal enclosure
- Internal Extron Everlast™ power supply — Provides worldwide power compatibility, with high‑demonstrated reliability and low power consumption for reduced operating cost
- Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
- TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.
Specs
Also see our Specs in PDF format
| IPCP Pro 550 xi | |||
| Memory | |||
|---|---|---|---|
| |
1 GB | ||
| |
8 GB | ||
| Software | |||
| |
Global Configurator® Plus and Professional | ||
| |
Global Scripter® | ||
| |
Extron Control | ||
| |
GlobalViewer® Enterprise | ||
| |
Toolbelt, embedded web page | ||
| Hardware user interface | |||
| |
TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels | ||
| Ethernet | |||
| |
1: 1 LAN | ||
| |
1 female RJ-45 connector | ||
| |
10/100/1000Base-T, half/full duplex with autodetect | ||
| |
ARP, DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP | ||
| |
Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1 |
||
| Serial | |||
| |
2 bidirectional RS-232, RS-422, RS-485 (ports 7 and 8) 6 bidirectional RS-232 (ports 1 through 6) |
||
| |
(2) 3.5 mm captive screw connectors, 5 pole (6) 3.5 mm captive screw connectors, 3 pole |
||
| |
300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity |
||
|
|||
| |
|||
| Serial, 5-pole captive screw | |||
| |
Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS | ||
| |
Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+ | ||
| |
Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+ | ||
| |
Pin 1 = Tx, 2 = Rx, 3 = Gnd | ||
| Flex I/O | |||
| |
4 analog input or digital input/output (configurable) | ||
| |
(1) 3.5 mm captive screw connector, 5 pole | ||
| |
|||
| |
0 to 24 VDC, clamped at +30 VDC | ||
| |
29k ohms | ||
| |
1k ohms to +5 VDC | ||
| |
Programmable range: 100 mV to 24 VDC, default = 2.4 VDC | ||
| |
Programmable range: 100 mV to 24 VDC, default = 0.8 VDC | ||
| |
250 mA sink from 24 VDC max. | ||
| |
12 bit A/D, 0 to 24 VDC | ||
| |
1, 2, 3, 4 = flex I/Os 1, 2, 3, 4; 5 = Gnd | ||
| IR/serial | |||
| |
8 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz | ||
| |
(4) 3.5 mm captive screw connectors, 4 pole | ||
| |
300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity |
||
| |
For each port, pin 1 = signal, 2 = Gnd | ||
| |
30 kHz to 300 kHz | ||
| |
30 kHz to 300 kHz | ||
| |
2" (5.1 cm) to 12" (30.5 cm) from the front panel | ||
| Relay | |||
| |
8 normally open relays | ||
| |
(4) 3.5 mm captive screw connectors, 4 pole | ||
| |
24 VDC, 1 A | ||
| eBUS | |||
| |
(1) 3.5 mm captive screw connector, 5 pole (uses 4 poles) | ||
| |
+V = +12 VDC; +S = + signal; -S = - signal; G = ground | ||
| |
Extron STP20-2/1000 or STP20-2P/1000 cable | ||
| |
1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the eBUS Technology Reference Guide for details. | ||
| |
12 watts | ||
| Switched DC power output | |||
| |
4 switched 12 VDC outputs | ||
| |
(4) 3.5 mm captive screw connectors, 2 pole | ||
| |
Maximum 40 watts total | ||
| |
|||
| |
0.1 watt to 40 watts | ||
| General | |||
| |
Internal Input: 100-240 VAC, 50-60 Hz |
||
| |
61.4 watts 6.2 watts, 100-240 VAC, 50-60 Hz without eBUS or switched 12 VDC output |
||
| |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
||
| |
Convection, no vents | ||
| |
168.6 BTU/hr 21.2 BTU/hr without eBUS or switched 12 VDC output |
||
| |
|||
| |
Yes, with optional 1U rack shelf | ||
| |
Yes, with optional bracket kit | ||
| |
Metal | ||
| |
1.7" H x 8.7" W x 10.5" D (1U high, half rack wide) (43 mm H x 221 mm W x 267 mm D) (Depth excludes connectors.) |
||
| |
2.4 lbs (1.1 kg) | ||
| |
CE, C-Tick, c-UL, FCC Class A, ICES, KC, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE |
||
| |
3 years parts and labor | ||
| |
7 years parts and labor | ||
|
|||
|
|||
| (5902-D5) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 60-1913-01A | 6.13" (15.6 cm) | 16.56" (42.1 cm) | 12.0" (30.5 cm) | 3.88 lbs (1.76 kg) |
