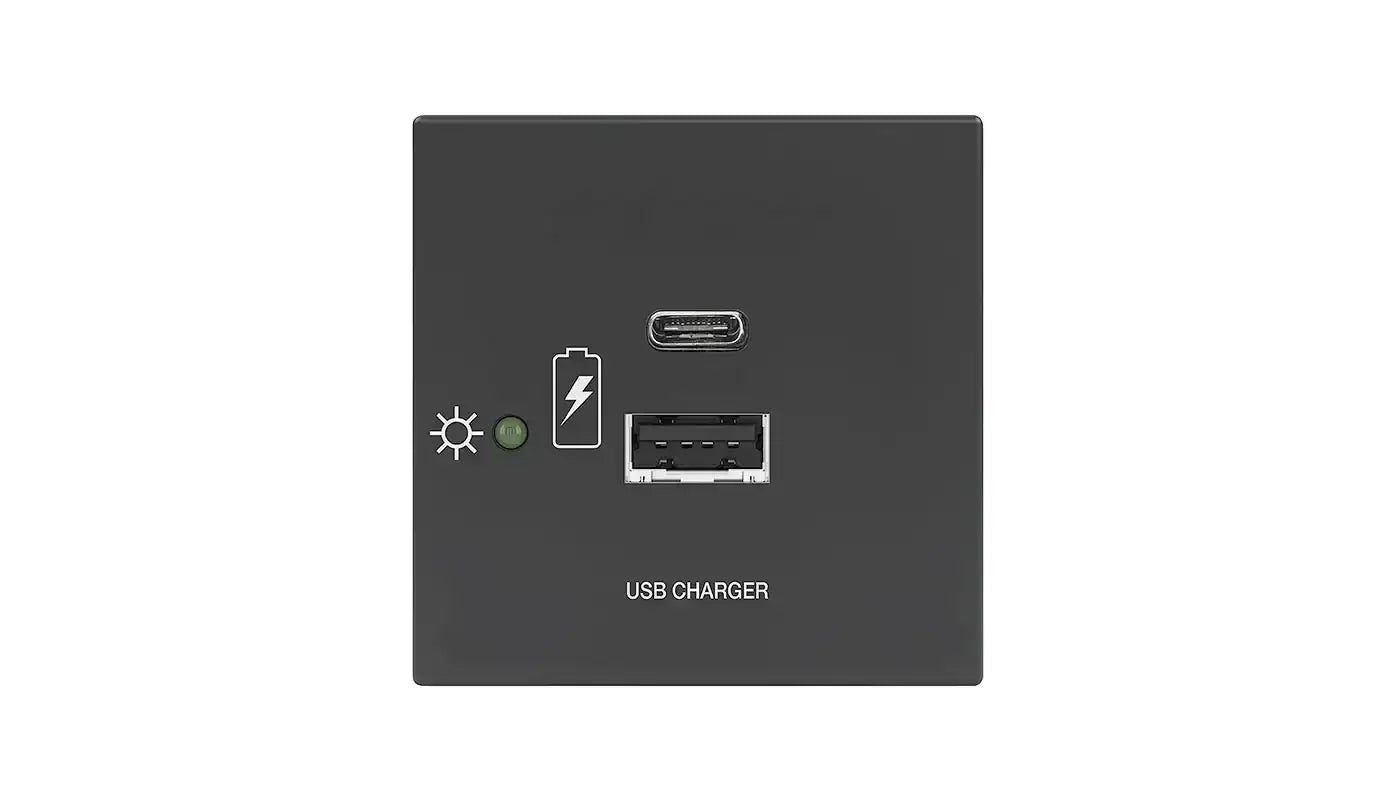

Extron Flex55 USB 311 PowerPlate (1) USB-C & (1) USB-A, Black

The Extron USB PowerPlate 300 Series provides AC and/or USB power outlets in a unique design that delivers full power to either USB outlet when a single device is connected. Each model is ideal for use with laptops, tablets, and other high current draw devices. The USB‑C^® outlet supplies up to 45 W of power, while the USB Type‑A outlet provides up to 10 W, with a maximum combined power output of 47.5 W when both outlets are in use. Each module includes a highly reliable, Extron-engineered external Everlast™ power supply that meets the Level VI standard for energy efficiency. An optional Extron ZipClip 200 mounting kit is available separately to mount the included power supply.

Features

• Provides two USB power outlets for charging laptops, tablets and other mobile devices
• USB‑C^® outlet provides up to 45 W of power and the USB Type‑A outlet provides up to 10 W, with a maximum combined power output of 47.5 W
• USB PowerPlate 311 AC AAP includes one unswitched, Edison-style AC power outlet

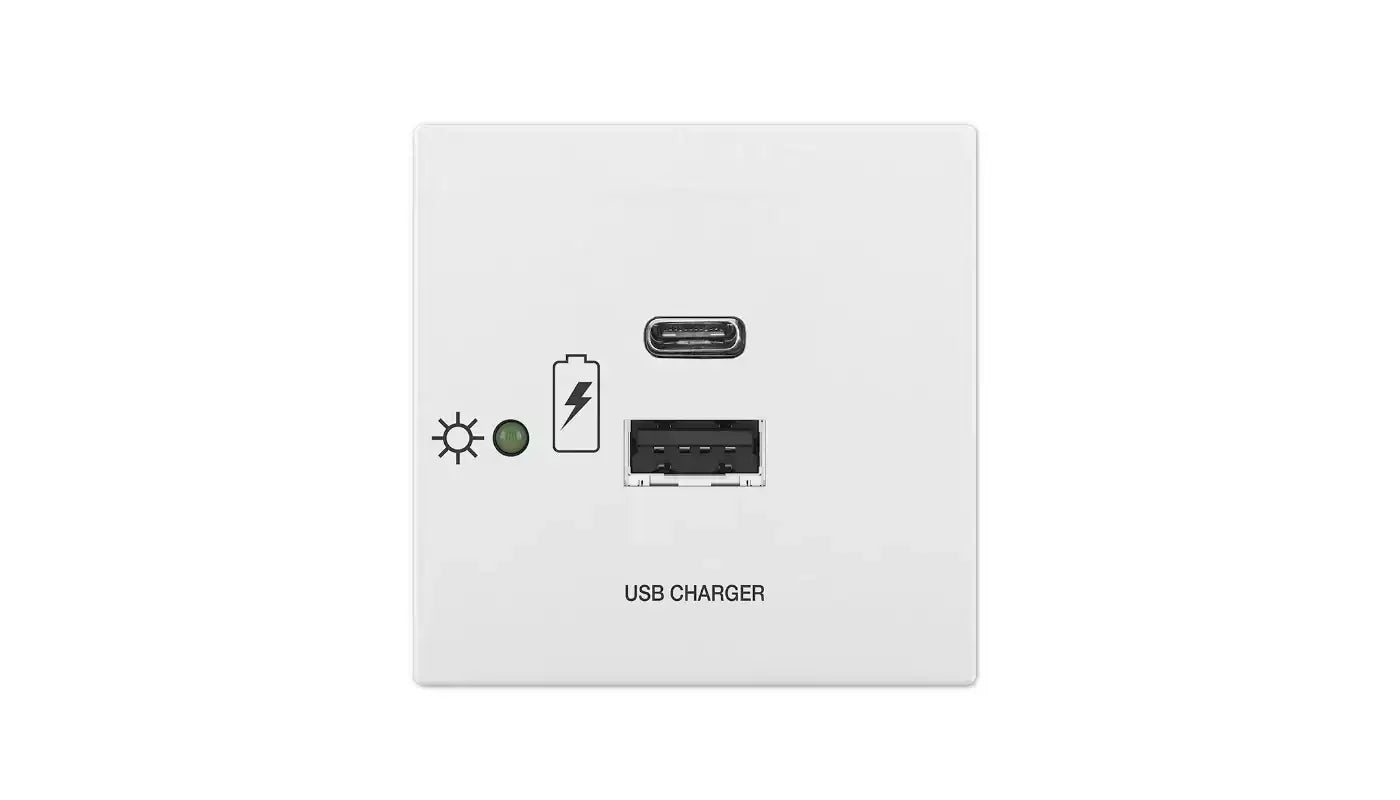

• AAP™ and MAAP™ modules are available in black, Flex55™ modules are available in black or white
• External Extron Everlast™ power supply included, replacement part #70-1246-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
• Optional ZipClip 200 Mounting Kit secures the included Extron power supply onto most surfaces, including tables and lecterns

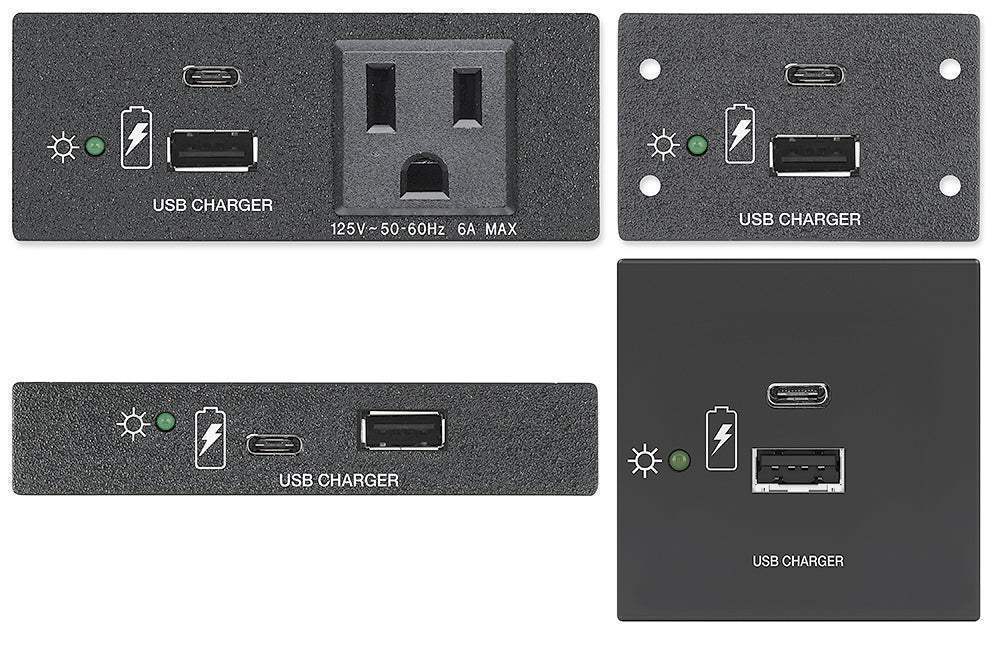

USB PowerPlate 300 Series
General
Power supply (USB)	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 4.2 A
Power output (USB)	USB Type-C: 5 VDC @ up to 3 A, 9 VDC @ up to 3 A, 12 VDC @ up to 3 A, 15 VDC @ up to 3A, or 20 VDC @ up to 2.25 A. USB Type-A: 5 VDC @ up to 2 A (5 VDC @ up to 0.5 A when USB Type-C is in 15 VDC or 20 VDC profile) 47.5 Total Watts
Power consumption
Device	50.9 watts
Device and power supply	55.1 watts
Power output (AC models)	125 VAC, 50-60 Hz, 12 A max.
Thermal dissipation (USB)
Device	11.4 BTU/hr
Device and power supply	25.9 BTU/hr
Mounting
Rack mount
AAP/MAAP/AC AAP/Flex55	Yes, with optional rack mounting frame
Furniture or wall mount
AAP/MAAP/AC AAP/Flex55	Yes, with optional mounting frame or enclosure
Enclosure type	Metal
Enclosure dimensions

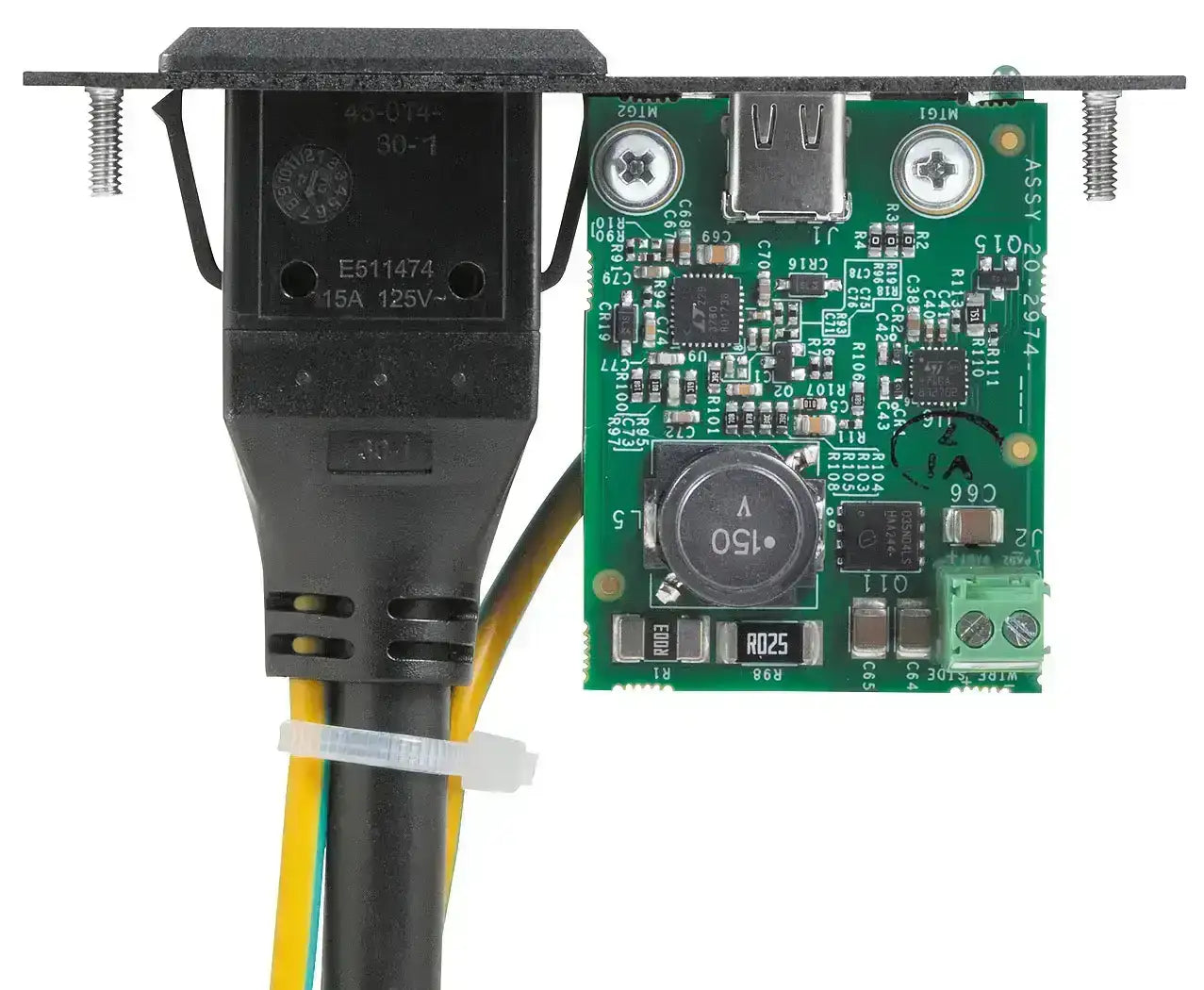

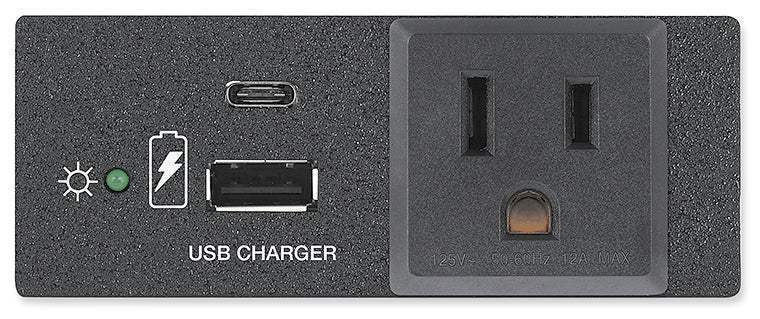

AC AAP
Connector type	NEMA 5-15 R, polarized, 3-pin to NEMA 5-15 P, non-polarized, 3-pin USB Type A female, power only USB Type C female, power only
Cable length	AC power cord 9' (2.74 meter)
Cable outer diameter	AC power cord 0.29" (7.4 mm)
Faceplate	1.38" H x 3.48" W (35 mm H x 88 mm W (double space AAP plate)
Device	1.30" H x 2.70" W (33 mm H x 68 mm W) With AC power cord attached, allow at least 2.77" (70 mm) depth in the furniture.

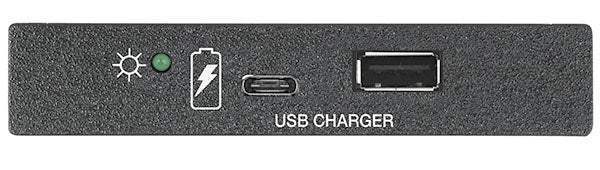

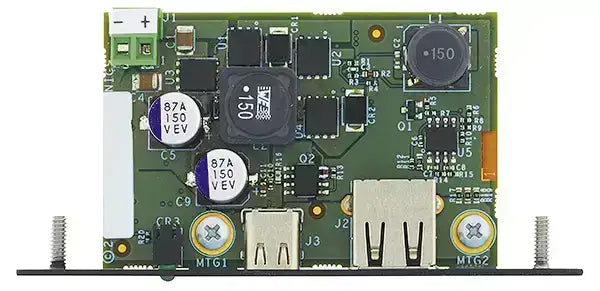

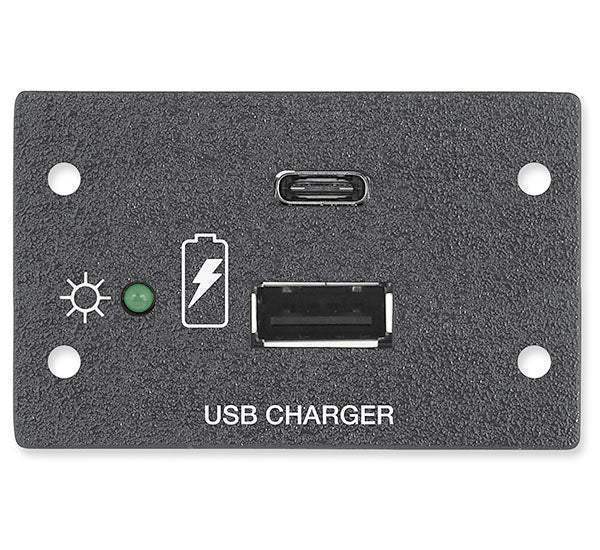

AAP
Connector type	USB Type A female, power only USB Type C female, power only
Faceplate	0.68" H x 3.48" W (17 mm H x 88 mm W) (single space AAP plate)
Device	0.60" H x 2.47" W x 1.62" D (15 mm H x 63 mm W x 41 mm D) Allow at least 1.8" (46 mm) depth in the wall or furniture for cable management.
MAAP
Connector type	USB Type A female, power only USB Type C female, power only
Faceplate	1.39" H x 2.16" W (35 mm H x 55 mm W) (double space MAAP plate)
Device	1.11" H x 1.41" W x 1.82" D (28 mm H x 36 mm W x 46 mm D) Allow at least 1.97" (50 mm) depth in the wall or furniture for cable management.

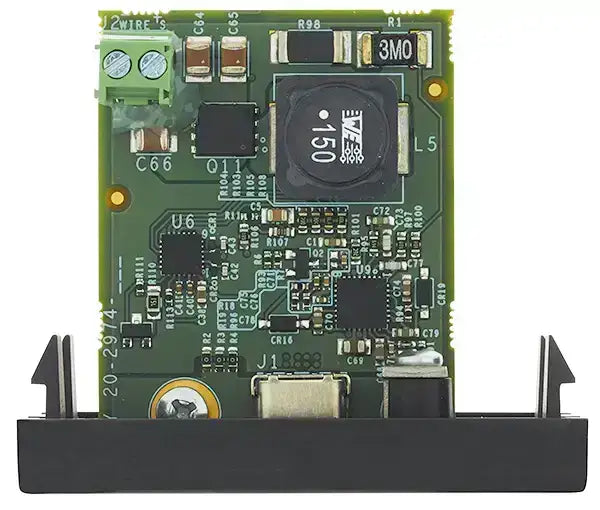

Flex55 dimensions	2.17" H x 2.17" W x 0.29" D (55 mm H x 55 mm W x 7.3 mm D) Allow at least 1.85" (47 mm) depth in the wall or furniture for cable management.
Product weight
AC AAP	1.2 lbs (0.5 kg)
AAP	0.1 lbs (0.1 kg)
MAAP	0.1 lbs (0.1 kg)
Flex55	0.1 lbs (0.1 kg)
Regulatory compliance	CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Class A, RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     Specifications are subject to change without notice.
(5180-D3)
