Extron ECM S10 Partition Sensor

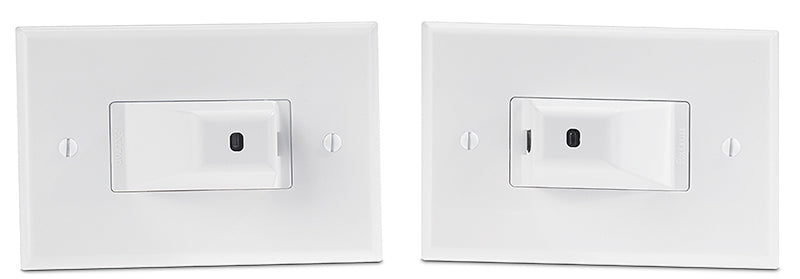

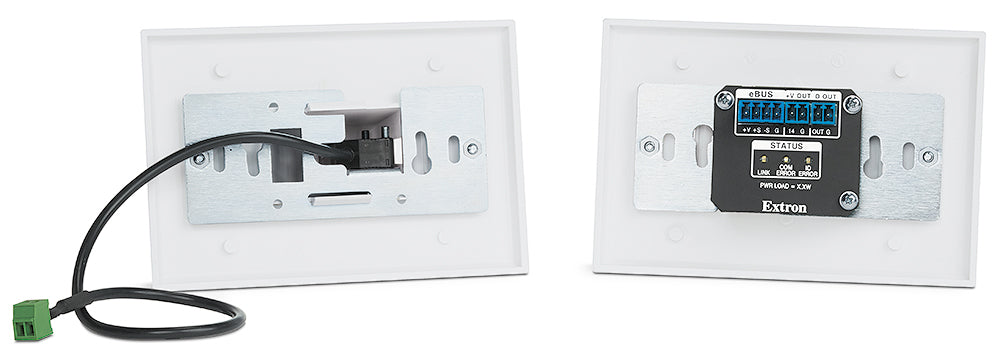

The Extron ECM S10 is a partition sensor set designed to automate AV system behavior based on the position of a movable wall. The set connects to any Extron Pro Series device equipped with a digital I/O or eBUS port. It uses an infrared beam to sense the position of a movable partition wall within divisible rooms. The ECM S10 receiver offers a digital output port and a 14 VDC output to provide power to the transmitter. For convenient integration, eBUS control modules, like the ECM S10 are linked to the control processor or to other eBUS devices using a single cable that carries both power and communication. The ECM S10 transmitter and receiver each mount into a US single gang, EU, or MK junction box and include white oversized decorator-style wallplates.

Features

• Partition sensor set that automates system behavior based on the position of a moveable wall within divisible rooms
• eBUS port — Allows for easy connection to an eBUS device or IPCP Pro control processor.
• Digital output — Allows for integration with non-eBUS compatible systems that have digital I/O ports.
• 14VDC output on receiver is used to power the transmitter
• DIP switches are used to set unique eBUS device addresses and minimize setup time
• eBUS-enabled receiver connects to the control processor using a single cable that carries both power and communication
• Compatible with all Extron IPCP Pro control processors and other products featuring a digital I/O
• Various eBUS diagnostic LEDs provide connection, communication, and ID status for troubleshooting
• Receiver module has adjustable sensitivity and logic output state controls
• Removable captive screw connectors allow for quick installation
• Transmitter and Receiver can be positioned up to 10 feet (3 meters) apart
• Includes two white oversized decorator-style wallplates and mud rings
• Mounts in US single gang, EU, or MK junction boxes

ECM S10
eBUS control interface
eBUS control	(1) 3.5 mm captive screw connectors, 4 pole
eBUS pin configuration	+V = +12 VDC; +S = + signal; -S = - signal; G = ground
Recommended cable type	Extron STP20-2/1000 or STP20-2P/1000 cable
Maximum system cable length	1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the ECM S10 Setup Guide or eBUS Technology Reference Guide for details.
ECM S10 — Receiver
Digital output
Connectors	(1) 3.5 mm captive screw connectors, 2 pole
Low logic	0 VDC ~ 2.0 VDC
High logic	2.8 VDC ~ 5.0 VDC
Hysteresis	0.8 VDC
Pullup	fixed
Power output
Connector	(1) 3.5 mm captive screw connectors, 2 pole provides power to transmitter
Power output	14 VDC @ 100 mA
Detecting Distance	10 feet (3.0 m)
Operating angle	Transmitter/Receiver 3-15 degrees
ECM S10 — Transmitter
Light source	Infrared LED (870 nm wavelength)
Software and control options
Configuration software	Global Configurator Plus and Professional
Programming software	Global Scripter
Control apps	Extron Control
Utilities	Toolbelt
General
Power
Transmitter	14 VDC (supplied by ECM S10 receiver)
Receiver	12 VDC (Power is supplied by an Extron IPCP Pro series control processor or optional power supply)
Power consumption	1.0 watts (transmitter and receiver combined)
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 35% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 35% to 85%, noncondensing
Cooling	Convection, no vents
Thermal dissipation	2.6 BTU (transmitter and receiver combined)
Mounting
Rack mount	No
Furniture or wall mount	Yes, in a standard 1-gang US, EU or MK junction box. Oversized 1-gang Decorator style faceplate (included).
Enclosure type	Plastic faceplate, metal mounting plate
Enclosure dimensions
Faceplate	(Transmitter and Receiver) Oversized 1-gang Decorator style (included) 5.25" H x 3.50" W (134 mm H x 89 mm W)
Device
Transmitter	4.20" H x 1.75" W x 1.66" D (108 mm H x 45 mm W x 42 mm D)
Receiver	4.20" H x 1.75" W x 2.46" D (108 mm H x 45 mm W x 63 mm D)
Product weight
Transmitter	0.15 lb (0.07 kg)
Receiver	0.20 lb (0.09 kg)
Regulatory compliance	CE, c-UL, C-Tick, FCC Class A, ICES, RoHS, UL, VCCI class A, WEEE
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4783-D3)
