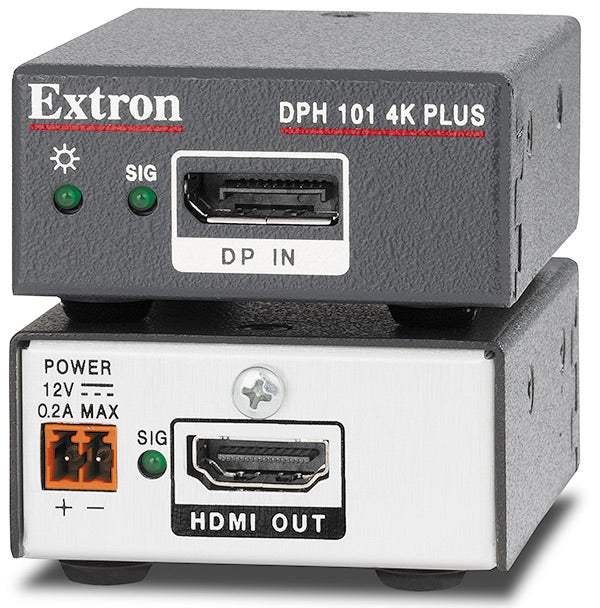

Extron DPH 101 4K PLUS DisplayPort F-HDMI F, Active Adapter

The Extron DPH 101 4K PLUS is a compact one input, one output active DisplayPort to HDMI adapter. It accepts signals up to 4K/60 @ 4:4:4. Incoming DisplayPort signals are equalized up to 12 feet (3 meters) at the input to compensate for signal loss. The DPH 101 4K PLUS reconditions the outgoing signal, ensuring signal integrity up to an additional 12 feet (3 meters) from the output to the connected HDMI device. The active, one-way adapter can share a power supply with another Extron product, or use an optional 12V Extron Everlast™ power supply for standalone applications. The DPH 101 4K PLUS is ideal for AV applications that require the integration of DisplayPort sources into HDMI system designs.

Features

• Provides connectivity between DisplayPort sources and HDMI displays and peripherals
• Provides active conversion of DisplayPort signals to HDMI
• Equalizes incoming DisplayPort signals up to 12 feet (3 meters) to compensate for signal loss due to low quality cables or marginal sources
• Reconditions outgoing HDMI signals to ensure signal integrity up to 12 feet (3 meters) to the connected device
• Supports computer and video resolutions up to 4K/60 @ 4:4:4 with data rates up to 18 Gbps
• Complies with VESA Interoperability Guidelines
• HDCP compliant
• Passes EDID information from HDMI display to the source
• Supports 8-channel LPCM and HBR audio
• Supports Dual-Mode DisplayPort, Mini-DisplayPort, and Thunderbolt sources with appropriate cables or adapters
• LED indicator for signal presence and power — Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
• Compact 1” (2.5 cm) high, 2.2” (5.6 cm) wide enclosure for discreet placement and mounting in space-constrained environments — Includes fabric hook and loop tape for easy installation in any application.
• New Shares a 12 VDC power supply with another Extron product; optional external Extron Everlast™ power supply, part #70‑1175‑01 — Provides worldwide power compatibility with high demonstrated reliability and low power consumption.

DPH 101 4K Plus
specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2
Color bit depth1	8, 10, or 12 bits per color
Signal Type	DisplayPort 1.2, HDMI 2.0, HDCP 1.4, HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at http://www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 Mhz
Resolution range	Up to 1920 x 1200, 1080p @60 Hz 12-bit color 4K (4096 x 2160) @60 Hz 4:4:4, UHD (3840 x 2160) @60 Hz 4:4:4
Formats	RGB and YCbCr digital video
Standards	DisplayPort 1.2, HDMI 2.0, HDCP 1.4, HDCP 2.3
Video input
Number/signal type	1 DisplayPort
Connector	Female DisplayPort
Input cable length	Up to 12' (3.7 m)
Horizontal frequency	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency	24 Hz to 240 Hz for resolutions up to 18 Gbps
Video output
Number/signal type	1 HDMI
Connector	Female HDMI type A
Video output power for active cables	1.1 W max. for the HDMI port
Output cable length	Up to 12' (3.7 m)
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.0 A, 12 watts
NOTE     The external power supply is not included.
NOTE     Power can be shared with a connected Extron HDMI switcher or similar device (see the DPH 101 4K Plus Setup Guide for details).
Power consumption
Device	0.9 watts
Device and power supply	1.4 watts
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation
Device	1.9 BTU/Hr
Device and power supply	3.6 BTU/Hr
Mounting	Yes, with optional mounting brackets
Enclosure type	Metal
Enclosure dimensions	1.0" H x 2.2" W x 3.0" D (2.5 cm H x 5.6 cm W x 7.6 cm D)
Product weight	0.1 lbs (0.05 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance	CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
NOTE     Specifications are subject to change without notice.
(5139-D5)
