Extron DA4 HD 4K PLUS Four Output 4K/60 HDMI DA

The Extron DA HD 4K PLUS Series are HDCP 2.3 compliant distribution amplifiers for HDMI signals at resolutions up to 4K/60 @ 4:4:4 chroma sampling. They support data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control, along with integrator-friendly features such as automatic input cable equalization, automatic color bit depth management, and selectable output muting. They also feature Extron EDID Minder^® and Key Minder^® technologies to maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted content. The DA HD 4K PLUS Series distribution amplifiers are available in sizes from two to six outputs, and are ideal for applications that require reliable distribution of a single HDMI source signal to multiple displays.

To enhance and simplify integration, the DA HD 4K PLUS Series offers many integrator-friendly features. Input cable equalization restores and reshapes incoming HDMI signals, reducing the need for additional signal conditioning equipment by compensating for weak source signals or signal loss from a long input cable. Color bit depth is automatically adjusted based on the display EDID, which prevents color compatibility conflicts between source and display. Also, outputs can be muted independently via RS‑232, allowing content to be previewed on a local monitor.

The DA HD 4K PLUS distribution amplifiers provide immediate visual confirmation of HDCP authentication and signal presence for each port via front panel LED indicators. If HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal provides immediate visual notification that protected content cannot be viewed on that display. HDCP authorization is user-selectable, allowing the unit to appear HDCP compliant or non‑HDCP compliant to the connected source. This is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. The DA HD 4K PLUS Series distribution amplifiers also provide +5 VDC, 250 mA on each output for powering peripheral devices such as an Extron HD 4K 101 Plus cable equalizer.

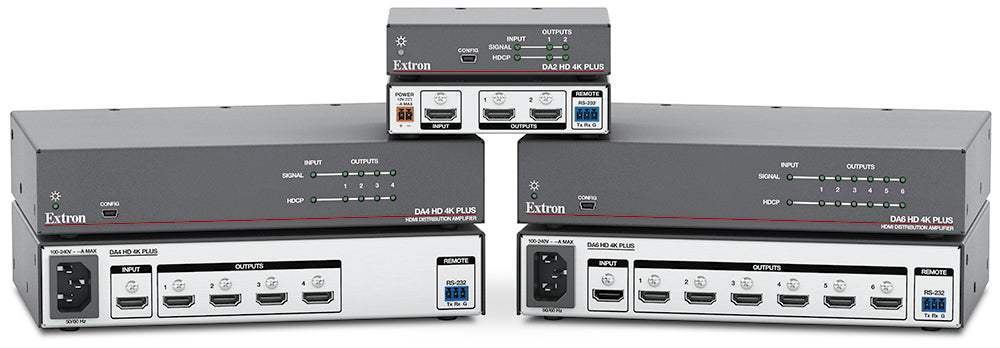

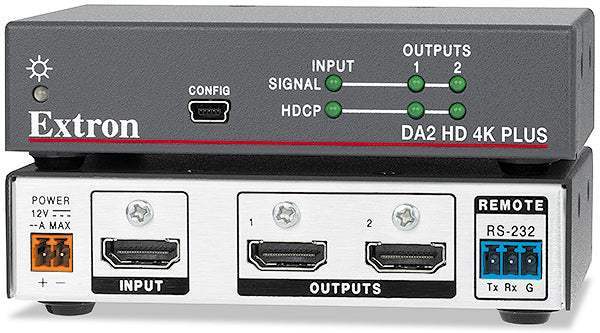

The DA2 HD 4K PLUS is housed in a 1" (2.5 cm) high, quarter rack width metal enclosure that can be mounted in a rack or discreetly installed beneath a desk. It includes an external, universal power supply for worldwide power compatibility. The DA4 HD 4K PLUS and DA6 HD 4K PLUS are housed in 1U high, half rack width metal enclosures, are rack‑mountable, and are equipped with internal universal power supplies.

Features

• Input: One female HDMI type‑A connector
• Output: Two, four, or six female HDMI type‑A connectors
• Supports computer and video resolutions up to 4K/60 @ 4:4:4
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
• CEC – Consumer Electronics Control capability — Standard, built‑in CEC commands can be triggered by a control system to operate displays or other AV devices connected over HDMI. The ability to control specific functions, such as power on/off, input selection, or volume level, is dependent on implementation by the device manufacturer.
• Support for HDR – High Dynamic Range video — Enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
• HDCP 2.3 compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
• Automatic input cable equalization — Actively conditions incoming HDMI signals to compensate for signal loss when using long cables, low quality cables, or source devices with poor signal output.
• Comprehensive EDID management — Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.1 software is available for advanced EDID editing and creating custom EDID files.
• EDID Minder^® automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display.
• Key Minder^® continuously verifies HDCP compliance — Key Minder authenticates and maintains continuous HDCP encryption between all input and output devices to enable simultaneous distribution of a single source signal to two or more displays.
• Selectable output muting via RS‑232 — Provides the capability to mute one or all outputs at any time. This allows content to be viewed on a local monitor prior to appearing on the main presentation display.
• User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non‑HDCP mode.
• HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
• Automatic color bit depth management — The DA HD 4K PLUS Series automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and displays.
• HDMI to DVI Interface Format Correction — Automatically reformats HDMI source signals for output to a connected DVI display.
• HDCP authentication and signal presence LED indicators — Front‑panel LED indicators for signal presence and HDCP authentication provide real‑time feedback and monitoring of key performance parameters.
• Provides +5 VDC, 250 mA power on each output for external peripheral devices
• RS‑232 control port — Enables the use of serial commands for integration into a control system. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.
• Front panel USB configuration port — Enables easy configuration without having to access the rear panel.
• Easy setup and commissioning with Extron’s PCS – Product Configuration Software — Conveniently configure multiple products using a single software application.
• Rack‑mountable, metal enclosure — The DA HD 4K PLUS Series two-output model features a 1” (2.5 cm) high, quarter rack width enclosure. Four and six‑output models feature a 1U, half rack width enclosure.
• DoDIN APL Approved Product available — This product is available as a Department of Defense Information Network Approved Product version upon request. Please contact Extron with your specific needs.
• Includes LockIt^® cable lacing brackets — Securely fastens HDMI or USB C^® cables to a device, eliminating risk of disconnection.
• Extron Everlast Power Supply — Provides worldwide power compatibility with high reliability and low power consumption for reduced operating costs. Two-output model requires external power supply, included, replacement part #70-1175-01. Four and six-output models are equipped with a 100-240 VAC, 50/60 Hz, internal universal power supply.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

DA HD 4K PLUS Series
specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8, 10, or 12 bits per color
Signal Type	HDMI 2.0b, HDCP 1.4 and 2.3
Max. video data rate	18.0 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator (http://www.extron.com/8Kdatarate) to determine video parameters supported by this data rate.
Video
Maximum data rate	18.0 Gbps
Maximum pixel clock	600 MHz
Resolution range	Up to 4K (4096x2160) @ 60 Hz, UHD (3840x2160) @ 60 Hz, 1920x1200 or 1080p @ 60 Hz
Color bit depth	8, 10, or 12 bits — subject to the max data rate
Formats	RGB and YCbCr digital video
Standards	DVI 1.0*, HDMI 2.0b, HDCP 2.3, HDCP 1.x
HDR	HDR10, HDR10+, and Dolby Vision
NOTE     *Appropriate DVI-D to HDMI cables or adapters are required for DVI signal input/output.
NOTE     Extron strongly recommends compatibility testing while designing, and before installing any 3D or HDR (high dynamic range) system.  There are several unique 3D and HDR formats in use by source devices and display manufacturers.  The level of 3D and HDR product support is governed by pixel clock, signal format, and communication between source and sink devices.  Please contact an Extron Application Engineer for more information.
Video input
Number/signal type	1 single link HDMI (or DVI-D*)
Connectors	1 female 19-pin HDMI type A
Input cable length	Up to 15 feet (4 meters) with a 600 MHz signal (100 feet (30 meters) with 165 MHz)
Horizontal frequency	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency	24 Hz to 240 Hz for resolutions up to 18 Gbps
Video output
Number/signal type
DA2 HD 4K PLUS	2 single link HDMI (or DVI-D*)
DA4 HD 4K PLUS	4 single link HDMI (or DVI-D*)
DA6 HD 4K PLUS	6 single link HDMI (or DVI-D*)
Connectors
DA2 HD 4K PLUS	2 female 19-pin HDMI type A
DA4 HD 4K PLUS	4 female 19-pin HDMI type A
DA6 HD 4K PLUS	6 female 19-pin HDMI type A
Video output power for active cables
DA2 HD 4K PLUS	2.2 W total power for all HDMI ports, 1.1 W per HDMI port max
DA4 HD 4K PLUS	4.3 W total power for all HDMI ports, 1.1 W per HDMI port max
DA6 HD 4K PLUS	6.6 W total power for all HDMI ports, 1.1 W per HDMI port max
Audio Input
Number/signal type	1 HDMI, embedded
Connector	1 female HDMI type A
HDMI pass-through	LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats
Audio output
Number/signal type
DA2 HD 4K PLUS	2 HDMI, embedded
DA4 HD 4K PLUS	4 HDMI, embedded
DA6 HD 4K PLUS	6 HDMI, embedded
Connectors
DA2 HD 4K PLUS	2 female 19-pin HDMI type A
DA4 HD 4K PLUS	4 female 19-pin HDMI type A
DA6 HD 4K PLUS	6 female 19-pin HDMI type A
Communications
Serial control port	RS-232, 3.5 mm, 3-pole captive screw connector
Baud rate and protocol	9600 baud, 8 data bits, 1 stop bit, non-parity
Serial control pin configuration	1 = Tx, 2 = Rx, 3 = GND
USB control port	1 front panel, female, mini USB B
USB standards	USB 2.0
Program control	Extron Simple Instruction Set (SIS™)
General
Power
DA2 HD 4K PLUS	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts
DA4 HD 4K PLUS and DA6 HD 4K PLUS	Internal Input: 100-240 VAC, 50-60 Hz
Power consumption
DA2 HD 4K PLUS
Device	3.6 watts
Device and power supply	4.8 watts
DA4 HD 4K PLUS	8.6 watts
DA6 HD 4K PLUS	10.6 watts
Ambient temperature/humidity	Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation
DA2 HD 4K PLUS
Device	10.2 BTU/hr
Device and power supply	14.3 BTU/hr
DA4 HD 4K PLUS	25.5 BTU/hr
DA6 HD 4K PLUS	30.5 BTU/hr
Mounting
Rack mount	Yes, with optional rack shelf kit
Enclosure type	Metal
Enclosure dimensions
DA2 HD 4K PLUS	1.00" H x 4.30" W x 3.00" D (one quarter rack wide) 25 mm H x 109 mm W x 76 mm D (depth excludes connectors)
DA4 HD 4K PLUS and DA6 HD 4K PLUS	1.75" H x 8.75" W x 6.00" D (1U high, half rack wide) 44 mm H x 222 mm W x 152 mm D (Depth excludes connectors)
Product weight
DA2 HD 4K PLUS	0.35 lbs (0.2 kg)
DA4 HD 4K PLUS and DA6 HD 4K PLUS	1.6 lbs (0.7 kg)
Regulatory compliance	CE, c-UL, UL, C-Tick, FCC Class A, ICES, VCCI, AS/NZS, RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6065-D10)
