Extron Cable Cubby 1402 Black AC Module Not Included

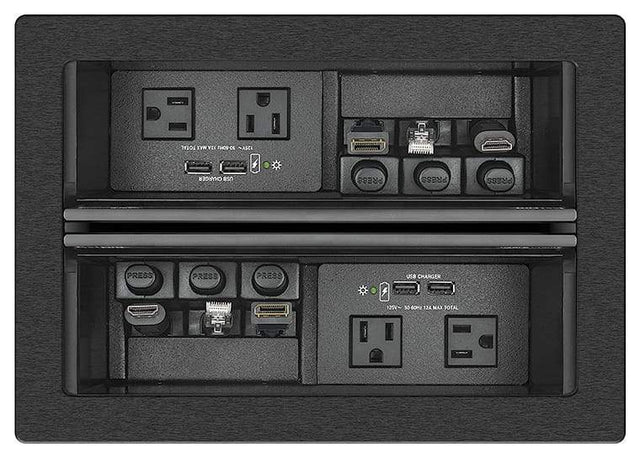

The Cable Cubby^® 1402 is a double-sided, furniture-mountable cable access enclosure for AV connectivity and AC power. The redesigned enclosure is 2” shorter than the previous model, providing increased under table clearance. It is ideal for applications where a central enclosure is required. Each side of the enclosure accommodates one AC or AC+USB series power module and includes mounting brackets for cable retraction modules, AV cables, or AAP™ AV Connectivity Modules. Cables and AAP modules can be installed or serviced from the top of the enclosure. The Cable Cubby 1402 features an integrated clamp system that secures the enclosure without additional parts or tools. Power modules are available for the US, Europe, and other major world markets. The Cable Cubby 1402 is available in a black anodized or brushed aluminum finish.

The Cable Cubby 1402 is equipped with a number of Extron-exclusive, integration friendly features for fast assembly and installation. The integrated clamp system quickly secures the enclosure to the furniture surface without tools. Simply install the enclosure in the opening, slide the clamp up to the surface, and then rotate the cam to lock the enclosure in place. A lid damper ensures smooth, quiet operation that complements installations in high end conference rooms and boardrooms. The enclosure’s shortened height beneath the table is ideal for semi-permanent folding tables in modular spaces. The Cable Cubby 1402 includes standard connectivity brackets for mounting up to three Retractor modules, three AAP modules, or up to eight AV cables, per side. The AV connectivity brackets can be positioned to the left or right of the selected AC power module. For design flexibility, the optional Cable Bracket Kit and Retractor Bracket Kit allow AV cables or Retractor modules to be mounted to the left and right of the selected AC power module. The brackets are sold in pairs; each bracket supports four AV cables or two Retractor modules.

The Cable Cubby 1402 US model includes two AC 104 power modules. They feature two unswitched US outlets and a 12 A circuit breaker for current over-load protection per power module. In addition to the attached 9.5’ power cord, two 2’ power cords are included to power optional AV equipment and other devices on each power module.

The enclosure’s patented modular design allows cables and AAP modules to be installed or serviced from the top of the enclosure after it is installed. The Cable Pass-Through Bracket features a unique, split-ring design that facilitates cable installation while eliminating the need for separate cable grommets. AC Power Modules are available for the US, Europe, and other major world markets. Most AC 100 Series AC Power Modules provide two unswitched AC outlets. An available Multi-Region AC outlet is compatible with a variety of AC plug types. To support the growing use of laptops, smartphones, and tablets in AV presentation environments, the optional AC+USB Power Modules provide one or two AC power outlets, and two USB Type‑A or one USB Type‑A and one USB Type‑C^® power outlets for powering or charging. The AC and AC+USB US AC modules include a 12 A circuit breaker for current over-load protection. US Cord models feature an attached 9.5’ power cord and two 2’ power cords to power optional AV equipment and other devices. Cable Cubby enclosures are UL/c‑UL listed and CE compliant. Installation routing templates and other accessories are also available.

To quickly customize AC power and AV connectivity selections for a Cable Cubby 1402 installation, the Cable Cubby Builder is an interactive tool that guides the user through the selection of AC power modules, AV connectivity, cables, and installation accessories. As you build your Cable Cubby, a bill of materials is prepared automatically. When you’re finished, the Builder allows you to review your Cable Cubby and make any last minute changes before placing your order (dealer login required).

Included Accessories

*Note: For horizontal mounting applications, Retractor Horizontal Mounting Bracket Kit, part #70‑678‑00, is required.

Features

• Accommodates one AC or AC+USB power module, plus three Retractor modules, eight AV cables, or three AAP™ AV Connectivity Modules, per side
• Slim, double -sided enclosure is 2” (51 mm) shorter than previous model, making it ideal for conference tables, desks, lecterns, and other work areas where space is at a premium — The low profile is ideal for semi-permanent folding tables in modular spaces.
• Patented modular design for fast assembly and serviceability — AV connectivity can be installed or serviced from the top of the enclosure after it is installed.
• Retractor Bracket, Cable Pass-Through Bracket, and AAP Bracket included; Retractor modules, cables, and AAP modules sold separately
• Retractor Brackets hold three Retractor or Retractor XL cable retraction modules
• Optional Retractor cable retraction system supports most AV and data signal types
• Connectivity Bracket supports up to three single-space AAP modules
• Cable Pass-Through Bracket supports up to eight AV cables
• AC Power and AC+USB power modules are available for US, Europe, and other major world markets
  - AC+USB 200 Series power modules feature up to two AC outlets and two USB Type‑A outlets
  - AC+USB 300 Series power modules feature up to two AC outlets, one USB Type‑C^®, and one USB Type‑A outlets
• Available multi-region AC outlet is compatible with a variety of AC plug types
• Cable Cubby 1402 US enclosure is UL/c-UL listed
• All Cable Cubby 1402 enclosures are CE compliant
• Compatible with Show Me^® Cables — Show Me cables provide convenient connectivity and user input selection and control for Collaboration Systems.
• New US model includes an attached 9.5' power cord and two 2’ cords to power optional AV equipment and other devices
• Integrated side clamps secure enclosure to the furniture surface — Cable Cubby can be secured in place without additional parts or tools.
• Low-profile lids and full-width cable pass-through for convenient access to AV and power — Integrated damper provides smooth, quiet operation.
• Top surface is available in a black anodized or brushed aluminum finish
• Installation routing template available, part #70‑1042‑80
• Optional Retractor Bracket allows two Retractor cable retraction modules to be mounted at the outer edges of the enclosure; sold in pairs
• Optional Cable Pass-Through Bracket allows four AV cables to be mounted at the outer edges of the enclosure; sold in pairs
• Cable Cubby Builder is available at www.extron.com/cablecubbybuilder — Intuitive online tool for enclosure selection, pricing, and cable and connectivity selection.
• Dimensions: 10.57" L x 7.42" W x 4.41” D (269 mm L x 189 mm W x 113 mm D)

Cable Cubby® 1402
General
Power supply (optional)
US AC module	125 VAC, 50-60 Hz, 12 A max. total
Mounting	Furniture mount
Min./max. table thickness	0.50" to 2.50" (13 mm to 63 mm)
Enclosure type	Metal
Enclosure dimensions
Top plate (outer rim)	10.57" W x 7.42" D (269 mm W x 189 mm D)
Surface cutout (inside rim)	10.00" W x 6.75" D (254 mm W x 172 mm D)
Enclosure depth	4.46" H (113 mm H)
Product weight
Enclosure only	4.1 lbs (1.9 kg)
With AC modules	7.9 lbs (3.6 kg)
Regulatory compliance	CE, RoHS, WEEE, NOM
US configuration*	UL, c-UL
NOTE     *The UL listing is only valid when the Cable Cubby contains the US AC power module.
Product warranty	3 years parts and labor
NOTE     Specifications are subject to change without notice.
(6259-D2)
