Extron AC+USB 200 Series Power Modules Power Modules for Cable Cubby Series and Select TouchLink Enclosures

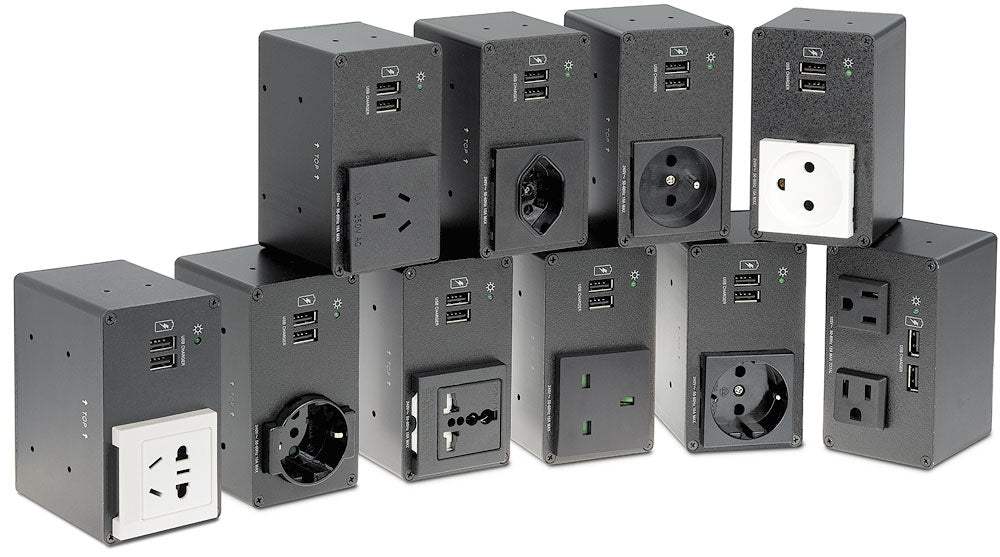

Extron AC+USB 200 Series Power Modules for Cable Cubby^® Series and select TouchLink^® enclosures are available with discrete AC power outlets for the US, Europe, and other major world markets. They feature one or two unswitched AC power outlets, and two USB Type-A power outlets. The AC+USB 244 US provides +5 VDC up to 4 A / 20 watts of USB power; while the non-US modules provide +5 VDC up to 3.0 A / 15 watts of USB power for charging mobile devices such as laptops, smartphones, and tablets. AC+USB 244 US cord and conduit US power modules are UL/c-UL listed. Extron AC 100 Series Power Modules and AC+USB 300 Series Power Modules are available for applications where AC or AC with USB Type-A and USB Type-C^® power outlets are needed.

AC+USB 244 US power modules feature a 12 A circuit breaker for current overload protection and are UL/c-ul listed, meeting applicable safety standards when installed properly. Both US models have two unswitched AC outlets and two USB Type-A outlets powered by an integrated power supply. Each module is equipped with a 9.5' (2.90-meter) power cord and two 2' US AC outlet cables on the bottom of the module to power optional devices or a 6' (1.83-meter) length of 3/8" flexible conduit with a 6" (15-cm) pigtail of three-wire cable for applications requiring a hard-wired conduit to AC power. These power modules have a total of up to 4 A / 20 watts of USB power.

AC+USB 200 non-US power modules feature one unswitched AC outlet and are equipped with an IEC power connector. They provide +5 VDC up to 3.0 A / 15 watts of power to two USB power outlets and can deliver full power to either USB outlet when only one device is connected. The Multi-Region model accepts a variety of AC plug types.

AC+USB 200 Series USB power outlets receive power from highly reliable, Extron-designed and engineered power supplies. The US model features an integrated Extron power supply for convenient installation. All non-US models include an Extron external standalone power supply that meets the Level V standard for energy efficiency and a ZipClip 100 Mounting Kit. ZipClip 100 Mounting Kits securely mount Extron power supplies onto most surfaces, including under tables and inside lecterns.

Features

• For use with Cable Cubby^® Series and select TouchLink^® enclosures
• AC power outlets available for US, Europe, and other major world markets
• New AC+USB 244 US provides a total of up to 4 A / 20 watts of power
• Non-US versions provide two 5 VDC USB power outlets and up to 3.0 A / 15 watts of power — The USB power outlets can deliver full power to either USB outlet when only one device is connected.
• Available multi-region AC outlet is compatible with a variety of AC plug types
• US models feature an easily accessible 12 A circuit breaker for current overload protection

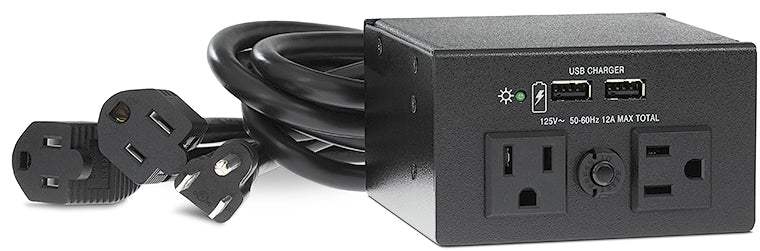

• New UL-listed US cord model features an attached 9.5' (2.90‑m) AC power cord and two 2' US AC outlet cables on the bottom of the module to power optional AV devices; part # 60‑1890‑01

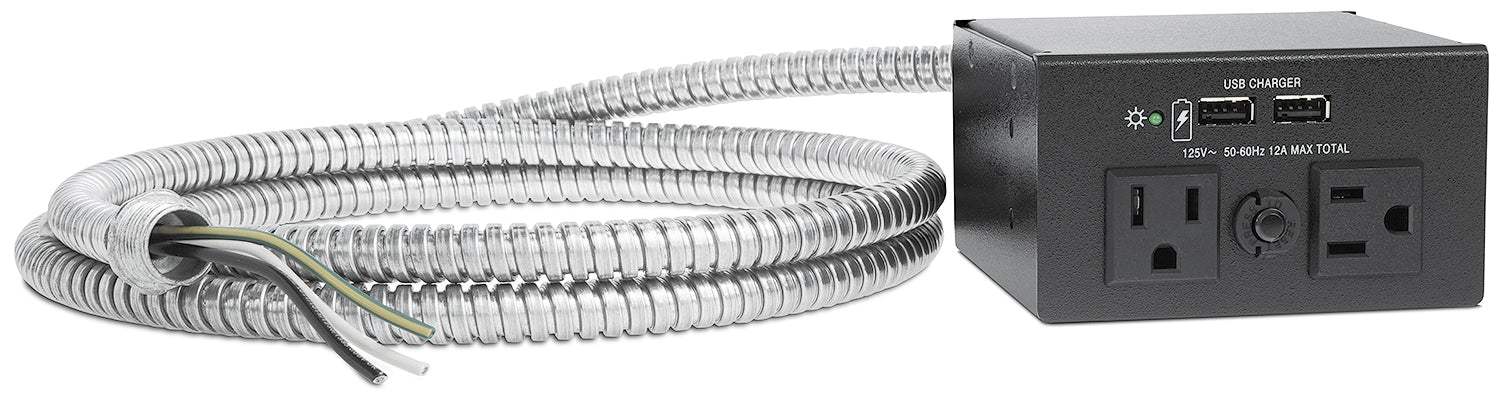

• UL-listed US conduit model features an attached 6' (1.83‑m) length of 3/8" flexible conduit with a 6" (15‑cm) pigtail of three-wire cable; part # 60‑1890‑20
• Non-US models include a ZipClip 100 Mounting Kit to securely mount an Extron power supply onto most surfaces, including tables and lecterns
• AC+USB 244 US models feature an internal Extron Everlast™ power supply — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption.
• Non-US models feature a highly reliable, energy-efficient external universal power supply included, replacement part # 70‑1174‑01 — Provides worldwide power compatibility with high reliability and low power consumption for reduced operating costs.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

Specs

Also see our  Specs in PDF format

AC+USB 200 Power Module Series for Cable Cubby Series/2
General
Power output
AC (US model)	125 VAC. 50-60 Hz, 12 A max total
AC (non-US models)	240 VAC, 50-60 Hz, 10 A max total
USB (US model)	5 VDC, 4.0 A, 20 watts total; two Type A connectors
USB (non-US models)	5 VDC, up to 2.4 A on a single port and up to 3.0 A total shared; two Type A connectors
USB power supply (non-US models)	External Input: 100-240 VAC, 50-60Hz Output: 12 VDC, 1.5 A
USB power consumption
US model	24.4 watts
Non-US models
Device	17.1 watts
Device and power supply	19.5 watts
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
USB thermal dissipation
US model
Device and internal power supply	18.5 BTU/hr
Non-US models
Device	8.1 BTU/hr
Device and power supply	16.3 BTU/hr
Mounting	Mountable into select Cable Cubby enclosures
Enclosure dimensions
US model	2.40" H x 4.20" W x 4.00" D (61 mm H x 107 mm W x 102 mm D) For US AC cord models: Allow an additional 2.50" (64 mm) depth to account for the attached AC power cord bend radius. For US AC conduit model: Allow an additional 5.00" (127 mm) depth to account for the attached flexible conduit bend radius.
Non-US models	2.40" H x 4.20" W x 2.99" D (61 mm H x 107 mm W x 76 mm D) For non-US AC cord models: Total allowable depth is dependent upon the detachable AC power cord being used. Cable bend radius can vary.
Material	Metal
Product weight
US AC cord model	2.5 lbs (1.1 kg)
US AC conduit model	2.4 lbs (1.1 kg)
Non-US models	2.2 lbs (1.0 kg)
Regulatory compliance	CE, c-UL, UL, RoHs, and WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty (non-US models)	7 years parts and labor
NOTE     Specifications are subject to change without notice.
(4233-D8)
