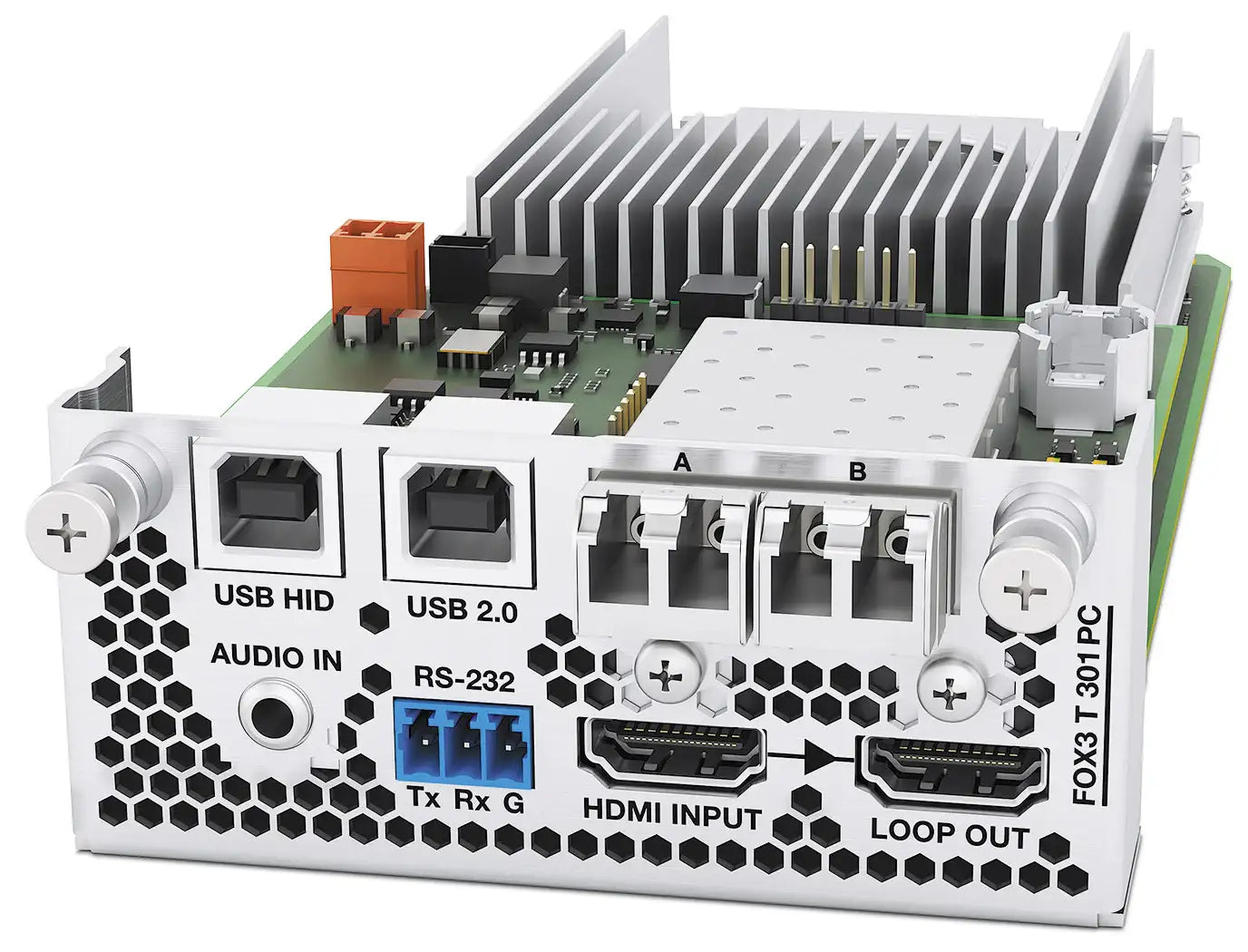

Extron 70-1190-11 FOX3 T 301 PC MM PowerCage Fiber Optic Transmitter for HDMI, USB, Audio, and Control

Lossless 4K/60 Transmitter - Multimode

The Extron FOX3 T 301 PC Fiber Optic Transmitter is a compact single-slot module designed for the PowerCage 411 enclosure that provides HDMI video, USB, stereo audio, and control signal extension over fiber. Engineered for exceptional high resolution image performance, it uses Extron all-digital technology to deliver perfect pixel-for-pixel, uncompressed transmission of images up to 4K/60 @ 4:4:4 over two fibers or mathematically lossless 4K/60 video over one fiber. The USB port supports compliant USB 3.0 to 1.0 devices, while the USB HID port applies device class filtering to restrict the device types to HID. Designed specifically for AV and KVM systems, the transmitter includes many integrator-friendly features such as Key Minder®, EDID Minder®, audio embedding, and real-time system monitoring.

Features

• Extends HDMI, USB, stereo audio, and RS-232 control signals very long distances over fiber optic cabling
• Supports mathematically lossless 4K video up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over one fiber
• Supports uncompressed 4K video up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over two fibers
• Supported HDMI 2.0 specification features include data rates up to 18 Gbps, Deep Color up to 12-bit, and 3D
• HDCP 2.3 compliant

Specs

FOX3 T 301/311/201 PC
specification
Frame rate3	24, 25, 30, 50, or 60 fps
Chroma sampling3	4:4:4, 4:2:2
Color bit depth2,3	8, 10, or 12 bits per color
Signal Type	HDMI 2.0, HDCP 2.3
Max. video data rate	18.0 Gbps
NOTE     1Supports lossless 4K video over one fiber or uncompressed 4K video over two fibers.   2Supports 12-bit color bit depth for uncompressed 4K video over two fibers. When using a FOX3 SR scaling receiver, the scaler must be in bypass mode to pass 4K video with a 12-bit color bit depth.   3Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
NOTE     The analog audio signal(s) is (are) digitized in the transmitter, sent through the fiber cable, and converted back to analog audio in the receiver.
NOTE     Optical data rate is 10 Gbps over one fiber and 20 Gbps over two fibers.
NOTE     These transceivers are class 1 laser products. They meet the safety regulations of IEC-60825.
Optical fiber interconnection between transmitter and receiver
Number/type	1 or 2 SFPs
Connectors	1, 2, or 3 LC connectors
Operating distance
Singlemode	20 km (12.4 miles) with singlemode (SM) cables
Multimode	500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables
NOTE     The system works with OM1, OM2, and OM3 fiber at reduced distances.
NOTE     Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Nominal peak wavelength	850 nm for multimode, 1310 nm for singlemode
Data rate	10.0 Gbps
Transmission power
Singlemode	-5.2 dBm, minimum
Multimode	-2.8 dBm, minimum
Maximum receiver sensitivity
Singlemode	-12.6 dBm, maximum
Multimode	-11.1 dBm, maximum
Optical loss budget
Singlemode	+7.4 dB, maximum
Multimode	+8.3 dB, maximum
Video
NOTE     Appropriate HDMI to DVI cables or adapters are required for DVI signal output.
Maximum data rate	18.0Gbps (6.0 Gbps per color)
Maximum pixel clock	594 MHz
Resolution range	640x4808 up to 4096x21601,2,3,4,5,6,7,8, 480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9, 2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8 123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz, 9120 Hz
Frame rate	24, 25, 30, 50, 60, or 120 fps
Color space	4:4:4, 4:2:2
Color bit depth	8, 10, and 12 bits per color
Signal Type	DVI 1.0, HDCP 1.4, HDMI 2.0, HDCP 2.3
Horizontal frequency	24 kHz to 135 kHz
Vertical frequency	24 Hz to 120 Hz (depending on the resolution)
Format	RGB and YCbCr digital video
Video input and loop out
Number/signal type	1 HDMI input 1 HDMI loop out
Connectors	1 female HDMI input type A 1 female HDMI loop out type A
Power for active cables	1.1 watts
Audio
Gain	Unbalanced output: -6dB
Frequency response	20 Hz to 20 kHz, ±0.5 dB
THD + Noise	<0.03% @ 20 Hz to 20 kHz at maximum output
S/N	>90 dB at maximumintput (7 dBV), (unweighted)
CMRR	65 dB @ 20 Hz to 20 kHz
Stereo channel separation	>80 dB @ 1 kHz to 20 kHz
Bit depth	16, 20, 24
Sampling rate	48 kHz
Audio input
Number/signal type	1 digital audio, de-embedded from HDMI (2-CH, PCM only) or 1 analog stereo, unbalanced
Connectors	1 female HDMI (shared with video input) (1) 3.5 mm mini stereo jack, 2 channels; top (L), ring (R), sleeve ground)
Source formats	2-CH LPCM
Impedance	≥10k ohms, DC coupled
Nominal level	-10 dBV (316 mVrms)
Maximum level	+7 dBV unbalanced
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Communications
Program control	Extron Product Configuration Software Extron Simple Instruction Set (SIS™)
Pass-through port	(1) 3.5 mm captive screw connector, 3-pole
Pass-through baud rate	9600 to 115,200 baud
Pass-through pin configuration	1 = Tx, 2 = Rx, 3 = GND
USB extension (USB)  — FOX3 T 301 PC and FOX3 T 311 PC only
USB standards	USB 2.0, USB 1.1, USB 1.0 compatible
USB data rates	Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480Mbps)
Data transfer types	Bulk, control, interrupt, and isochronous
USB host ports
FOX3 T 301 PC
Number/signal type	1 USB HID 1 USB 2.0
Connectors	2 USB type B, female
Maximum built-in USB hubs	1
Minimum built-in USB hubs	1
FOX3 T 311 PC
Number/signal type	1 USB HID
Connector	1 USB type B, female
Maximum built-in USB hubs	1
Minimum built-in USB hubs	1
General
Power supply	Internal Powered by the PowerCage 411 Enclosure
Power consumption
FOX3 T 201 PC	17.8 watts
FOX3 T 301 PC	18.2 watts
FOX3 T 311 PC	18.2 watts
Ambient temperature/humidity	Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +104°F (0 to +40°C) / 10% to 90%, noncondensing
Cooling	Fans, front to back within the PowerCage 411 enclosure
Thermal dissipation
FOX3 T 201 PC	59.8 BTU/hr
FOX3 T 301 PC	61.3 BTU/hr
FOX3 T 311 PC	61.1 BTU/hr
Module dimensions	Each fits a single slot opening in a PowerCage 411 enclosure 1.6” H x 3.5” W x 8.0” (2.5 cm H x 22.2 cm W x 20.3 cm D) (Depth excludes connectors.)
Product weight
FOX3 T 201 PC	0.9 lbs (0.4 kg)
FOX3 T 301 PC	0.9 lbs (0.4 kg)
FOX3 T 311 PC	0.9 lbs (0.4 kg)
Regulatory compliance	CE, c-UL, C-tick, FCC Class A, FSA Class 1, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE.
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6196-D7)
