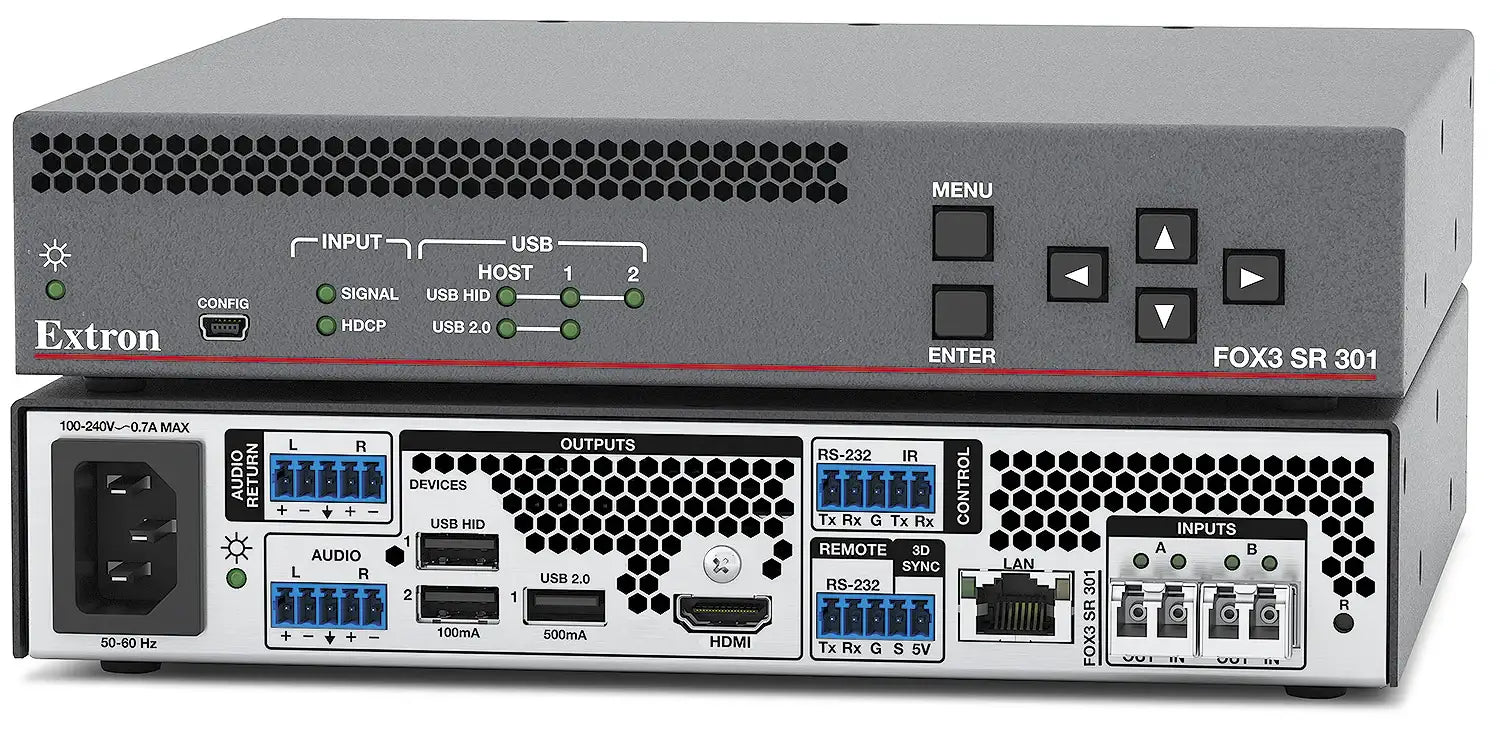

Extron 60-1749-21 FOX3 SR 301 MM Fiber Optic Scaling Receiver for HDMI, USB, Audio, Control, and 3D Sync

Lossless 4K/60 Scaling Receiver - Multimode

The Extron FOX3 SR 301 Fiber Optic Scaling Receiver provides long-haul transmission of HDCP-compliant HDMI video, USB, audio, RS-232 control, IR control, and 3D sync signals over fiber optic cabling. Engineered for exceptional high-resolution image performance, it uses Extron all-digital technology to deliver perfect pixel-for-pixel, uncompressed transmission of images up to 4K/60 @ 4:4:4 over two fibers or mathematically lossless 4K/60 @ 4:4:4 over one fiber. The USB port supports USB 3.0 to 1.0 devices while the USB HID port applies filtering to restrict the device types to HID. Designed specifically for AV and KVM systems, the scaling receiver also includes many integrator-friendly features such as Key Minder^®, audio de-embedding, Ethernet monitoring and control, and real-time system monitoring.

Uncompromised Image Quality

Supporting data rates up to 18 Gbps, the FOX3 SR 301 is designed to extend uncompressed video images up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over two fibers or mathematically lossless video images over one fiber, making it ideal for mission-critical applications or any environment that requires exceptional high-resolution imagery. Maintaining a 60 Hz frame rate with a 4:4:4 color space provides smooth frame transitions in full-motion video and ensures the details of high-quality computer images, such as CAD drawings, are preserved.

USB Signal Extension

The FOX3 SR 301 Receiver also supports USB 3.0, 2.0, 1.1, 1.0, and HID signal extension, eliminating the need for additional IP network drops, equipment, software, drivers, or USB extenders. Integrated USB signal extension enables connection to peripheral devices over the same fiber optic cable as video and audio, making it ideal for KVM - Keyboard, Video, and Mouse applications. This simplifies integration by avoiding IT-specific design criteria that might conflict with the needs of KVM switching in professional AV installations.

Exclusive Vector 4K Scaling Technology

The FOX3 SR 301 delivers computer and video resolutions at selectable output rates up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling. The integrated Extron Vector^TM 4K scaling technology delivers best-in-class image upscaling and downscaling using exclusive, high-precision processing algorithms for exceptional scaling performance. Selectable FILL and FOLLOW modes are available to ensure the proper aspect ratio of the output. FILL mode provides full-screen output, while FOLLOW mode preserves the original aspect ratio of the input signal. Additionally, the color space and chroma sampling of the HDMI output can be automatically set to ensure compatibility with a connected HDMI display. The FOX3 SR 301 Scaling Receiver enhances the video performance of FOX3 Systems by providing the optimal output resolution to match the display and maximizes system compatibility by supporting a wide range of input video resolutions.

Engineered to Streamline Integration

The FOX3 SR 301 Receiver can be used with a FOX3 T 301 Transmitter in point‑to‑point applications or in combination with a FOX3 Series matrix switcher for an enterprise‑wide HDCP‑compliant distribution system of 4K/60 @ 4:4:4 HDMI video, USB, audio, RS‑232 control,  IR control, and 3D sync signals.

To simplify integration with digital sources and displays, the FOX3 SR 301 also features many integrator-friendly features such as Key Minder, HDCP Visual Confirmation, audio de-embedding, an analog audio return channel, and real-time system monitoring. Key Minder authenticates and maintains continuous HDCP encryption to support quick and reliable switching in professional AV environments while enabling simultaneous distribution of a single source signal to one or more displays. When an encrypted content is transmitted to a non-HDCP compliant display, a full-screen green signal is sent to the display for immediate visual confirmation that protected content can’t be viewed on that display.

Control Signal Extension and Device Management

The FOX3 SR 301 offers convenient local and remote system access for configuration, operation, and monitoring. The front panel USB configuration port enables system configuration without having to access the rear panel. The direct RS-232 and IR insertion ports extend control signals to remote devices over the fiber optic cable. Sources and displays can be controlled from either the transmitter or receiver end using either RS‑232 or IR signals. When used with a FOX3 Series matrix switcher, the remote RS-232 port can receive inserted control data from the matrix switcher for control of the connected device. The receiver also features a LAN port, enabling the receiver to be proactively monitored and managed over the network using standard TCP/IP protocols.

Multimode and Singlemode Models for Design Flexibility

The FOX3 SR 301 is available in multimode and singlemode models. The FOX3 SR 301 MM model supports multimode fiber at 850 nm, which is typically used within buildings or facilities with moderate‑range transmission distances. The FOX3 SR 301 SM supports singlemode at 1310 nm, offering long‑range transmission capability over extreme distances. It can be used in very large facilities such as airports and stadiums, and for connecting over very long distances between facilities such as university campuses. Because transmission of content is inherently secure and immune to outside interference, fiber applications are particularly favored in government, military, and medical environments. The receiver features industry-standard LC‑type connectivity. The 1U, half-rack width metal enclosure is designed for installation in professional AV environments.

Features

• Coming Soon Supports KVM System Configuration and Control in a FOX3 Matrix system — Requires a FOX3 Matrix with LinkLicense for KVM System Configuration and Control installed.
  • SmartGlide™ KVM Switching – Automatic, fast, and seamless keyboard and mouse switching as the mouse glides from one workstation display to the next.
  • Workstation On-Screen Display Control Panel – Pressing a keyboard hotkey sequence displays a pop-up menu that enables the user to switch keyboard and mouse inputs. Display and keyboard must be attached to a FOX3 SR series scaling receiver.
  • Supports up to four displays in 1x4 or 2x2 configurations
• Coming Soon On-Screen Display provides source information on the workstation display — When a source is connected to a FOX3 scaling receiver via a FOX3 matrix switcher, the receiver can be configured to display the source name.
• Receives fiber optic signals from FOX3 Series transmitters and provides scaled HDMI video, USB, stereo audio, RS-232 control, IR control, and 3D sync signals
• High-performance scaler provides selectable output resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling
• Supports mathematically lossless 4K video up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over one fiber
• Supports uncompressed 4K video up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over two fibers
• Supported HDMI 2.0 specification features include data rates up to 18 Gbps, Deep Color up to 12‑bit, and 3D
• HDCP 2.3 compliant
• Supports USB 2.0 to 1.0 devices and USB 3.0 devices that can operate at USB 2.0 data rates of up to 480 Mbps — Provides USB extension, allowing connection to peripheral devices over the same fiber optic cable as video and audio.
• Device class filtering on USB HID port restricts the range of device types to HID — Device class filtering prevents unauthorized downloading or uploading of content via the USB HID port in secure environments. The USB HID port is configured at the factory, such that device class filtering cannot be removed or altered in the field.
• HDMI audio de-embedding with analog stereo outputs — Digital HDMI audio is made available as a balanced or unbalanced analog stereo signal on captive screw connectors.
• Key Minder continuously verifies HDCP compliance for quick, reliable switching — Authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments.
• Analog audio return channel — Provides balanced return analog stereo audio input to support a remote audio source at the receiver.
• Bidirectional RS-232 and IR signal transmission over fiber optic cabling for AV device control — Bidirectional RS-232 and IR control pass-through enables a remote display to be controlled without the need for additional cabling. Two fibers are required for bidirectional communications.
• HDMI Protocol Security — Ensures a secure HDMI connection between the source and destination. Consumer Electronics Control (CEC), Ethernet signal transport and Return Audio Channel (ARC) signal pathways are not supported on secure HDMI connections.
• HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
• HDMI video upscaling and downscaling — Features the built-in Extron-exclusive Vector 4K scaling engine for optimized upscaling and downscaling of high-resolution video signals.
• On-screen display — Features an on-screen display that provides status data pertaining to the currently selected input, facilitating easy adjustment of picture settings.
• Aspect ratio control — The aspect ratio of the video output can be controlled by selecting a FILL mode, which provides a full screen output, or a FOLLOW mode, which preserves the original aspect ratio of the input signal.
• Internal test patterns for calibration and setup — Test patterns include grayscale, crosshatch, crop pattern, color bars, and alternating pixels.
• Integrated two-port HID hub with 100mA available on each port — Allows simultaneous connection to multiple peripheral devices, including keyboards, mice, and other HID—Human Interactive Devices.
• Host emulation on the USB HID ports — Offers increased system reliability by emulating a continuous connection between the HID-compliant keyboard and mouse and a host.
• LinkLicense^® Support — Extron LinkLicense unlocks features that add convenience, expand system functionality, and enhance the capabilities of Extron products.
• Front panel USB configuration port — Enables easy system configuration without having to access the rear panel.
• Ethernet monitoring and control — Enables control and proactive monitoring over a LAN, WAN, or the Internet.
• RS-232 control — Features an RS-232 serial port for control and configuration.
• Real-time status LED indicators for troubleshooting and monitoring — Front and rear panel LEDs verify signal presence, HDCP authentication, fiber link status, and power.
• Easy setup and commissioning with Extron’s PCS - Product Configuration Software — Conveniently configures multiple products using a single software application.
• Compatible with Extron FOX3 Series matrix switchers — Creates HDCP-compliant signal distribution systems.
• New Compatible with Quantum FOX3 series fiber optic output cards — Streamlines Quantum Ultra II videowall integration into FOX3 fiber optic systems.
• JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
• Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment
• Available as an 850 nm multimode model for moderate-range transmissions up to 500 m (1640 feet) and a 1310 nm singlemode model for extreme distances up to 20 km (12.4 miles)
• 1U high, half rack width metal enclosure
• Internal Extron Everlast™ power supply — Provides worldwide power compatibility, with high demonstrated reliability, and low power consumption for reduced operating cost.
• Extron Everlast Power Supply is covered by a 7-year parts and labor warranty
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations
