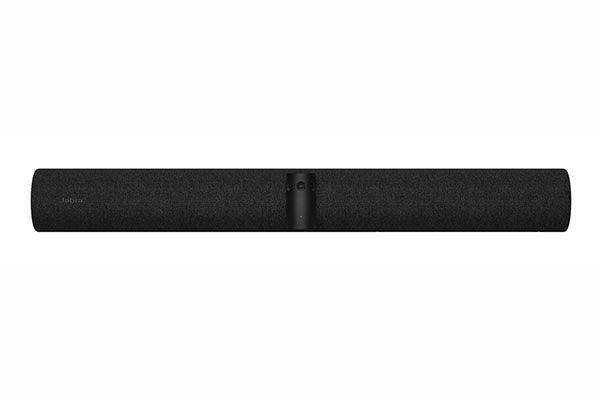

Jabra® PanaCast 50 Intelligent Video Bar - UC-SB-P50
The Jabra PanaCast 50 is an intelligent video bar that integrates microphones, speakers, and cameras into a single front-of-room device. Its high-quality speakers and microphones provide exceptional full-duplex performance. With three built-in conferencing cameras, it captures the entire room in panoramic 4K resolution, offering a seamless 180° horizontal field of view. Moreover, it is optimized for all major UC platforms, including Microsoft Teams Rooms and Zoom Rooms software.
Features
- Complete conferencing solution with speakers, microphones, and cameras in one front‑of‑room device
- (8) microphone beamforming array
- High‑powered 2‑way stereo speakers produce high‑quality sound
- Full‑duplex audio performance with 2‑way voice quality
- (3) built‑in cameras capture the room in a seamless 180° horizontal field of view
- Panoramic 4K video resolution
- 6x lossless digital zoom
- Automatically adjusts the field of view to frame all participants
- Microsoft Teams® Rooms and Zoom Rooms™ software certified
Specs
| Speakers | |
| Woofers | (2) 2 in. (50 mm) woofers |
| Tweeters | (2) 2 x 3/4 in. (50 x 20 mm) tweeters |
| Frequency Response | 80 Hz to 20 kHz |
| Microphones | |
| Microphone | (8) microphone beamforming array |
| Pickup Range | Suitable for rooms up to 15 x 15 ft (4.5 x 4.5 m) |
| NOTE: Microphone pickup range may vary in rooms with highly reflective infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or above average ambient noise. | |
| Sensitivity | -37 dBFS |
| Frequency Response | 100 Hz to 8 kHz |
| Video | |
| Cameras | (3) cameras |
| Resolution | 3840 x 1080 @ 30 fps; 13 megapixels |
| Field of View | 180º horizontal, 54º vertical |
| Zoom | 6x lossless digital zoom; Automatically adjusts the field of view to frame all participants |
| Indicators | |
| Status Bar | (1) multicolor LED indicates connection status, in‑call mute/unmute, room capacity status, remote control pairing, and firmware update status |
| Connectors | |
| POWER | (1) AC power connector, female; For included AC power pack |
| AUXIN | (1) 3.5 mm AUX port; For future use |
| USB C | (1) USB‑C connector, female; Connects to conferencing system, room controller, or laptop |
| ETHERNET | (1) RJ‑45 connector, female; Not used in Crestron Flex systems |
| Power | |
| Power | From external power pack; Input: 100‑240VAC, 50/60 Hz; Output: 5A @ 12V |
| Environmental | |
| Temperature | 41° to 95°F (5° to 35°C) |
| Construction | |

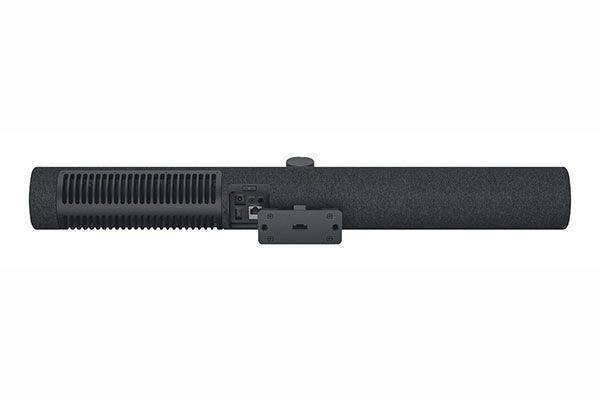

| Enclosure | Black speaker and camera housing, rear air vents, integrated adjustable mounting bracket |
| Mounting | Wall mount using integrated mounting bracket; Optional table mount or VESA® compliant screen mount (both sold separately) |
| Dimensions | |
| Height | 3.1 in. (90 mm) |
| Width | 25.60 in. (650 mm) |
| Depth | 4.90 in. (125 mm) |
| NOTE: Dimensions do not include the table stand or screen mount (both sold separately). | |
| Weight | |
| 4.85 lb (2.2 kg) | |
