Crestron TSD-2220-B 21.5” HD Touch Screen Display, Black

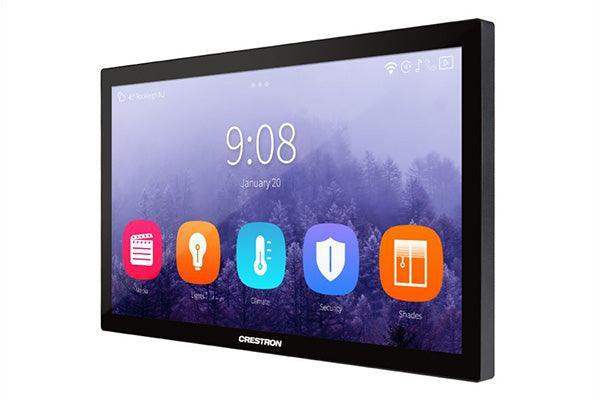

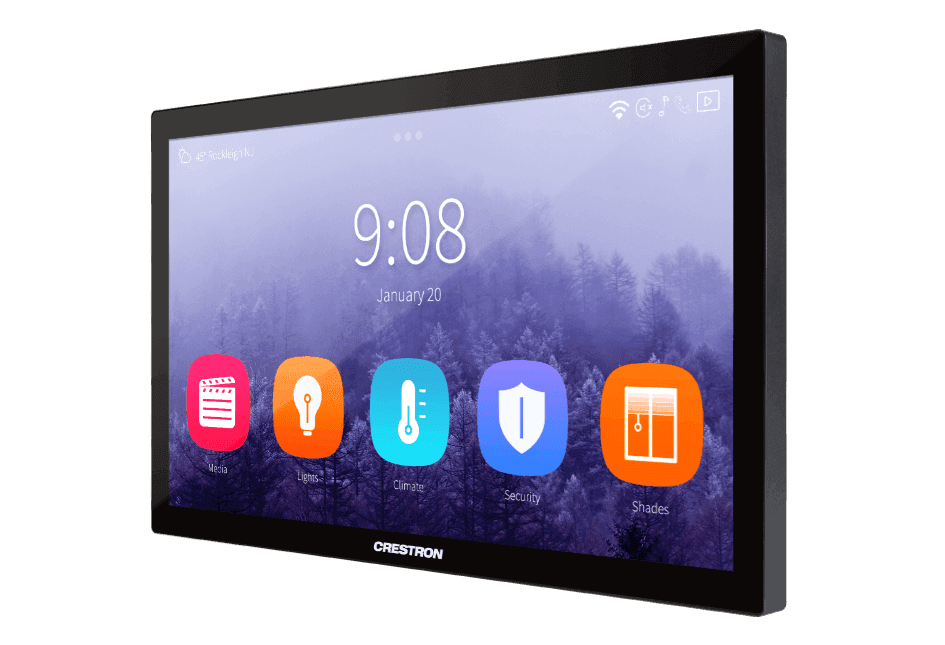

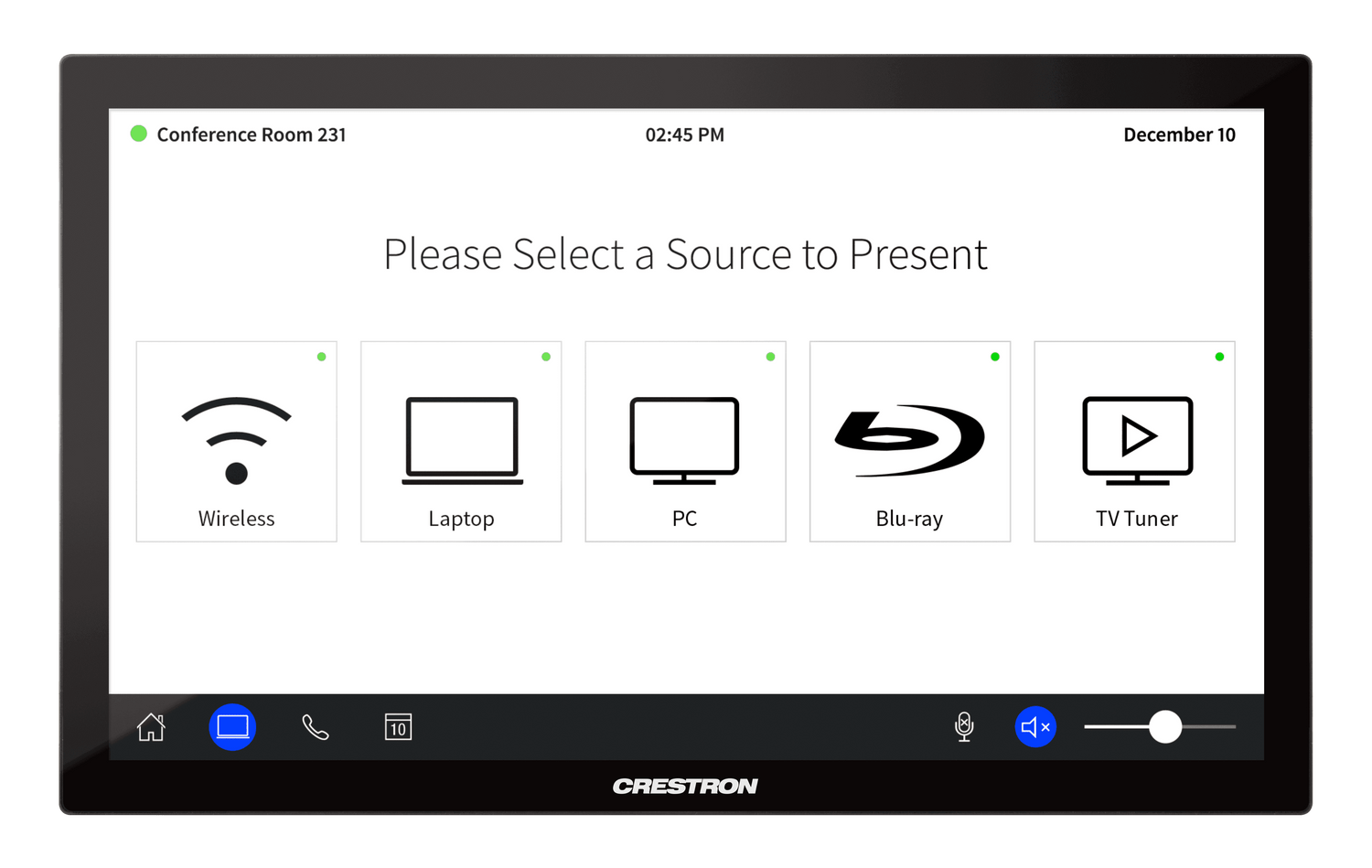

The TSD-2220 is a 21.5" (546 mm) Full HD capacitive touch screen display that can be used with the Crestron® DGE-100 or DM-DGE-200-C digital graphic engines (both sold separately) to provide a powerful touch screen control solution. It supports input resolutions up to 4K60 UHD (3840x2160@60Hz) via a single HDMI® input. It can be installed using a variety of VESA compliant mounting accessories, including wall-mount brackets, desk stands, and articulating arms. The TSD-2220 is compatible with VESA 100 x 100 mm and VESA 200 x 100 mm mounts (not included).
A flush in-wall mounting solution is available from third-party supplier Wall-Smart™ (www.wall-smart.com).
Key Features
- High-Definition 21.5" widescreen touch display
- Full HD 1920 x 1080 display resolution
- Built-in 4K UHD downscaling
- HDCP 2.2 compliant
- Multi-touch capacitive touch screen
- Ultra wide 178 degree viewing angles
- Built-in stereo speakers
- Slim, rugged design
- IP65 dust proof and water resistant
- Rear connector cover
- VESA 100x100 or 200x100 mountable
- CEC controllable power, volume, and brightness
- Designed for use with a DGE-100 or DM-DGE-200-C Digital Graphics Engine
- 100-240V universal power pack included
- Third-party flush wall mount kit available
Specs
| Touch Screen Display | ||
| Display Type | TFT active matrix color LCD | |
| Size | 21.5 inch (546 mm) diagonal | |
| Aspect Ratio | 16:9 Full HD | |
| Resolution | 1920 x 1080 pixels | |
| Brightness | 225 nits (cd/m²) | |
| Contrast | 1000:1 | |
| Response Time | 14 ms | |
| Color Depth | 24-bit, 16.7M colors | |
| Illumination | WLED backlit | |
| Viewing Angle | ±89° horizontal, ±89° vertical | |
| Touch Screen | Projected capacitive, 10-point multi-touch capable | |
| Buttons & Indicators | ||
| Power/Menu (rear) | (5) Pushbuttons for power and setup | |
| Power (rear behind cover) | (1) LED, indicates operating power supplied via the power pack | |
| Note: If power is lost while the TSD-2220 is powered on, it will automatically return to the powered on state when power is restored. | ||
| Communications | ||
| USB | USB Human Interface Device (USB HID) | |
| Video | ||
| Input Signal Types | HDMI | |
| Input Resolutions | 3840x2160@60Hz maximum | |
| Refer to the DGE-100 or DM-DGE-200-C specifications for additional information. | ||
| Audio | ||
| Input Signal Types | HDMI | |
| Speakers | Built-in rear-facing stereo amplified speakers | |
| Refer to the DGE-100 or DM-DGE-200-C specifications for additional information. | ||
| Connectors | ||
| HDMI | (1) 19-pin Type A HDMI female; HDMI digital video/audio input; (DVI compatible [1]) |
|
| USB | (1) USB type B, female; USB device port; 6 ft (1.83 m) cable included |
|
| 12VDC | (1) DC power connector; 12 Volt DC power input, power pack included |
|
| Power | ||
| Power Pack (included) | Output: 4.16 Amp @ 12 Volts DC; Input: 100-240 Volts AC, 50/60 Hz |
|
| Power Consumption | 27 Watts typical; 2 Watts standby (display backlight off) |
|
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 20% to 80% RH (non-condensing) | |
| Heat Dissipation | 93 BTU/hr | |
| Construction | ||
| Plastic case, IEC IP65 rated, VESA 100x100 or 200x100 mm mountable (M4 screw size), third-party flush wall mount kit available from Wall-Smart (www.wall-smart.com) | ||
| Dimensions | ||
| Height | 12.34 in (314 mm) | |
| Width | 20.37 in (518 mm) | |
| Depth | 1.82 in (46 mm) | |
| Weight | ||
| 9.7 lb (4.4 kg) | ||
