Crestron Room Availability Light Bar for TSW-770 Series (White, Smooth) - TSW-770-LB-W-S
Crestron Room Availability Light Bar for TSW-770 Series (White, Smooth) - TSW-770-LB-W-S is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Crestron Room Availability Light Bar for TSW-770 Series (White, Smo...

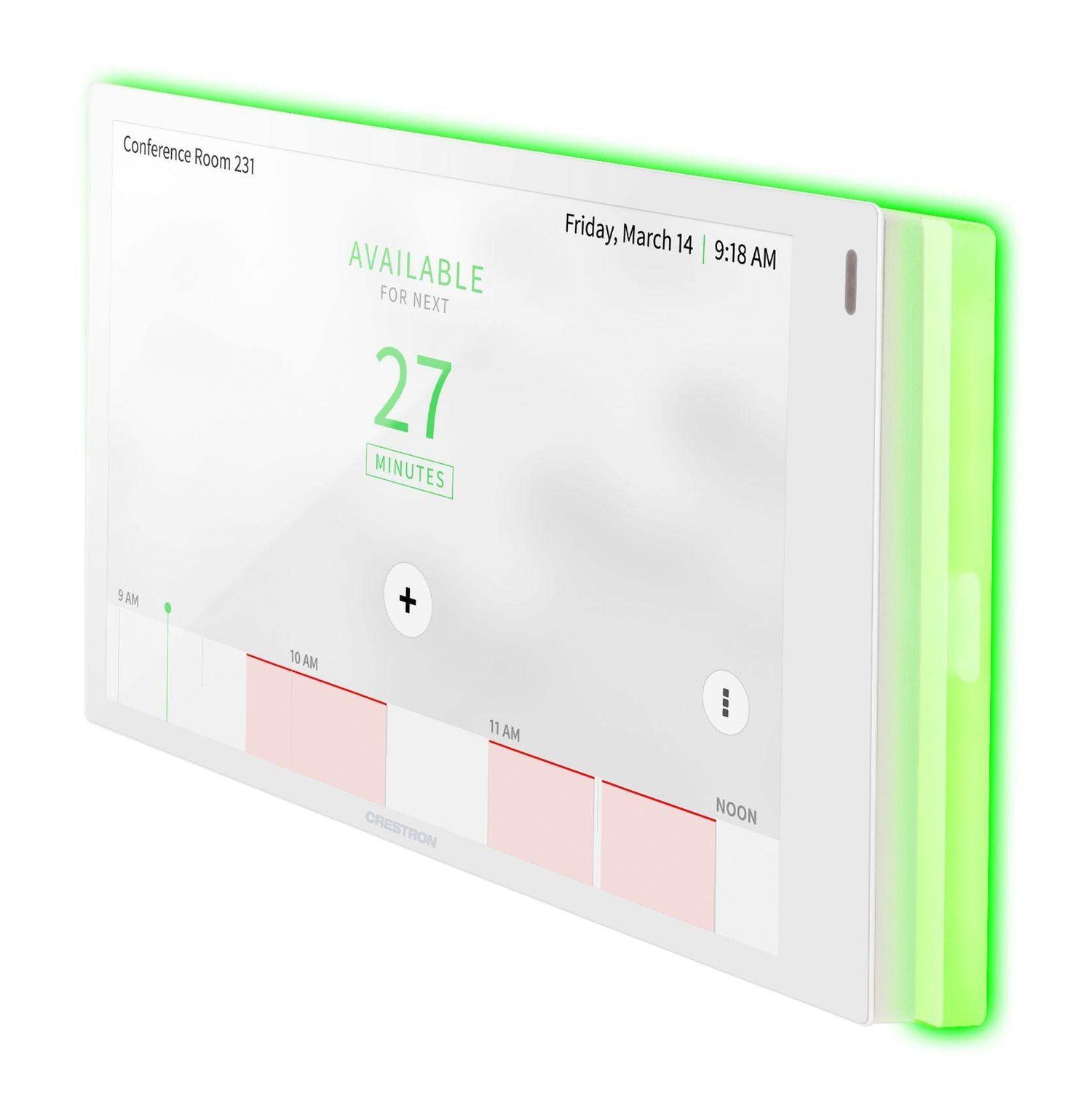

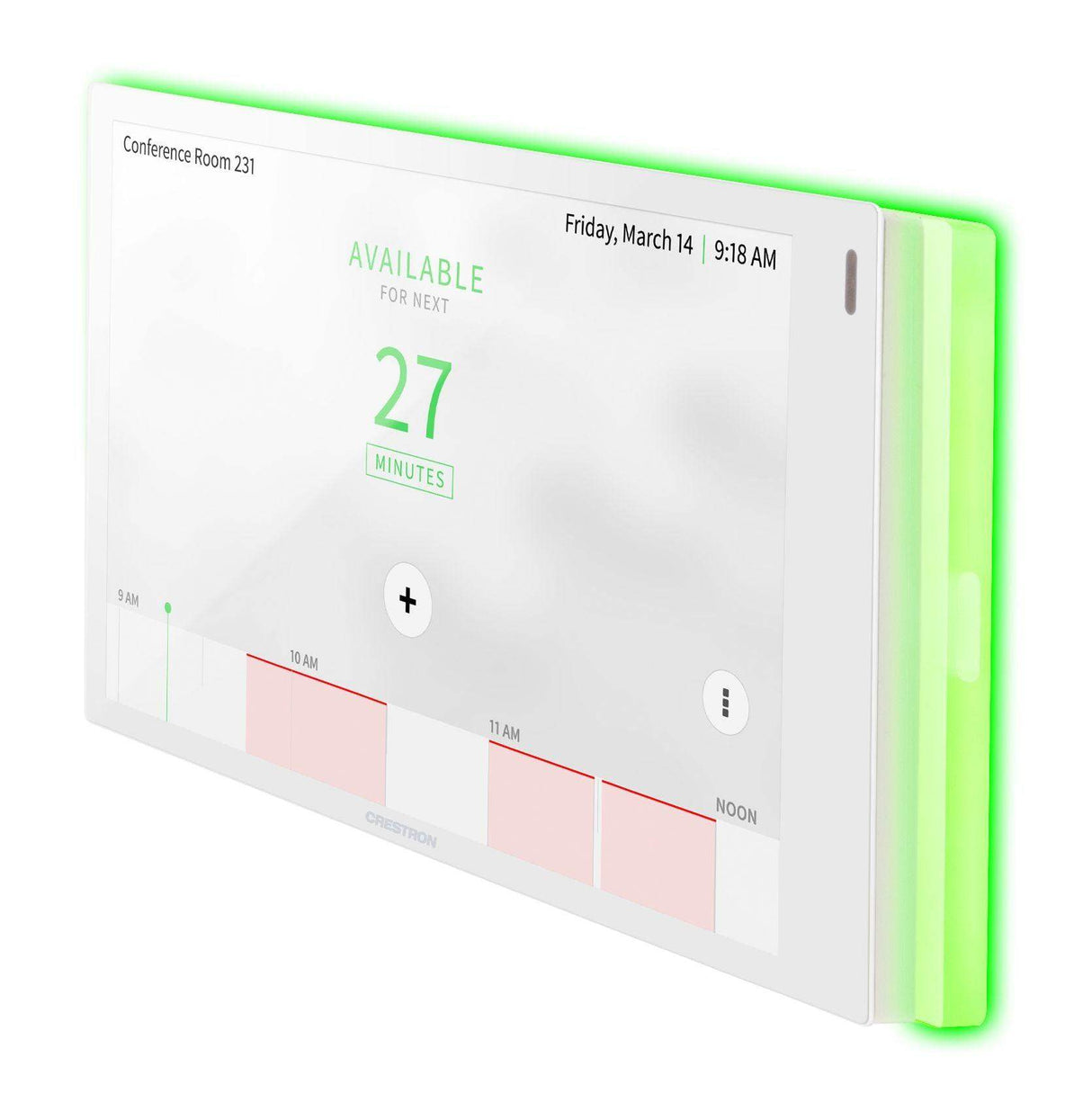

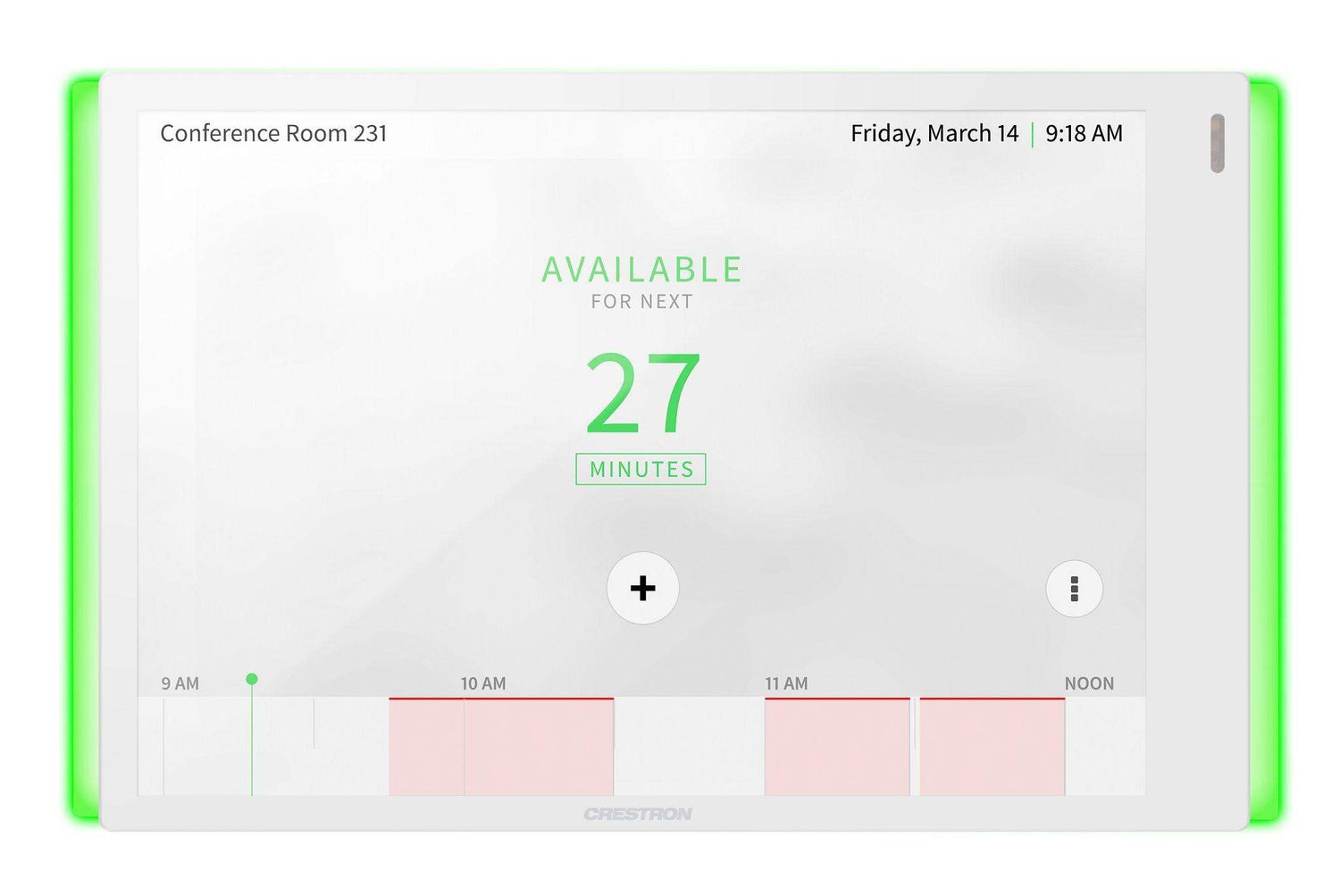

The Crestron® TSW-770-LB is a room availability light bar designed for use with TSW‑770 or TSS‑770 series touch screens. The TSW-770-LB provides a 180° visual indication of a room’s availability as part of a complete enterprise room scheduling solution. The TSW-770-LB mounts easily to the rear of the touch screen and illuminates bright green or red to indicate the room availability status, with options for custom color mixing and programming. The TSW-770-LB features a clean, stylish appearance and vivid color illumination that complement any corporate office environment, and it is energy efficient at less than 2 W power consumption.
Features
- Provides a 180° visual indication of a meeting room's availability for TSW‑770 or TSS‑770 series touch screens
- Features a stylish appearance designed to complement corporate office environments
- Illuminates vivid green or red to clearly indicate room status
- Supports RGB color mixing to allow for almost any color illumination
- Energy efficient at less than 2 W power consumption
- Mounts easily to the rear of the touch screen
- Single-wire USB connectivity
- Compatible with various in-wall, multisurface, and mullion mounting accessories
- Available in smooth black or white finish
Specs
| Indicator | |
| Illumination | RGB LED |
| Functionality | Supports alternating red/green indication of room availability status for room scheduling; Supports RGB color mixing via touch screen configuration or custom control system programming2 |
| Communications | |
| USB | USB 2.0 device for connection to a TSW‑770 or TSS‑770 series touch screen |
| Connectors | |
| USB | (1) Attached lead with USB Type A connector, male; USB 2.0 device port1; Connects to the USB host port on the touch screen |
| Flex Circuit Slot | Attaches the light bar panel to the control module |
| Power | |
| USB Power | 2.5 W |
| Power Consumption | 1.1 W typical |
| Environmental | |
| Temperature | 41 to 104 °F (5 to 40 °C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 5 BTU/hr |
| Construction | |
| Composition | Two-piece assembly composed of a control module and light-diffusing plastic light bar panel |
| Mounting | Control module attaches to the rear of the touch screen using screws, light bar panel sandwiches between the touch screen and mounting surface, 1-5/8 in. (41 mm) minimum mounting depth, compatible with all TSW‑770/TSS‑770 series supported electrical boxes, multisurface mount kits, and mullion mount kits |
| Dimensions | |
| Height | 4.17 in. (106 mm) |
| Width | 7.03 in. (179 mm) |
| Depth | 2.26 in. (57 mm) |
| Dimensions shown are for the complete touch screen and light bar assembly; projects 0.77 in. (20 mm) from the mounting surface | |
