Crestron MPC3-201-B 3-Series® Media Presentation Controller 201 (Black)
Crestron MPC3-201-B 3-Series® Media Presentation Controller 201 (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Crestron MPC3-201-B 3-Series® Media Presentation Controller 201 (Bl...

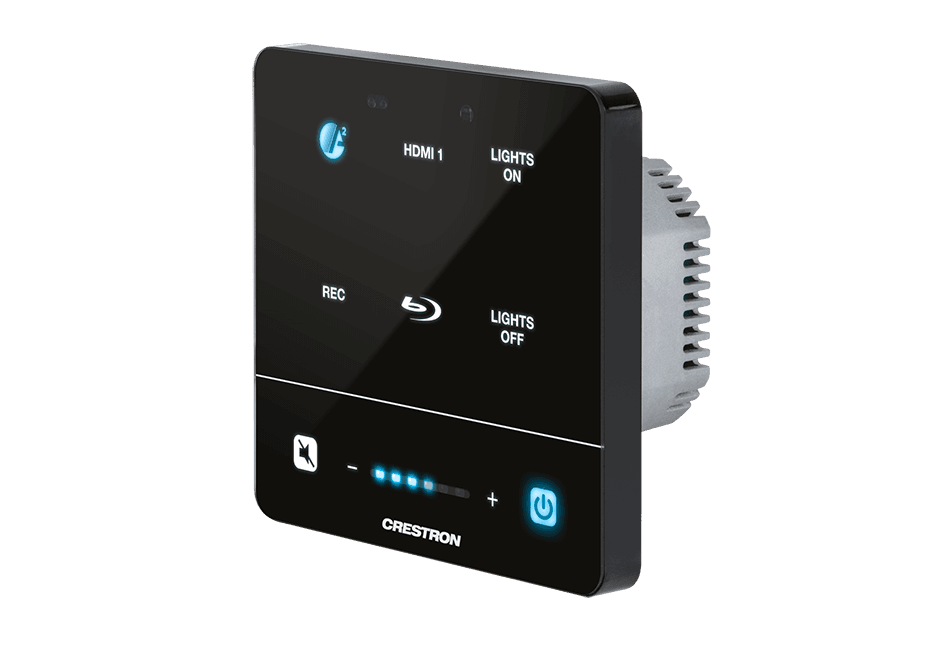

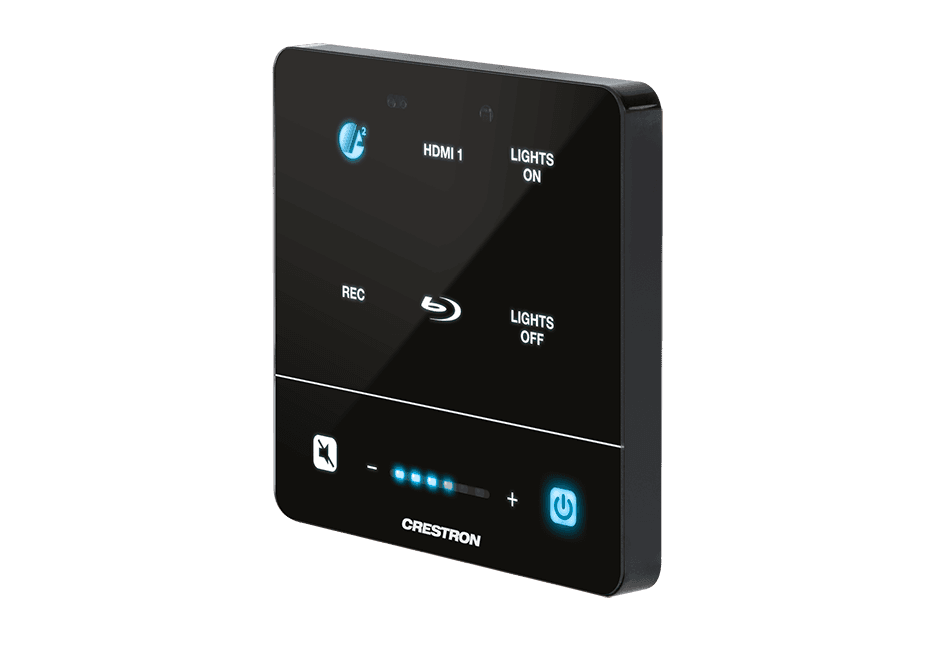

A wall-mounted, PoE powered 3-Series® control system and panel in one. Features a modern appearance with customizable backlit capacitive buttons. Mounts in a 1-gang European electrical box or tabletop enclosure. A 2-gang US wall mounting option is also available.
The 3-Series® Media Presentation Controller 201 (MPC3-201-B) is a wall-mounted, PoE powered 3-Series Control System® and control panel in one. Its modern appearance and customizable backlit capacitive buttons provide an ideal user-interface for controlling AV and other functions. It offers fully-programmable functionality, supports web and cloud-based configuration and management, and integrates with Crestron Fusion® as part of a complete managed enterprise solution.
Crestron® MPC3 series controllers are perfect for classrooms, meeting rooms, lecture halls, and training facilities – wherever a simple yet powerful controller is needed but space is limited. Use the MPC3-201-B to control a video display or AV system, adjust lighting and window shades, or any other custom application.
Customizable Backlit Capacitive Buttons

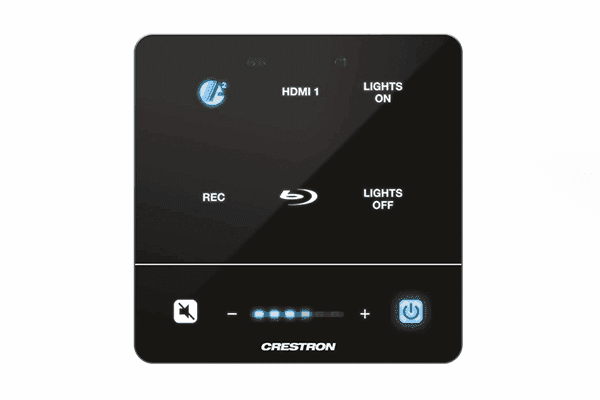

The MPC3-201-B features six backlit capacitive buttons, which can each be labeled using the icon chips provided, or custom labeled using laser-engravable chips (sold separately). Each button is backlit white when inactive and blue when active to provide clear indication of what media source or lighting scene is currently selected. Four additional buttons are included at the bottom along with a volume gauge for control of volume, mute, and power. A key click sound can be enabled to provide audible assurance when any button is pressed.
3-Series® Control Engine
The MPC3-201-B features an integrated, enterprise-grade 3-Series control processor. Crestron 3-Series delivers a distinctively robust, dynamic, and secure control system platform capable of faithfully managing a room full of disparate technologies. Its Modular Programming Architecture (optional [1]) allows the MPC3-201-B to run multiple programs simultaneously for increased efficiency and flexibility. Rock solid networking and IP control afford seamless integration with other systems and devices, with add-on control capability using Crestron touch screens, wireless remotes, and mobile device apps, and remote management through Crestron Fusion and XiO Cloud™.
Key Features
- Wall mount Crestron® 3-Series Control System® and control panel
- Mounts flush on a wall or lectern
- Fits in a single-gang European electrical box
- Retrofit 2-gang US electrical box adapter available
- Tabletop enclosure available
- Stylish blue and white backlit capacitive buttons
- Six buttons customizable with replaceable icon chips
- Additional power, volume, and mute buttons plus volume gauge
- Fully-programmable functionality
- Auto-brightness control
- Wakes on proximity detection
- Adjustable key-click sound
- Enterprise-class 3-Series® control engine
- Modular programming architecture (optional) [1]
- .AV Framework™ system configuration — no programming required!
- Built-in real-time clock
- Astronomical time clock for scheduled events
- High-speed 10/100 Ethernet LAN port
- Add-on Cresnet® and infiNET EX® interface options
- Add-on RS-232, IR, relay, and Versiport interface options
- iPhone®, iPad®, and Android® control app support
- XPanel computer and web based control with Smart Graphics®
- Crestron Fusion® room monitoring and scheduling support
- XiO Cloud® provisioning and management support
- SNMP remote IT management support
- Native BACnet™/IP support [2]
- Installer setup via software, web browser, or XiO Cloud
- Drag-and-drop, C#, and symbol based programming environments
- Full Unicode (multi-language) support
- Secure access through full user/group management or Active Directory® integration
- Hardware level security using 802.1X authentication
- TLS, SSL, SSH, and SFTP network security protocols
- FIPS 140-2 compliant encryption
- Built-in web server and SMTP e-mail client
- IPv6 ready
- PoE network powered
Specs
| Control Engine | |
| Crestron® 3-Series® control engine; real-time, preemptive multithreaded/multitasking kernel; transaction-safe extended FAT file system; battery-backed nonvolatile real‑time clock; supports up to 10 simultaneously running programs (license required 1); preloaded .AV Framework™ base program | |
| Communications | |
| Ethernet | 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1X, SNMP, BACnet/IP 2, IPv4 or IPv6, Active Directory® authentication, SMTP e-mail client, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, IEEE 802.3af and 802.3at Type 1 PoE compliant |
| Connectors | |
| LAN PoE | (1) 8-pin RJ-45 connector, female; 100BASE-TX Ethernet port; PoE (Power over Ethernet) PD (Powered Device) port |
| Ground | (1) 6-32 screw; Chassis ground lug (flying lead with ring terminal included) |
| Controls and Indicators | |
| Assignable Buttons | (6) Projected capacitive push buttons, each may be labeled using one of 25 prelabeled icon chips or hidden using one of five blackout chips (included), custom laser-etched icon chips are available using optional MPB3/MPC3‑BTN3‑B ENGRAVED engravable icon chips (sold separately) |
| Mute | (1) Projected capacitive push button with mute icon |
| -/+ | (2) Projected capacitive push buttons labeled with - (minus) and + (plus) icons for volume control |
| Volume Gauge | (1) Blue LED multisegment bargraph for volume level indication |
| Power | (1) Projected capacitive push button labeled with power icon |
| HW-R | (1) Push button (behind front panel) for hardware reset (reboots the processor) |
| SW-R | (1) Push button (behind front panel) for software reset (restarts the software program) |
| LAN PoE | (2) LEDs (on rear panel LAN port), green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| Illumination | Each capacitive button is individually backlit white when inactive and blue when active; Autobrightness control adjusts all backlighting in three levels according to the ambient light level; Backlighting may be dimmed or extinguished when unit enters idle state |
|
NOTE: All capacitive buttons are custom programmable. |
|
| Light Sensor | |
| A photosensor detects the ambient light level to enable autobrightness control | |
| Proximity Sensor | |
| Type | Eye-safe 940 nm laser ranging sensor |
| Range | Adjustable from 8 to 35 in. (20 to 90 cm) |
| Detects people within range and wakes the unit from standby or idle state. | |
| Audio | |
| Key Click | Click sound when any button is pressed, adjustable to one of three volume settings or off |
| Power | |
| Power over Ethernet | IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) PoE Powered Device |
| Power Consumption | 3 W typical |
| Environmental | |
| Temperature | 41° to 104°F (5° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 11 BTU/hr |
| Construction | |
| Housing | Plastic with metal mounting plate, removable front panel with optional security screw |
| Flush Wall Mount | Mounts in a 1-gang European (DIN 49073) electrical box, mounts in a 2-gang US electrical box using MPC3‑101/102/201‑RMB Retrofit Mounting Bracket (sold separately) |
| Lectern Mount | Mounts in a 2-1/16 in. (52 mm) square cutout using bracket provided |
| Tabletop Mount | Sits on a tabletop using MPC3/MPB3‑TTK‑SQR‑B tabletop kit (sold separately) |
| Dimensions | |
| Height | 3.42 in. (87 mm) |
| Width | 3.42 in. (87 mm) |
| Depth | 1.88 in. (48 mm) |
| Weight | |
| 7.3 oz (208 g) | |
