Crestron HD-TX-4KZ-201 DM Lite® 4K60 4:4:4 Transmitter and 2x1 Auto-Switcher for HDMI® Signal Extension over CATx Cable

$880.00
Shipping calculated at checkout.
Crestron  |  SKU: HD-TX-4KZ-201

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted

The HD‑TX‑4KZ‑201 is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher for the transmission of an HDMI® signal. A CAT5e or higher twisted pair cable is used to connect the HD‑TX‑4KZ‑201 to the DM Lite receiver or DMPS Lite switcher.  For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1

Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD‑TX‑4KZ‑201 must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DM Lite 4K60 4:2:0 receivers are the HD‑RX‑101‑C‑E, HD‑RXC‑101‑C‑E, HD‑RX‑201‑C‑E, HD‑RX‑101‑C‑1G‑E, and HD‑RXC‑101‑C‑1G‑E. Supported DMPS Lite switchers are the HD‑PS622, HD‑PS621, HD‑PS402, HD‑PS401, and HD‑RX‑4K‑210‑C‑E(‑POE).

Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.

The HD‑TX‑4KZ‑201 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD‑TX‑4KZ‑201. In addition, control system programming and .AV Framework™ software support of the HD‑TX‑4KZ‑201 is hosted by the switcher.

4K60 4:4:4 and HDR Support
The HD‑TX‑4KZ‑201 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

Automatic Switching of Inputs
When the HD-TX-4KZ-201 is used with a DMPS Lite switcher, the web interface of the switcher or control system programming hosted by the switcher can be used to configure the switching behavior of the HD-TX-4KZ-201. Switching between the two HDMI inputs can occur based on the last connected input or on the routing priority assigned to each input. In addition, input selection push buttons on the front panel of the HD-TX-4KZ-201 enable the desired input to be selected manually.

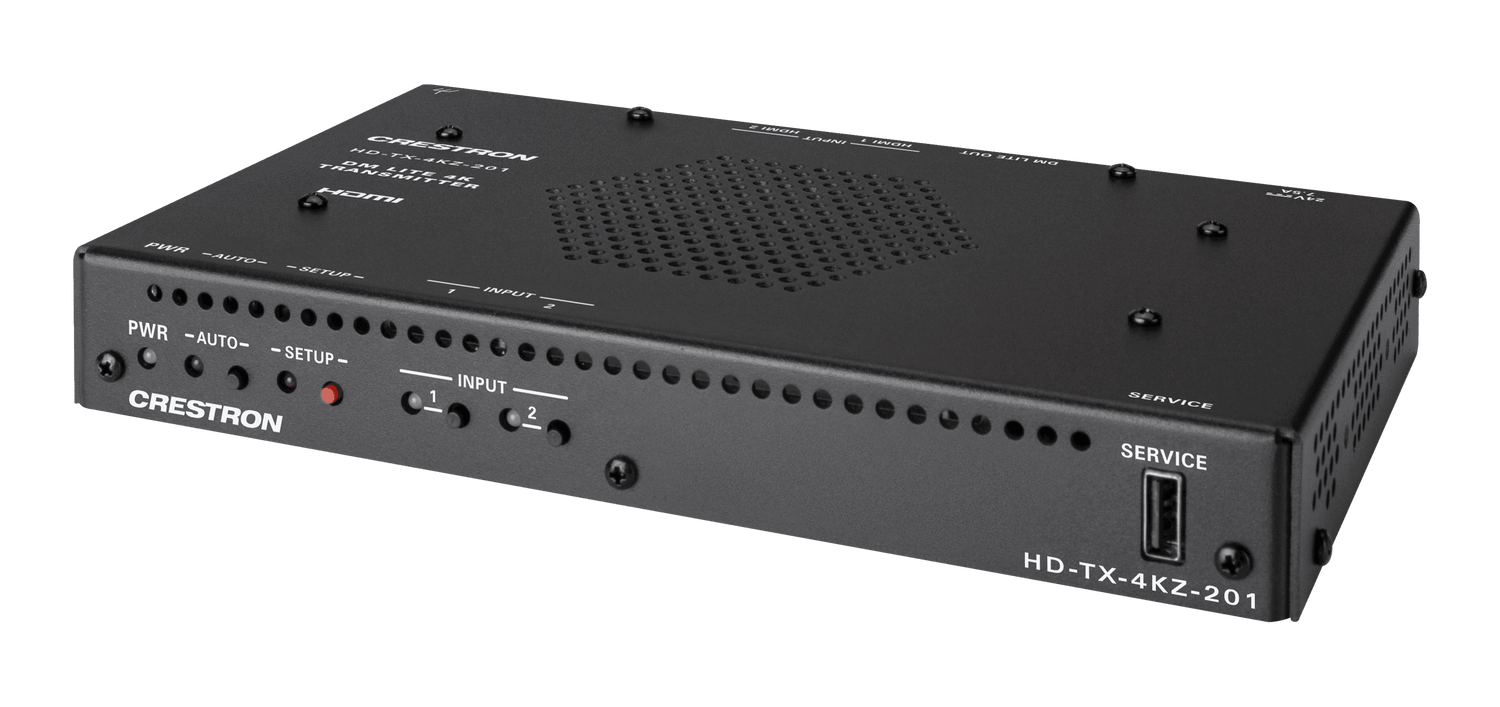

Compact, Surface‑Mountable Design
Compact in design, the HD‑TX‑4KZ‑201 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD‑TX‑4KZ‑201 can receive power from the included power pack or from the remote DM Lite receiver or DMPS Lite switcher.3


Key Features
  • Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
  • Point-to-point extension of an HDMI® signal over a CAT5e or higher cable
  • DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • 4K60 4:4:4 capability
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Compliance with HDCP 2.3
  • Automatic switching of HDMI inputs
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • Compact, surface-mountable design
  • Power from 24VDC power pack (included) or from remote DM Lite receiver or DMPS Lite switcher
Specs
Video
Input Signal Type HDMI® with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 (DVI and Dual-Mode DisplayPort™ interface compatible4)
Output Signal Type DM Lite® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2
Copy Protection HDCP 2.3
Resolutions Common resolutions are listed in the following table.
Scan Type Resolution Frame Rate Color Sampling Color Depth
Progressive 4096x2160 DCI 4K & 3840x2160 4K UHD 24 Hz 4:4:4 12 bit
30 Hz 4:4:4 12 bit
60 Hz 4:2:2 12 bit
60 Hz 4:4:4 8 bit
2560x1600 WQXGA 60 Hz 4:4:4 8 bit
1920x1080 FHD 1080p 60 Hz 4:4:4 12 bit
Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 12 bit
Note: The maximum supported resolution is 4K60 with 4:4:4 color sampling. Custom resolutions are supported at pixel clock rates up to 600 MHz.
Audio
Input Signal Type HDMI
Output Signal Type DM Lite
Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels
Communications
HDMI HDCP 2.3, EDID, CEC pass-through
DM Lite HDCP 2.3, EDID pass-through
USB USB host for one TT-100 series cable caddy (sold separately)

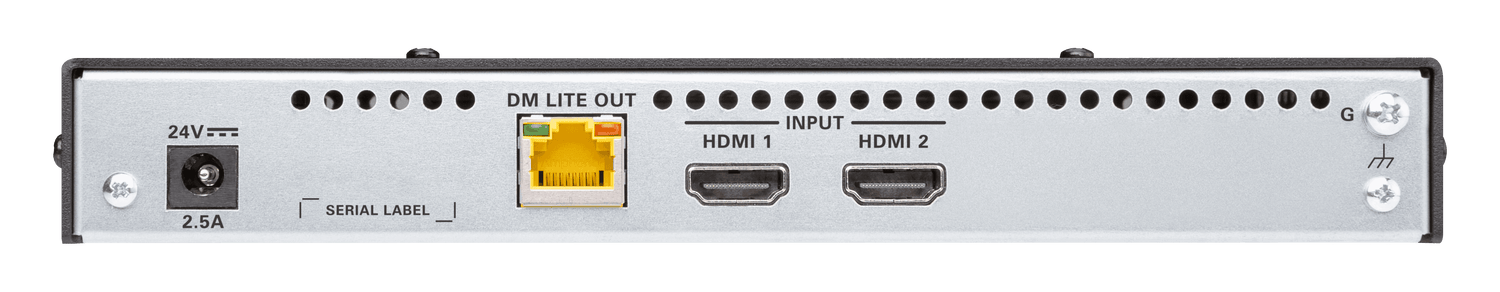

Connectors
HDMI INPUT 1-2 (2) HDMI Type A connectors, female;
HDMI digital video/audio inputs;
DVI and Dual-Mode DisplayPort™ interface compatible4
DM LITE OUT (1) 8‑pin RJ‑45 yellow connector, female, shielded;
DM Lite output port for connection to a DM Lite receiver or DMPS Lite™ switcher1, 5
24V 2.5A (1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
PW-2420RU power pack included3
SERVICE (1) USB 2.0 Type-A connector, female;
Used for firmware loading, configuration management, or as a USB host port for one TT-100 series cable caddy (sold separately);
Can also provide up to 5V 500 mA power to a USB powered device
Ground (1) Chassis ground lug

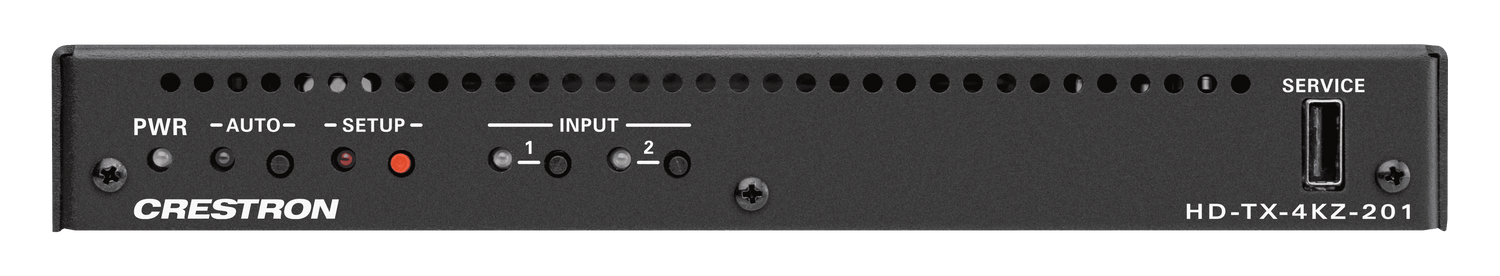

Controls and Indicators
PWR (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational.
AUTO (1) Push button for enabling or disabling automatic switching of inputs;
(1) LED, green indicates that automatic switching of inputs is enabled
SETUP (1) Push button for Ethernet setup (applicable only when used with a DMPS Lite switcher);
(1) LED, red indicates that the SETUP push button is pressed
HDMI INPUT 1-2 (2) Push buttons for manual input selection;
(2) LEDs, green indicates that the corresponding input is routed to an output, and amber indicates that a source is detected but is not routed to an output
DM LITE OUT (2) LEDs on RJ‑45 connector.
Green indicates that a DM Lite link is established.
Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video.
Power
Power Pack (Included) Input: 100-240VAC
Output: 24VDC 2.5A
Model: PW-2420RU3
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 20% to 90% RH (non-condensing)
Enclosure
Chassis Metal, black finish, vented top, front, rear, and sides, 2 mounting brackets included
Mounting Freestanding, surface mountable, or attachment to a single rack rail
Dimensions
Height 1.20 in. (30 mm)
Width 8.52 in. (216 mm)
Depth 5.23 in. (133 mm)
Weight
1.54 lb (0.70 kg)
Compliance
Regulatory Model: M202046002
Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class A digital device
Maximum DM Lite Transmission Distance
Resolution Frame Rate (Hz) Color Sampling Color Depth Cable Type1
DM-CBL-ULTRA DM® Ultra Cable DM-CBL-8G DM 8G® Cable or CAT5e (UTP) or Higher
1920x1080 HD 1080i 30 4:4:4 12 bit 230 ft (70 m) 195 ft (60 m)
1920x1080 FHD 1080p 60 4:4:4 8, 12 bit
1600x1200 UXGA 60 4:4:4 8, 12 bit
2048x1080 DCI 2K 60 4:4:4 8, 12 bit
1920x1200 WUXGA 60 4:4:4 8, 12 bit
2048x1152 QWXGA 60 4:4:4 8, 12 bit
2560x1080 UWFHD 60 4:4:4 8 bit
2560x1440 WQHD Reduced Blanking 60 4:4:4 8 bit
2560x1600 WQXGA Reduced Blanking 60 4:4:4 8 bit
2048x1152 QWXGA 60 4:4:4 12 bit
3840x2160 4K UHD and 4096x2160 DCI 4K 30 4:2:2 12 bit
30 4:4:4 8 bit
60 4:2:0 8 bit
3840x2160 4K UHD and 4096x2160 DCI 4K 30 4:4:4 12 bit 130 ft (40 m) 100 ft (30 m)
60 4:2:0 12 bit
60 4:2:2 12 bit
60 4:4:4 8 bit
