Crestron HD-RXU-4KZ-101-2G-B DM Lite® 4K60 4:4:4 Receiver for HDMI® and USB 2.0 Signal Extension over CATx Cable, Wall Plate, Black

The HD-RXU-4KZ-101-2G is a DM Lite® 4K60 4:4:4 wall plate receiver designed to interoperate with a DM Lite HD-TXU-4KZ Series transmitter for the transmission of HDMI® and USB 2.0 signals. A CAT5e or higher twisted pair cable is used to connect the HD-RXU-4KZ-101-2G to the DM Lite transmitter. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.¹

The HD-RXU-4KZ-101-2G is available in black (model HD-RXU-4KZ-101-2G-B).

Interoperability with a DM Lite HD-TXU-4KZ Series Transmitter
For interoperability between the HD-RXU-4KZ-101-2G and an HD-TXU-4KZ Series transmitter, the DM Lite input port of the HD-RXU-4KZ-101-2G must be connected to the DM Lite output port of the HD-TXU-4KZ Series transmitter. Examples of supported DM Lite transmitters are the HD-TXU-4KZ‑111-E and HD-TXU-4KZ-111-2G.

NOTE: If the HD-RXU-4KZ-101-2G is paired with a DM Lite transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Lite™ HD-PS Series switcher, USB 2.0 data extension is not supported.

4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-101-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.²

USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-2G, enabling connection to USB 2.0 peripheral devices. Various types of USB peripheral devices are supported, including mice, keyboards, whiteboards, touch screens, game controllers, cameras, mobile devices, headsets, printers, flash drives, hard drives, and USB hubs.³

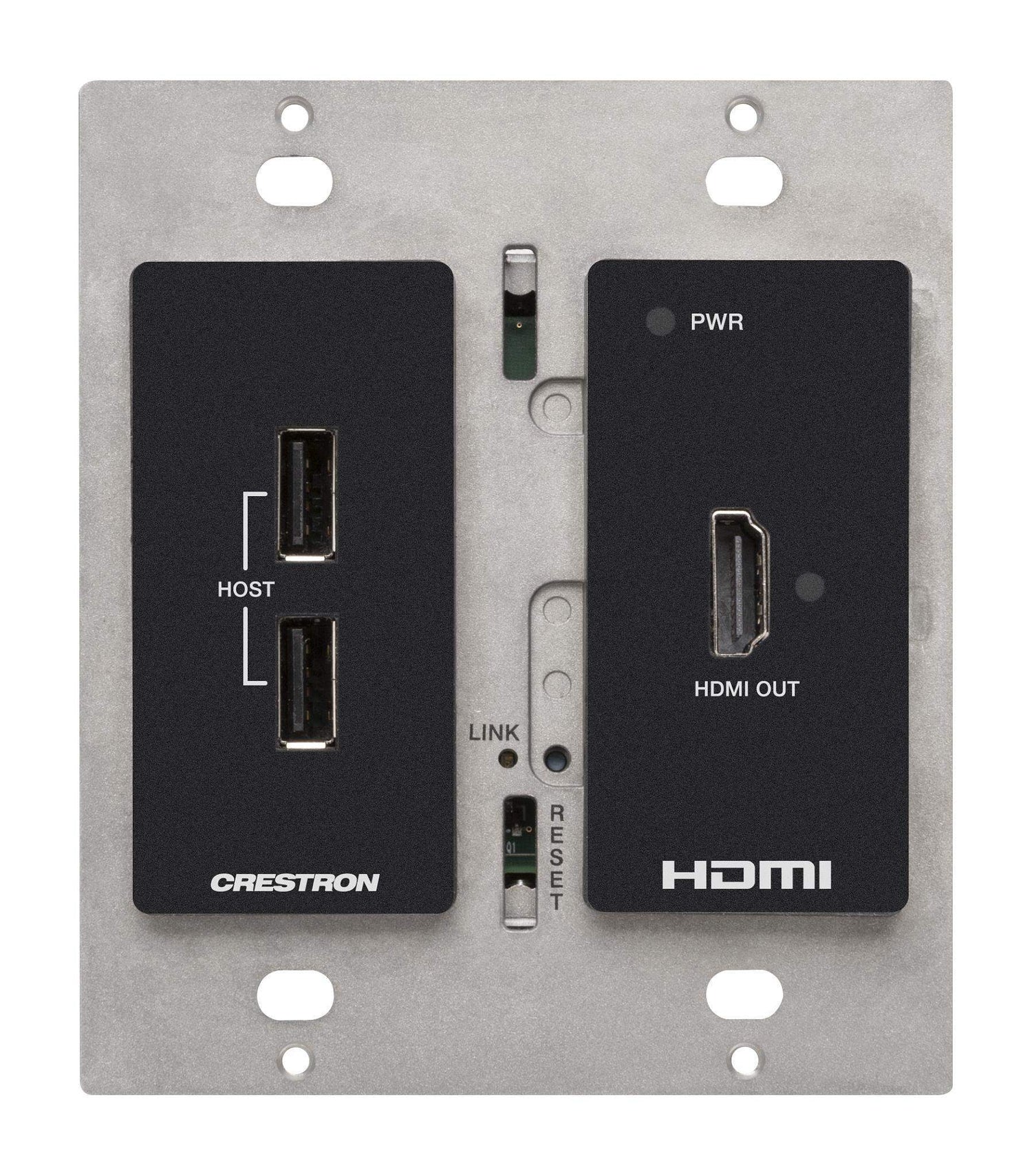

Two-Gang Wall Plate Design

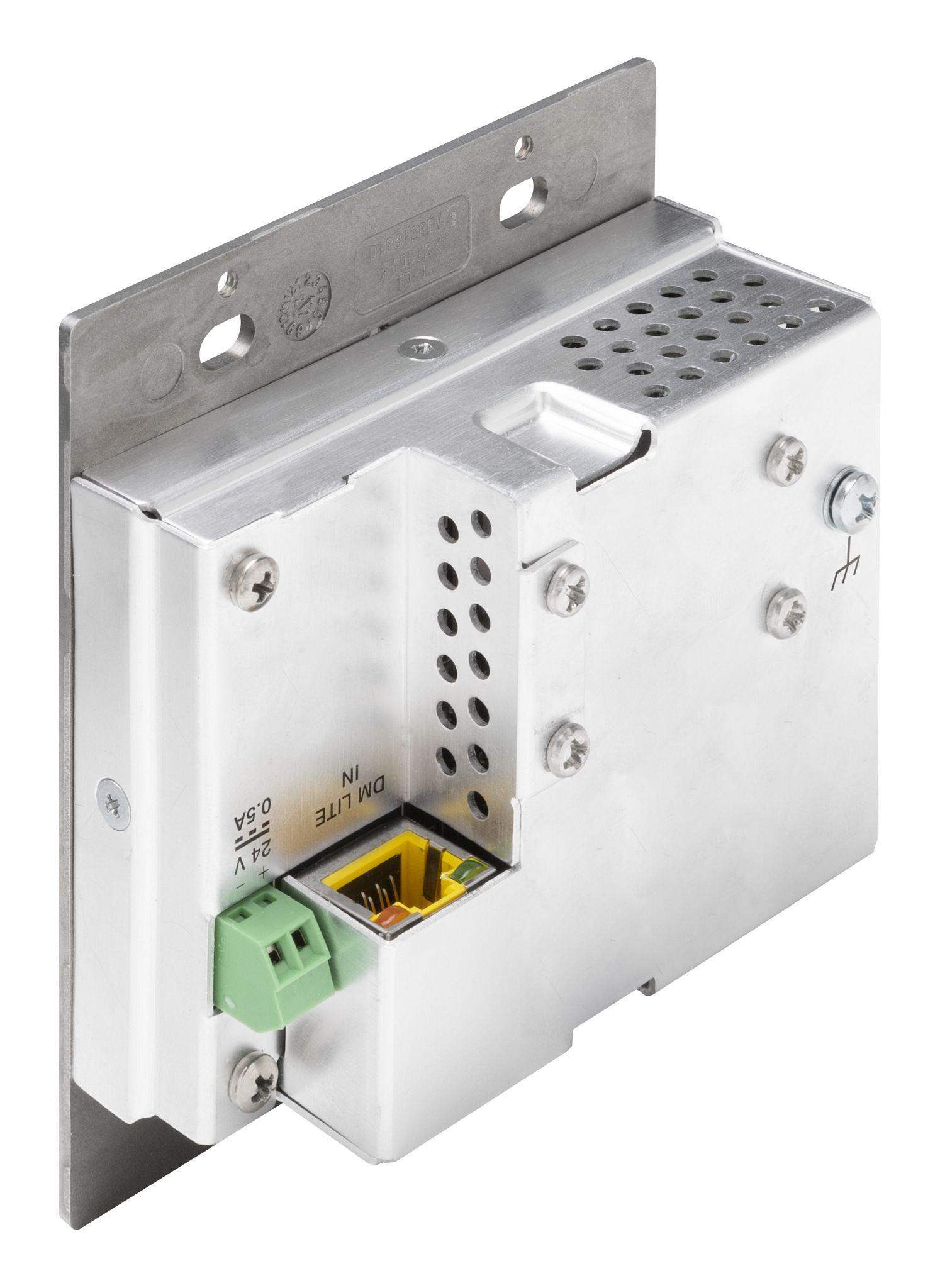

The HD-RXU-4KZ-101-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-RXU-4KZ-101-2G can receive power from the remote DM Lite transmitter (surface mountable only).⁴

^Features

• DM Lite® receiver functionality designed to interoperate with a DM Lite HD-TXU-4KZ Series transmitter
• Point-to-point extension of an HDMI® AV signal and USB 2.0 data signals over a CAT5e or higher cable
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability

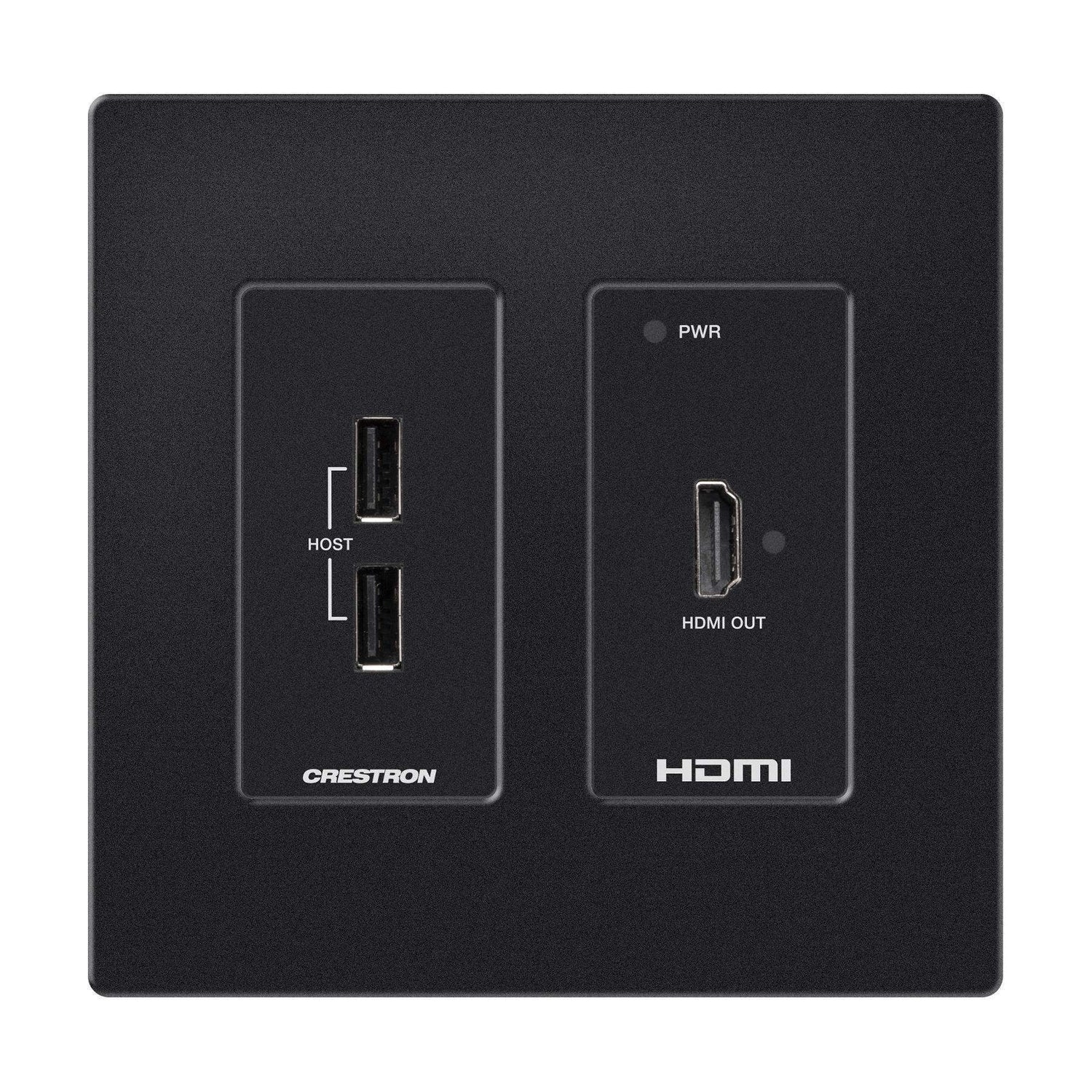

• Two-gang wall plate design with black finish
• Decorator style faceplate required (FP-G2-DM Series sold separately)
• Power from the remote DM Lite transmitter (surface mountable only)
