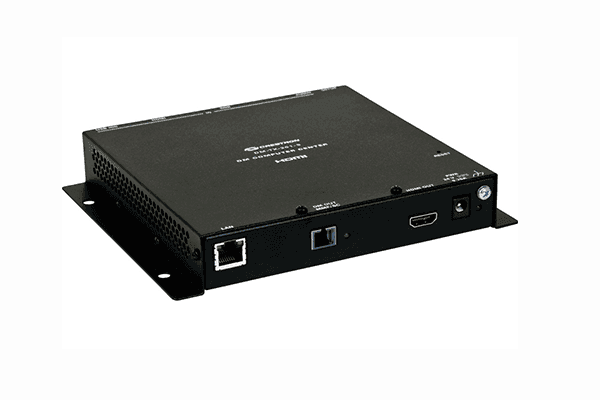

Crestron DM-TX-201-S DigitalMedia 8G™ Fiber Transmitter 201

The DM-TX-201-S provides a simple interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. Its low-profile, surface-mountable design makes it ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence. It functions as a DM 8G® Fiber transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with Ethernet and USB HID ports for a total connectivity solution. It connects to the head end or display location using a single multimode fiber strand.

Key Features

• DigitalMedia 8G™ Fiber transmitter and multimedia interface
• Built-in 2x1 AV switcher with auto-switching and analog audio-breakaway
• QuickSwitch HD® technology achieves fast, reliable switching
• Connects to a DM® switcher or receiver over one multimode fiber strand ^[1]
• Supports cable lengths up to 1000 ft (300 m) using CresFiber® 8G, or 500 ft (150 m) using other multimode fiber ^[1]
• Provides HDMI® and RGB/component video inputs ^[3]
• Also supports DVI and DisplayPort Multimode sources ^[2]
• Handles video resolutions up to Full HD 1080p
• Handles computer resolutions up to WUXGA
• Handles Dolby Digital®, DTS®, and uncompressed 7.1 linear PCM audio
• HDCP compliant
• Includes a mini-TRS stereo analog audio input
• Includes a local HDMI monitor output
• Detects and reports detailed video and audio input information
• Performs automatic AV signal format management via EDID
• Provides a 10/100 Ethernet LAN connection
• Enables device control via CEC and Ethernet
• Enables USB HID signal extension for a local computer
• Compatible with Crestron® USB over Ethernet Extenders ^[4]
• Allows quick, easy setup and diagnostics
• Low-profile surface-mount design
• Universal power pack included
