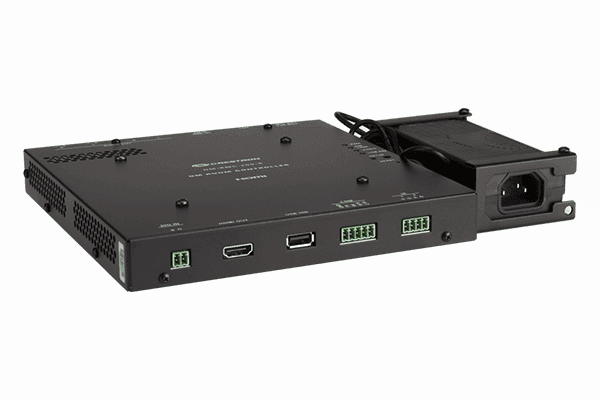

Crestron DM-RMC-200-C DigitalMedia 8G+® Receiver & Room Controller 200

The DM-RMC-200-C provides an advanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia™ system. It functions as a DM 8G+® receiver, video scaler, audio amplifier, and control interface. It provides a single HDMI® output, along with speaker and line level audio outputs, plus Ethernet, USB HID, and a variety of control ports. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to an HDBaseT certified source. Built-in scaling allows the connected display to handle any video resolution up to HD 1080p or WUXGA. Its compact, low-profile design allows the DM-RMC-200-C to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single CAT type twisted pair cable.

Key Features

• DigitalMedia 8G+® receiver, high-definition scaler, audio amplifier, and display controller
• Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable ^[1]
• Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e ^[1]
• HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
• Provides one HDMI® or DVI display output ^[2]
• Handles any video resolution from standard NTSC 480i or PAL 576i, to HD 1080p60 w/Deep Color
• Handles any computer resolution from VGA to UXGA/WUXGA
• Scales the signal to match the native resolution of virtually any digital video display or computer monitor up to 1080p or WUXGA
• Provides intelligent frame rate conversion
• Includes content-adaptive noise reduction
• Allows motion-adaptive de-interlacing or interlacing
• Allows adjustable overscan or underscan up to 7.5%
• Provides automatic 3D to 2D signal conversion ^[3]
• Automatically passes 3D video without scaling to 3D capable displays ^[3]
• Supports left/right eye steering for dual-projector 3D setups ^[3]
• Scalable zoom feature enables 2x2, 3x2, 3x3, 4x3, or 4x4 video wall capability ^[7]
• Handles Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio
• Provides a stereo analog line-level audio output with volume control ^[5]
• Allows extraction of stereo 2-channel audio signals ^[5]
• Includes a built-in 30 Watt stereo amplifier ^[5]
• HDCP compliant
• Provides a 10/100 Ethernet LAN connection
• Enables device control via CEC, IR, RS-232, and Ethernet
• Provides two relay control ports and two contact sensing inputs
• Enables USB HID signal extension for a local keyboard/mouse
• Compatible with Crestron® USB over Ethernet Extenders ^[6]
• Allows quick, easy setup and diagnostics
• Low-profile design mounts to a 2-gang US, UK, or European wall box
• Includes mounting bracket with integral power pack holder
• Universal power pack included
