Crestron DM-NVX-E20-2G-W-T DM NVX® 4K60 4:2:0 Network AV Encoder, Wall Plate, White

The DM-NVX-E20-2G is an AV-over-IP wall plate encoder designed to transmit video with resolutions up to 4K60 4:2:0 over standard Gigabit Ethernet. Featuring secure web-based control and management, an HDMI® input, an analog audio input, AES67 transmit and receive capability, and copper Ethernet connectivity with PoE support, the DM‑NVX-E20-2G provides an encoder solution that offers price and performance optimization in a DM NVX® network AV installation of any size.^{1, 2}

The DM-NVX-E20-2G is available in two models: DM-NVX-E20-2G-B-T (black textured) and DM-NVX-E20-2G-W-T (white textured).

Real-Time 4K60 Video Performance
Engineered for demanding conference room and classroom applications, the DM-NVX-E20-2G ensures real‑time, full‑motion 4K60 video performance for the presentation of multimedia, videoconferencing, and live camera images. Interactive functions such as gameplay and the use of a mouse are fluid and natural.

A DM NVX system is engineered for stability and ultimate reliability. Line‑synchronized outputs ensure perfect synchronization of content across multiple displays for applications such as digital signage. Variable Multicast TTL (Time To Live) enables traversing multiple network routers for optimal flexibility.

Enterprise-Grade Security
Using advanced security features and protocols such as 802.1X authentication, Active Directory® credential management, AES‑128 content encryption, PKI authentication, TLS, SSH, and HTTPS, a DM NVX system delivers a true enterprise‑grade network AV solution engineered to fulfill demanding IT policies.

Encoder Functionality
The DM-NVX-E20-2G encoder provides one HDMI input that enables a laptop computer, camera, or other media source to be connected via an HDMI cable and then transmitted over the network to one or many decoders.¹ Compatible with the DM-NVX-D20, DM-NVX-D200, and other DM NVX products that can function as decoders, the DM-NVX-E20-2G can be used in any DM NVX network AV design.

NOTE: If the DM-NVX-E20-2G is used with the DM-NVX-D10, the resolution of the DM-NVX-E20-2G must be configured so that it does not exceed the maximum resolution supported by the DM‑NVX-D10.

It is recommended that the DM-NVX-E20-2G not be used with the DM-NVX-D10 in order to maintain the higher resolutions supported by the DM-NVX-E20-2G.

Fixed or Adaptive Bit Rate
The bit rate of a stream can be set to a fixed or adaptive bit rate. A fixed bit rate, also referred to as Constant Bit Rate (CBR), is user specified and can be set to a value ranging from 200 Mbps to 950 Mbps.³

Adaptive bit rate (ABR) enables the encoder to automatically set a fixed bit rate based on the input resolution of the stream. For example, the adaptive bit rate for a common resolution such as 1920x1080p@60Hz (1080p60) would automatically be set to 400 Mbps. Adaptive bit rate makes better use of the available bandwidth than a user-specified fixed bit rate.

The web interface or a control system can be used to set a fixed bit rate or to enable adaptive bit rate functionality.

Analog Audio Embedding
The unbalanced stereo line-level audio input enables a stereo audio source to be connected and combined with the HDMI input.

7.1 Surround Sound Audio
DM NVX technology supports the lossless transport of 7.1 surround sound audio signals, including Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed linear PCM.

AES67 Audio Embedding and De-embedding
AES67 support enables the selected audio source to be transmitted as a 2-channel AES67 audio stream while another 2‑channel AES67 audio stream is received from a Crestron DSP or other third-party device. The AES67 audio stream that is received can be output via the primary AV stream.

NOTE: An AES67 audio stream that is received by a DM NVX endpoint cannot be transmitted from that endpoint.

Copper Ethernet Connectivity
The DM-NVX-E20-2G includes one RJ-45 1000BASE‑T Ethernet port.² The port is PoE compliant, enabling the device to be powered via a PoE Ethernet switch.⁴ For information about network requirements and guidelines, refer to the DM NVX AV-over-IP System Design Guide.

Automatic Point-to-Point Connectivity
Point-to-point connectivity enables the DM-NVX-E20-2G to be connected directly to a DM-NVX-D20 or DM-NVX-D200 in order to stream video and audio. Rather than being connected to an Ethernet switch, the 1000BASE-T Ethernet port of the DM-NVX-E20-2G is connected directly to the 1000BASE-T port of the decoder.

By default, point-to-point mode automatically detects whether the DM-NVX-E20-2G is connected directly to a decoder or to a 1000BASE-T switch. When a direct connection between the DM-NVX-E20-2G and a decoder is detected, the devices operate in point-to-point mode without the need for additional configuration. The web interface or a control system can be used to disable point-to-point mode or to enable automatic detection of point-to-point connectivity.

Device Control via CEC
Under the management of a control system, the DM-NVX-E20-2G can control a source device via CEC (Consumer Elecronics Control) over the HDMI input, potentially eliminating the need for dedicated control cables.

Web-Based Setup
Setup of the DM-NVX-E20-2G is accomplished by using a web browser. Full control and monitoring of the device is enabled through integration with a control system or with a DM NVX Director® virtual switching appliance.

Streamlined Management Using DM NVX Director Virtual Switching Appliances
Use of a DM NVX Director virtual switching appliance (DM-NVX-DIR-80, DM-NVX-DIR-160, or DM-NVX-DIR-ENT) streamlines the entire configuration and control process. A DM NVX Director appliance provides a central point of management and enables the creation of multiple virtual matrix switchers through one easy‑to‑use web‑based portal.

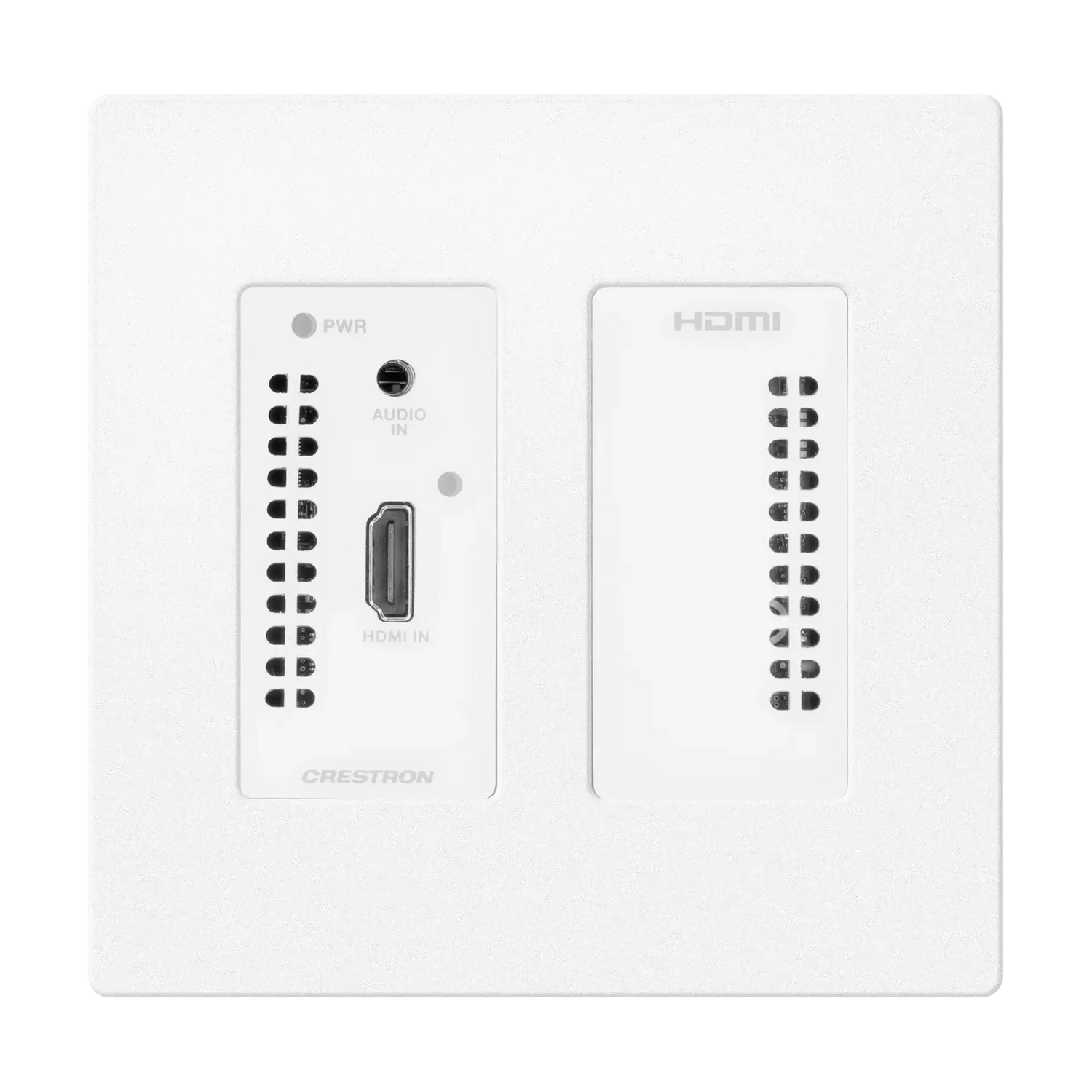

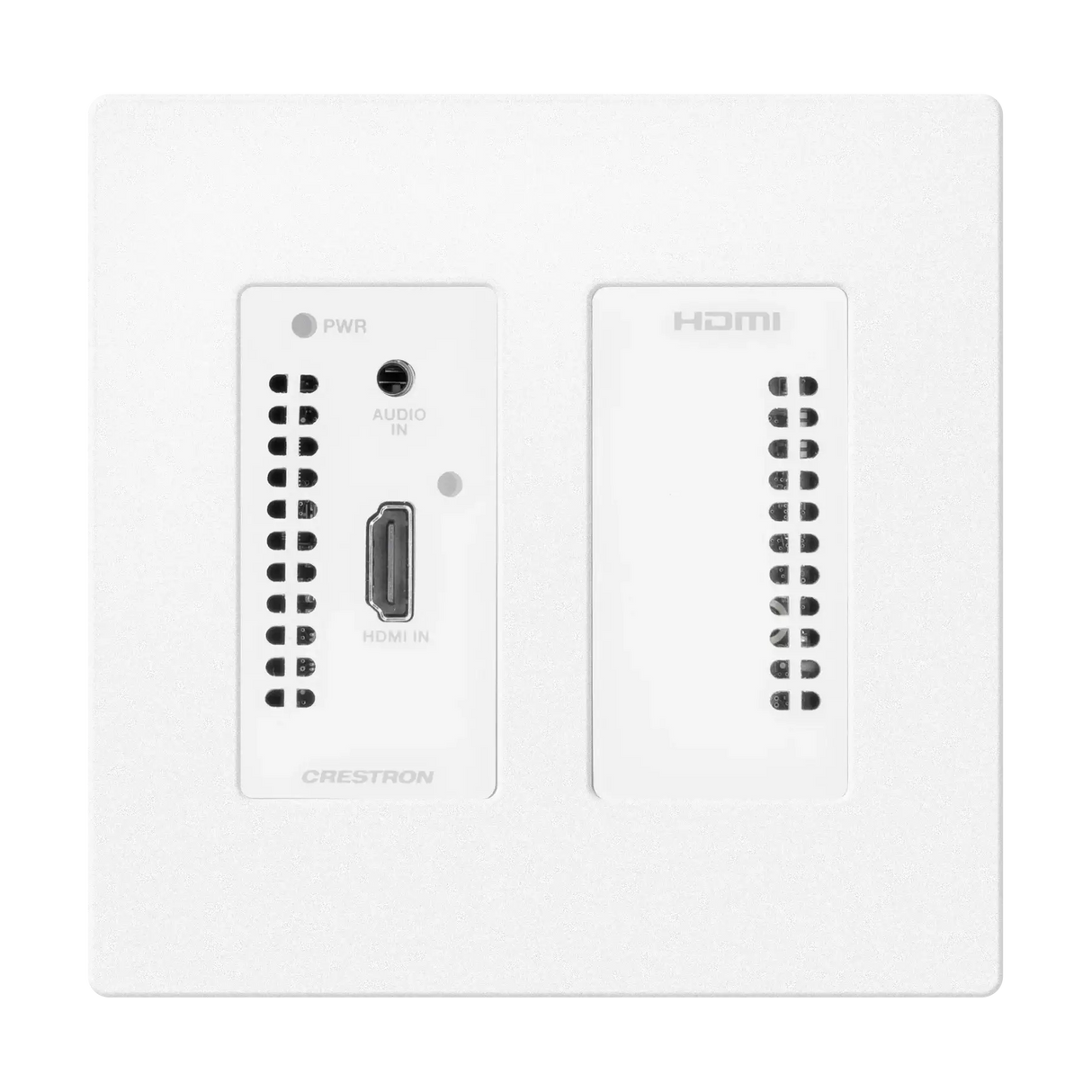

Two-Gang Wall Plate Design

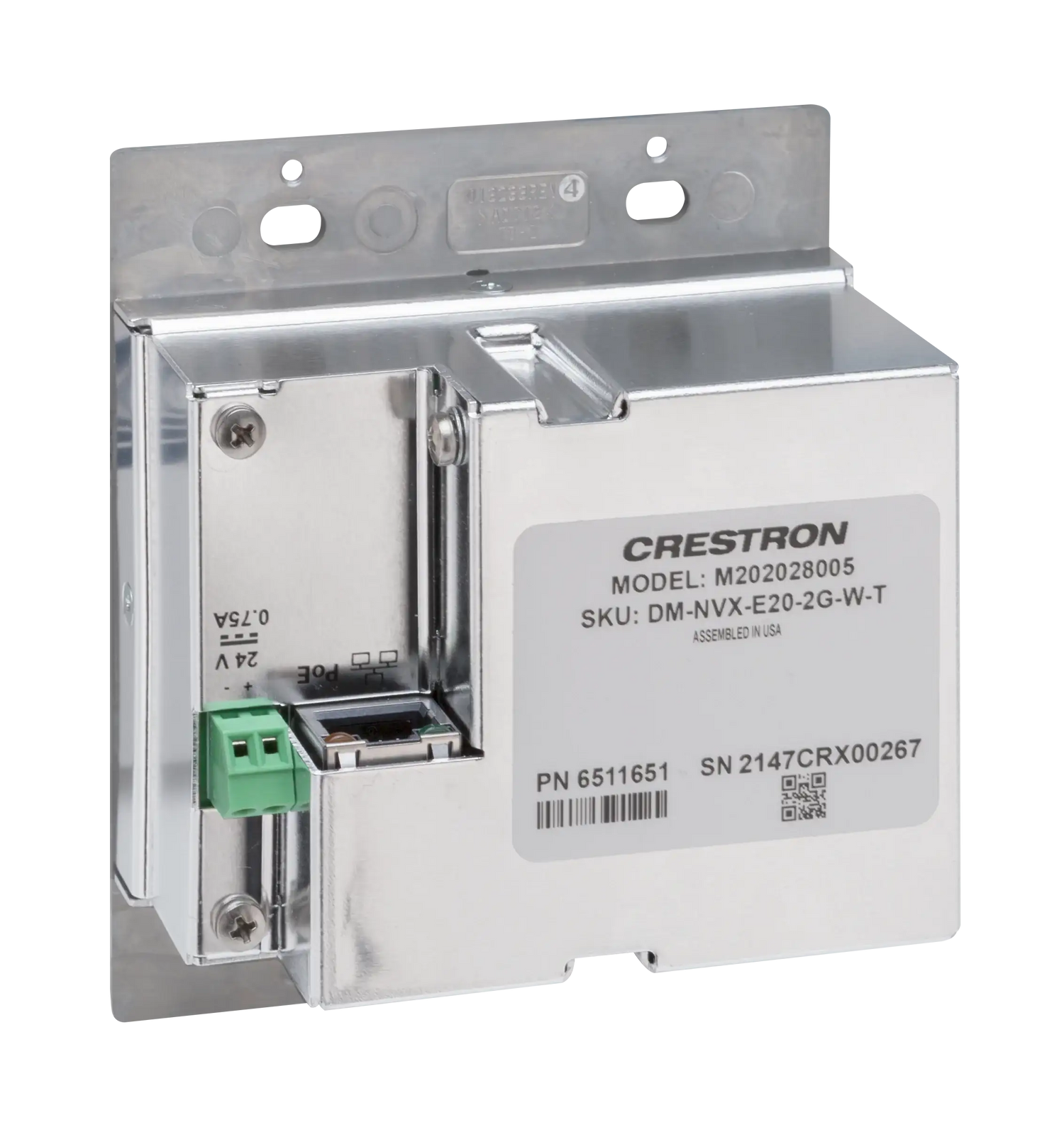

The DM-NVX-E20-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). Power is provided via PoE or the optional PW-2407WUL power pack (sold separately).⁴

For additional information about DM NVX technology and the DM NVX product family, refer to the DM NVX web page at www.crestron.com/nvx.
