Crestron Microphone Pod - CCS-UCA-MIC

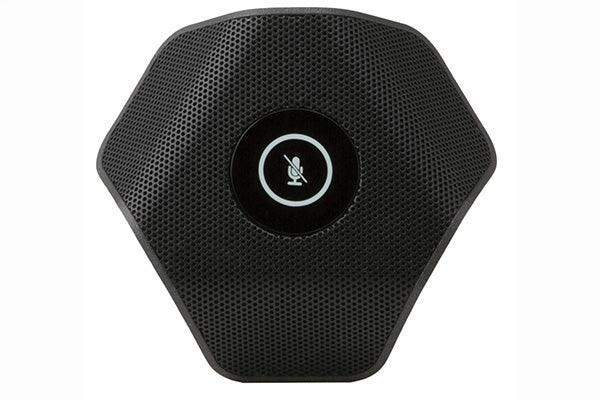

The CCS-UCA-MIC is a low-profile extension microphone pod designed exclusively for use with a Crestron Flex Tabletop Conference System.1 Up to two mic pods may be connected to a single conference device to extend its pickup range to cover large tables.
Optionally, two microphone pods may be daisy-chained, or connected to the mic pod ports on the rear of the conference device, using the cables provided with each microphone pod.
Features
- Attractive, low-profile design
- 360° pickup with 20 ft (6 m) range
- Microphone mute button and indicator
- Home-run or daisy-chain wiring options
- 12 ft (3.7 m) cable included
- Powered via the tabletop conference device
- CCS-UCA-MIC microphone pods are not compatible with UC-2 devices.
Specification
| Communications | |
| A²B bus protocol, slave, synchronous data, multichannel I2S/TDM to I2S/TDM | |
| Audio | |
| Microphone | Triple mic array with (3) cardioid electret elements |
| Pickup Range | 20 ft (6 m) typical, 360° |
| Buttons & Indicators | |
| Mic Mute | (1) Capacitive button with bi-color LED, button switches between mute and unmute (affects all system mics), illuminates red when the mic is muted, illuminates green when the mic is unmuted if a USB device is connected to the conference device or a SIP call is active |
| Connectors | |
| IN | (1) RJ9 4P4C connector, female; For connection to the conference device or to the first CCS-UCA-MIC in a daisy chain; 12 ft (3.7 m) cable included |
| OUT | (1) RJ9 4P4C connector, female; For connection to the second CCS-UCA-MIC in a daisy chain (not included) |
| Power | |
| Powered via the conference device through the A²B bus. The conference device must be powered using the PW-2420RU power pack provided with all compatible conference devices. | |
| Environmental | |
| Operational Temperature | 32° to 95° F (0° to 35° C) |
| Storage Temperature | -4° to 160° F (-20° to 70° C) |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | |
| Height | 0.97 in (25 mm) |
| Width | 3.81 in (97 mm) |
| Depth | 3.42 in (87 mm) |
| Weight | |
| 6 oz (170 g) | |
| Compliance | |
| CE, IC, UL 60950-1, FCC Part 15 class B, ICES-003 Issue 6 Class B, EN 55022:2010, EN 55024:2010, IEC60950-1:2005, IEC60950-A2:2013, EN60950-1:2006, EN60950-A2:2013, CAN/CSA-C22.2 | |
