Crestron CCS-CAM-USB-F-400 Huddly IQ™ Collaboration Camera

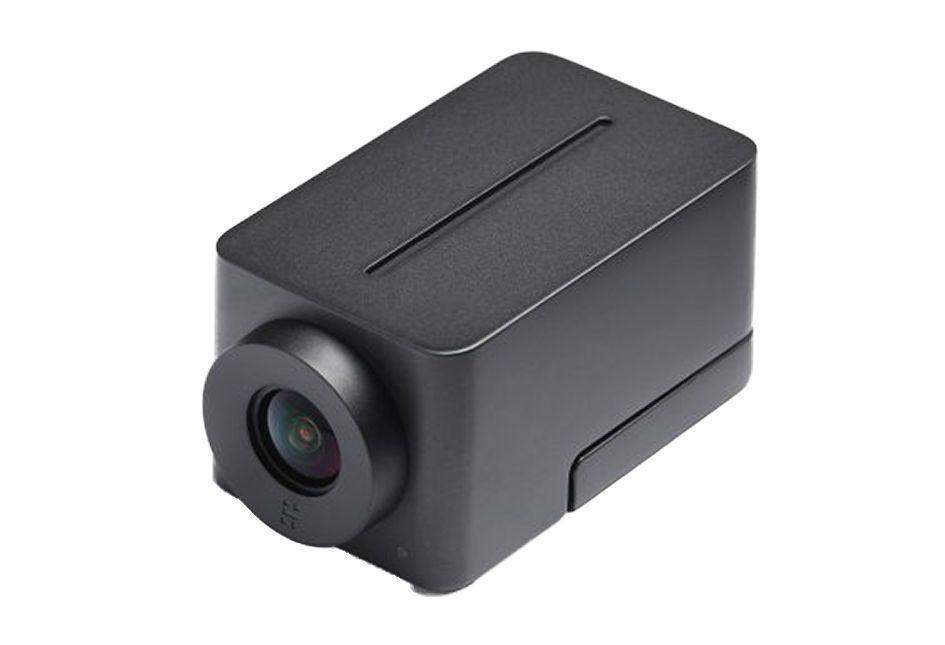

Compact in size, yet tremendous on performance, the Huddly IQ™ camera (sold as model CCS‑CAM‑USB‑F‑400) features an ultra wide‑angle 150° diagonal field of view to capture an entire conference room with Full HD 1080p resolution. High precision aspherical optics, a 12 MP CMOS sensor, and advanced video processing ensure an immersive, crystal clear video image free from light or noise artifacts or optical aberrations. The camera has no moving parts, ensuring quiet operation, reliability, and accuracy.
Advanced Video Processing
The video processing engine uses real-time scaling, dynamic light optimization, and visual noise filtering to deliver excellent image quality. Genius Framing digital autozoom intelligently detects the people in the room and frames them perfectly at all times for an optimal view with no loss of resolution. With Genius Framing, there’s no need to control the camera manually or rely on stored presets. People counting analytics detects and reports the number of people in frame for analysis by room utilization software2. The camera's software is also upgradeable, allowing for regular enhancements and feature updates.
Plug & Play Connectivity
A USB connector3 provides high speed USB connectivity, a power connection, and plug & play compatibility when used with Crestron Flex UC video conference systems.
Versatile Mounting
The camera's aluminum unibody construction is tripod compatible and features an integrated display mount that allows the camera to be installed in different locations. The Auto-Flip feature automatically rotates the image 180° when the camera is installed upside down, providing even more options for installation.
Features
- Full HD 1080p video quality
- Ultra wide-angle 150° diagonal field of view
- High precision, six element aspherical glass lens reduces spherical aberrations
- Advanced video processing engine provides excellent image quality
- 4x lossless digital zoom, pan, and tilt1
- Genius Framing digital autozoom
- People counting analytics2
- Auto-Flip Automatic 180° image rotation
- Silent operation with no moving parts
- USB 3.1 connectivity3
- Plug & play compatible with Crestron Flex systems
- USB powered
- Upgradable software
- 3D noise reduction and bias compensating spatio-temporal noise filtering
- Integrated display mount, tripod mount compatible
Specs
| Optics & Processing | |
| Image Sensor | 12 Megapixel 1/2.3 CMOS sensor |
| Lens | High precision, ultra wide angle, six element aspherical glass lens |
| Field of View | 150º diagonal, 120º horizontal, 90º vertical |
| Aperture | f/2.8 |
| Processor | Neural Compute Engine based on Intel® Movidius™ Myriad™ X video processing unit |
| Pan/Tilt/Zoom | 4x lossless digital zoom, pan, and tilt1 |
| Autozoom | Genius Framing automatic lossless digital zoom intelligently frames around people in the room |
| Auto-Flip | Automatic 180° image rotation when mounted upside down |
| Dynamic Light Optimization | Auto-adjusts light levels and white balance |
| Noise Reduction | 3D noise reduction, bias compensating spatio-temporal filtering, wide area chroma filtering, flicker elimination |
| Scaling | Real-time scaling, dewarping, and perspective correction |
| People Counting | Detects and reports the number of people in frame2 |
| Video | |
| Output Signal Type | USB UVC 1.1 |
| Output Resolution | HD 1080p @ 30 fps |
| Communication | |
| USB | USB 3.1; Plug & play compatible with Crestron Flex UC video conference systems, major computer operating systems, and other USB UVC class hosts |
| Connector | |
| USB-C | (1) USB Type-C® connector,3 female; USB 3.1 port |
| Power | |
| Power Requirement | 5 VDC, 900 mA, via USB |
| Construction | |
| Housing | Aluminum unibody |
| Mounting | Integrated mounting hinge for attachment to a display device; 1/4-20 threaded fitting for tripod mount |
| Dimensions | |
| Height | 1.40 in (36 mm) |
| Width | 1.60 in (41 mm) |
| Depth | 2.82 in (72 mm) |
| Weight | |
| 4.2 oz (120 g) | |
| Compliance | |
| CE, IC, FCC Part 15 Class B digital device | |
