Crestron Control Port Expansion Module - C2N-IO

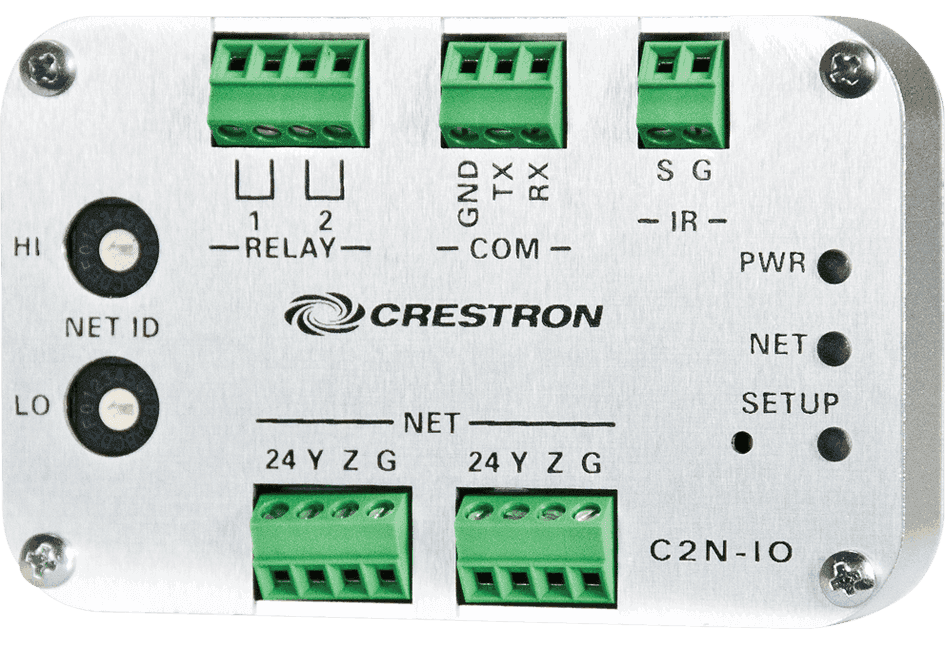

The C2N-IO is a very compact device that adds control ports to any Crestron® 2-Series or 3-Series® control system. It connects via the Cresnet® control network and provides one RS-232, one IR, and two relay control ports.[1] It can be mounted to any flat surface using two screws or adhesive reclosable fastener (3M® Dual Lock® included).
The C2N-IO is ideally designed for use with a Crestron touch screen control system ( TPCS-4SM, TPCS-4SMD, or TSCW-730), providing an advanced wall mount control package that fits in a 2-gang US or UK electrical box. The C2N-IO can be mounted inside the electrical box behind the touch screen, or it can be installed remotely requiring just one Cresnet control cable for power and communications.
Features
- Fits within a 2-gang wall box behind the TPCS-4SM(D) or TSCW-730
- Provides 1 RS-232, 1 IR/serial, and 2 relay ports [1]
- Compatible with any Crestron® 2-Series or 3-Series® control system
- Interfaces via the Cresnet® control bus
- 24 Volt DC Cresnet powered
- Surface mount bracket included
Specification
C2N-IO Specifications
| Communications | ||
| Cresnet® | Cresnet slave device, 2-Series and 3-Series® compatible | |
| RS-232 | Supports 2-way device control and monitoring up to 115.2k baud with software handshaking [1] | |
| IR/Serial | Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud | |
| Connectors | ||
| RELAY 1 – 2 | (1) 4-pin captive screw terminal block comprising (2) normally open, isolated relays; Rated 1 Amp, 30 Volts AC/DC; Solid-state arc suppression across contacts |
|
| COM | (1) 3-pin captive screw terminal block, bidirectional RS-232 port [1]; Up to 115.2k baud; software handshaking support |
|
| IR | (1) 2-pin captive screw terminal block, IR/Serial output port; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud |
|
| NET | (2) 4-pin captive screw terminal blocks; Cresnet slave ports, paralleled |
|
| Controls & Indicators | ||
| NET ID | (2) Rotary switches for manually setting Cresnet ID; '00' setting enables touch-settable ID (TSID) |
|
| PWR | (1) Green LED, indicates operating power supplied via Cresnet control network | |
| NET | (1) Amber LED, indicates communication with Cresnet system | |
| SETUP | (1) Red LED and (1) recessed miniature pushbutton for TSID | |
| Power Requirements | ||
| Cresnet Power Usage | 2.5 Watts (105 mA @ 24 Volts DC) | |
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Heat Dissipation | 3.5 BTU/hr | |
| Enclosure | ||
| Metal, freestanding or surface mount, surface mount bracket and 3M® Dual Lock® reclosable fastener included, fits inside a 2-gang electrical box or 2-gang UK (BS 4662) electrical box, 1.38 in (35 mm) minimum internal box depth required for C2N-IO and TPCS-4SM(D) or TSCW-730 combined | ||
| Dimensions | ||
| Height | 2.25 in (58 mm) | |
| Width | 3.50 in (89 mm), 4.38 in (112 mm) with bracket | |
| Depth | 0.83 in (21 mm) | |
| Weight | ||
| 2.7 oz (75 g) | ||
