SoundTube IPD-SM500I-II IP-Addressable Speaker in Black
SoundTube IPD-SM500I-II IP-Addressable Speaker in Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
SoundTube IPD-SM500I-II IP-Addressable Speaker in Black
SoundTube IPD-SM500I-II IP-Addressable Speaker in Black

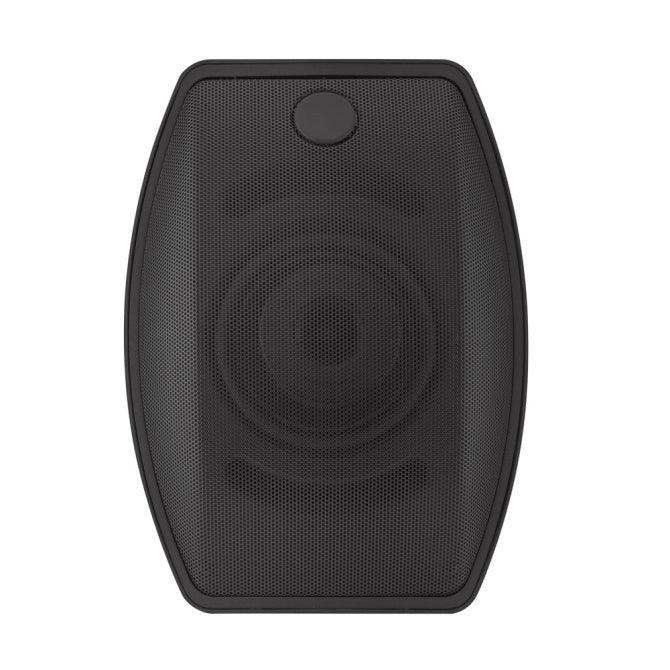

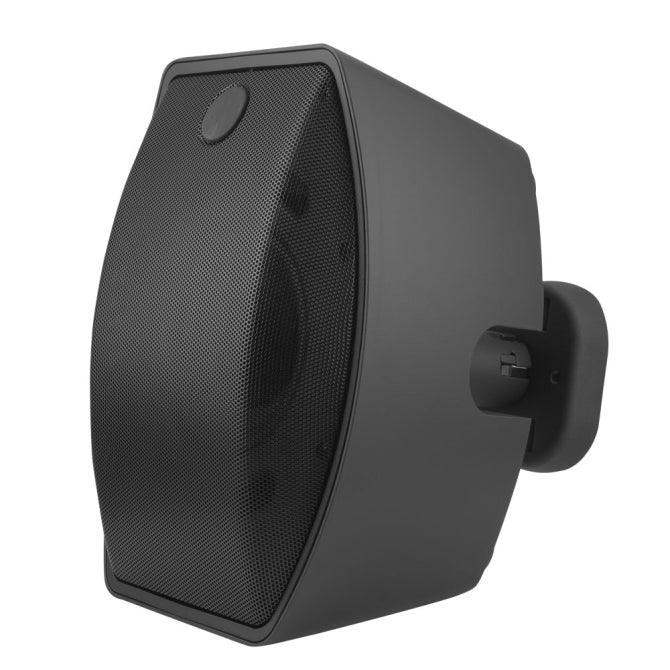

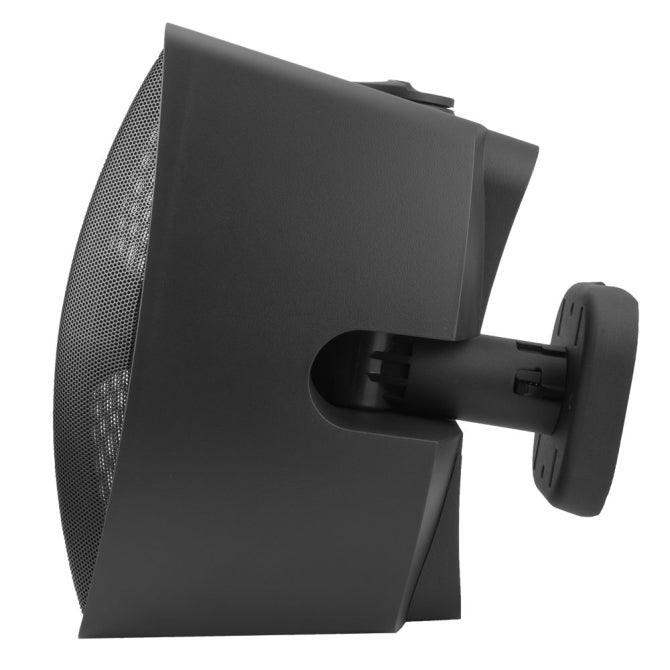

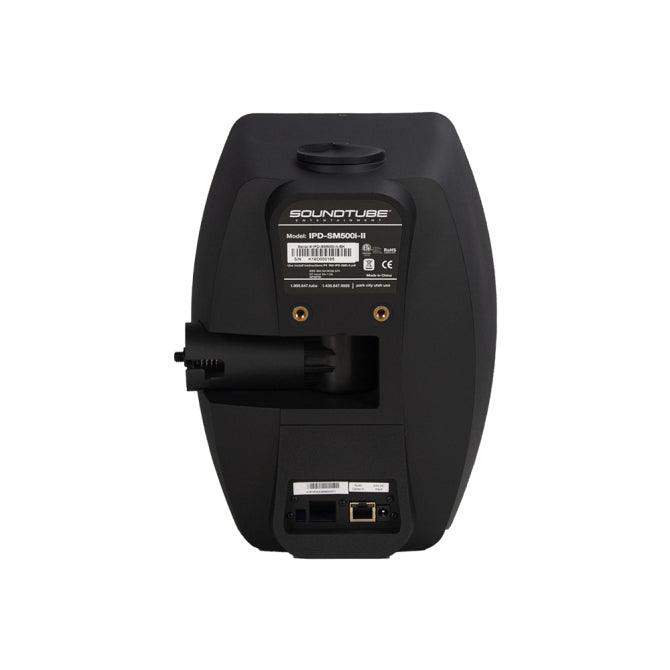

Dante®-enabled surface-mount speaker incorporating one 5.25-inch polypropylene woofer (134 mm) and one 1.0-inch (25.4 mm) convex titanium tweeter with BroadBeam® waveguide in an injection-molded, glass fiber reinforced ABS enclosure. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware for the IPD-SM500i-II is included and features SoundTube®'s proprietary Stealth™ bracket mounting system, providing unlimited directional aiming and a low profile, with a security knob to reduce tampering after placement. The system includes a detachable mounting plate designed for premounting in either wall or pole applications.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Specs
| Color | Black |
|---|---|
| UPC | 748252172785 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Depth | 10.48 in / 266.3 mm |
| Height | 11.4 in / 289.56 mm |
| Width/Diameter | 8.36 in / 212.26 mm |
| Shipping Weight | 9.5 lbs / 4.3 kg |
| Carton Height | 12.25 in / 311.15 mm |
| Carton Length | 13.25 in / 336.55 mm |
| Carton Width | 10.75 in / 273.05 mm |
| Certifications | CE, RoHS, UL2043, UL60065 |
| Enclosure Properties | ABS Glass Fiber Reinforced |
| Included Accessories | Mounting Hardware, Safety Cable |
| Optional Accessories | Black Grille (GRL-SM500-II-BK) | 10" Safety Cable (AC-SM-SC10) | Black Mounting Bracket (AC-SM5-II-WP-BK) | Connector (EUROBLOCK) | Black Weatherboot (WEATHERBOOT-S-BK) |
| Source Inputs | RJ45 Ethernet Port |
| Coverage Angle (±6dB @ 2kHz) | 75° Horizontal / 90° Vertical |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.6 and 9.8 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6 dB and 9.9 dB |
| Frequency Response (± 10 dB) | 60 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 86 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.0 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 98 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Convex Titanium w/ BroadBeam® Waveguide |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
