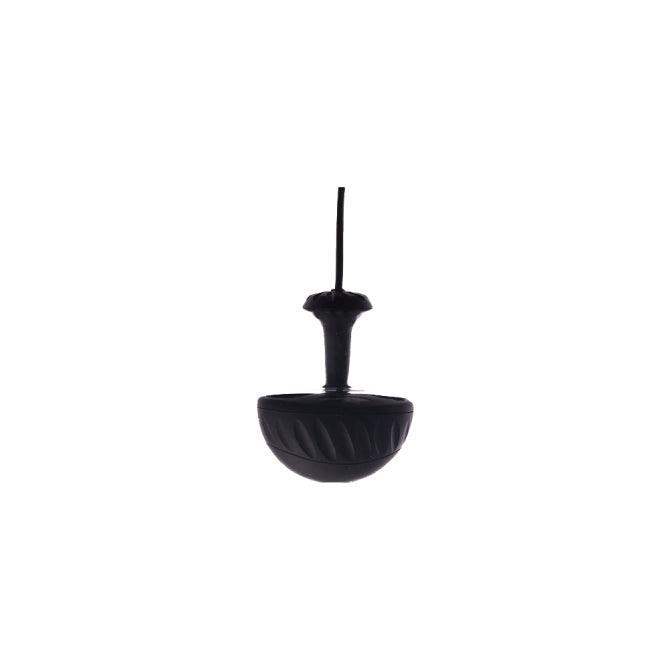

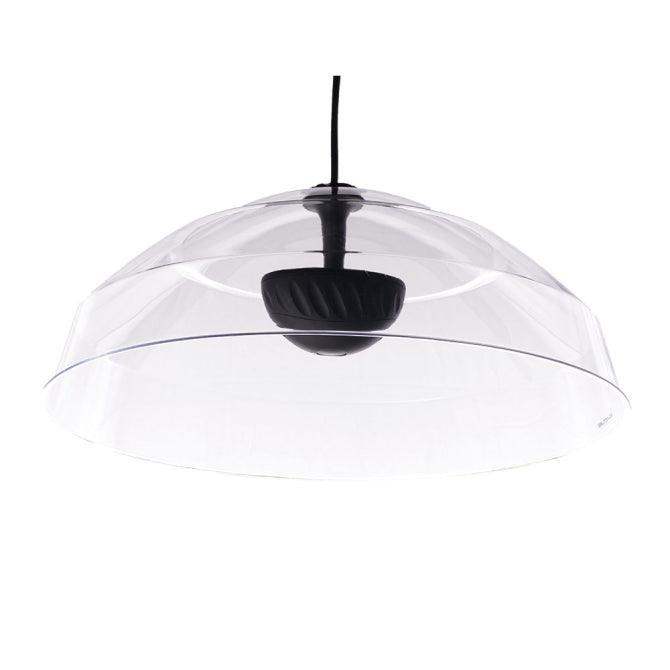

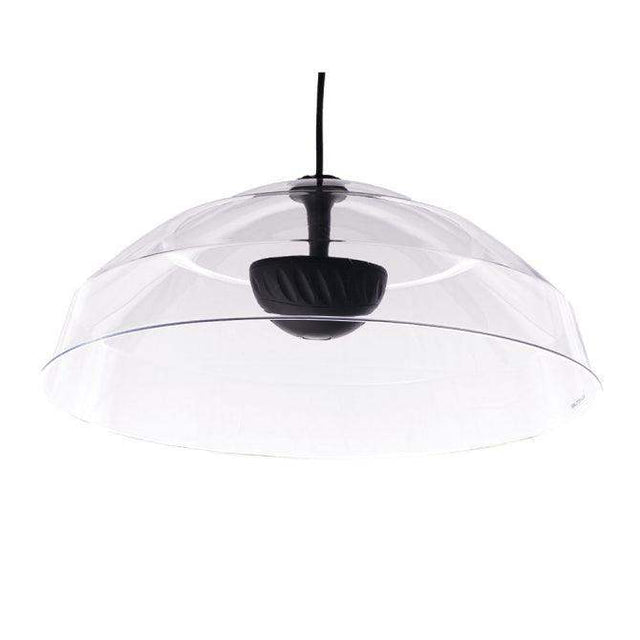

Soundtube FP6030-II 30" Stereo Dual-Parabolic SoundDome Speaker in Clear
Soundtube FP6030-II 30" Stereo Dual-Parabolic SoundDome Speaker in Clear is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Soundtube FP6030-II 30" Stereo Dual-Parabolic SoundDome Speake...

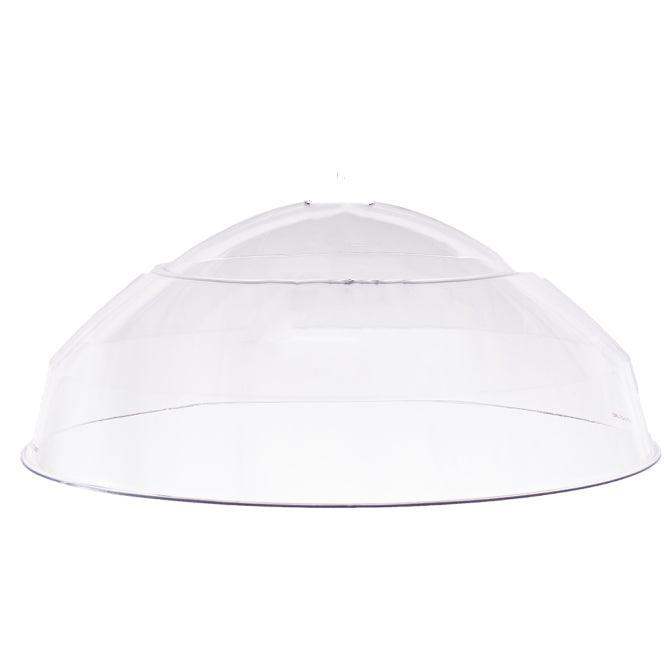

The FP6030-II delivers targeted audio in a unique package. Features: Patented Dual-Parabolic™ dispersion control technology provides a targeted audio footprint with true stereo separation. Twin 1.00 in (25 mm) concave aluminum high-excursion drivers in individually sealed compartments for stereo or mono music and messaging. Patented ZeroReflection™ enclosure technology for accurate sound reproduction. Narrow 45 coverage angle for sharp focus (average 2 - 10 kHz, independently verified). 30.75 in (781.1 mm) custom-molded PETG clear polymer dome for minimal visual impact. User-selectable 350 Hz high-pass filter. Single-point balanced mounting for easy and clean-looking installs. Ships with clear dome, custom colors available. Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable that includes four 16-gauge inputs and a CAT V cable. Optional modules include Motion Sensor (FP-Motion), LED light (FP-Light), optional 15-volt, 3-amp power supply necessary for all module accessories (AC-PS-1530). Optional electronic accessories include 10 and 20-watt transformers with junction box for 25, 70.7, and 100-volt applications (AC-JB10-XFMR, AC-JB20-XFMR) and an external amplification unit with power supply (SA202-RDT) for use with any FP module.
Additional optional accessories include: wall bracket, sound sleeves and rigid mount adaptor. Ships as individual unit, bulk shipping available.
Specs
| Color | Clear |
|---|---|
| UPC | 752830451988 |
| Manufacturer | SoundTube |
| Manufacturer's Category | FP Focus Point Parabolic Series |
| Height | 13.1 in / 332.7 mm |
| Width/Diameter | 30.75 in / 781.1 mm |
| Shipping Weight | 11.02 lbs / 5 kg |
| Certifications | CE, RoHS |
| Enclosure Properties | PETG, Polystyrene, Sealed |
| Included Accessories | Hanging Hardware, Mounting Hardware |
| Optional Accessories | Motion Kit (FP-MOTION MODULE)|Light Kit (FP-LIGHT MODULE)|Wall Mount Bracket (AC-WB4)|White Sound Sleeve (AC-SFP20-WH)|Black Sound Sleeve (AC-SFP20-BK)|Rigid Mount Adaptor (AC-FP6-RMA)|10W Transformer J-Box (AC-JB10-XFMR)|20W Transformer J-Box (AC-JB20-XFMR) |
| Coverage Angle (±6dB @ 2kHz) | 55° |
| Crossover Frequency | 75 Hz or 350 Hz switchable |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 23.4 and 27.5 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 12.4dB and 14.4dB |
| Frequency Response (± 10 dB) | 130 Hz - 22 kHz (200 Hz with high-pass filter) |
| Frequency Response (± 3 dB) | 170 Hz - 22 kHz (300 Hz with high-pass filter) |
| Grille Properties | High-Impact Polystyrene |
| Low Frequency Voice Coil | 0.81 in / 20.5 mm |
| Max. Continuous Power RMS | 15W |
| Max. Program Power | 30 W |
| Minimum Impedance (Ω Ohms) | 5.4 Ω |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Fullrange Driver | (2) 1" Aluminum High Excursion |
| Sensitivity dB @ 1W/1M | 75 dB |
| Sensitivity dB @ 2.83V/1M | 75 dB |
| Tap Selector | Rotary Switch J-Box |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 1.25W/10W/30W |
