Soundtube 6.25" IP-Addressable, Dante Addressable, Speaker in White
Soundtube 6.25" IP-Addressable, Dante Addressable, Speaker in White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Soundtube 6.25" IP-Addressable, Dante Addressable, Speaker in ...

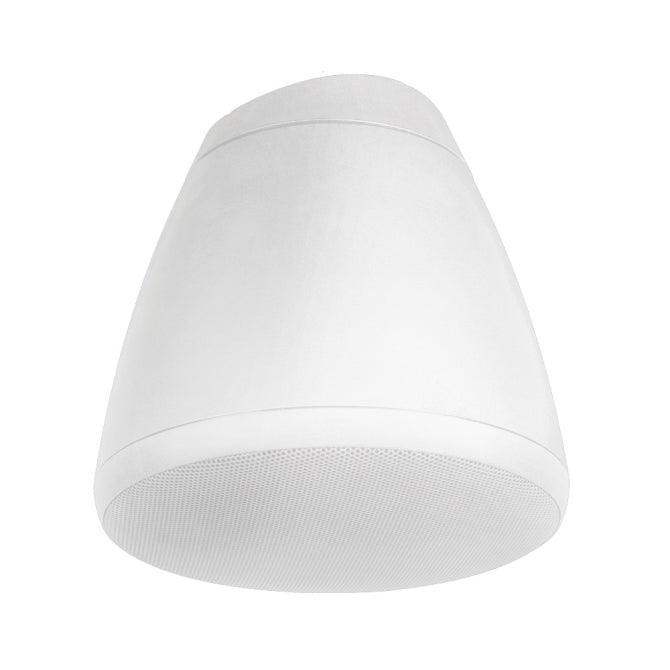

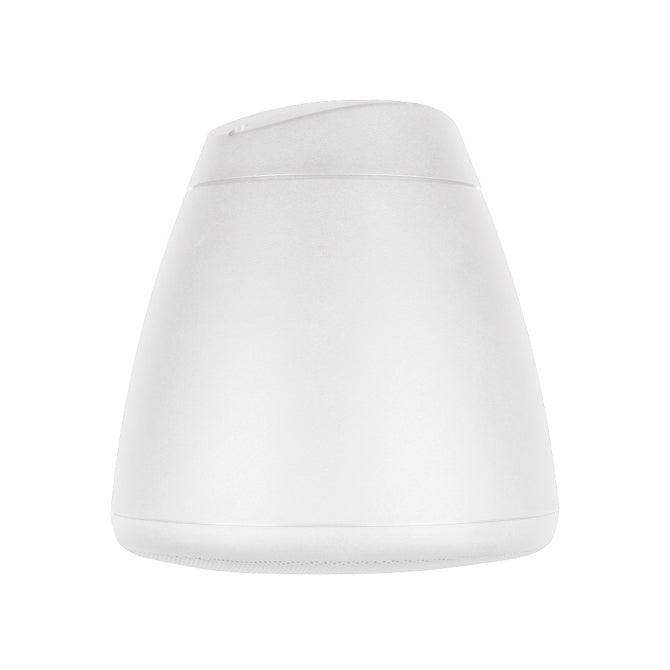

SoundTube IPD-RS62-EZ IP-Addressable Speaker in White
Dante®-enabled coaxial pendant speaker incorporates one 6.5 inch (165 mm) coaxial driver with BroadBeam Ring™ technology for consistently smooth high frequency. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. Includes an aluminum grille with protective powder coated finish. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Specs
| Color | White |
|---|---|
| UPC | 748252177179 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Height | 10.4 in / 264.2 mm |
| Width/Diameter | 10.08 in / 256 mm |
| Shipping Weight | 8.9 lbs / 4.04 kg |
| Carton Height | 13.5 in / 342.9 mm |
| Carton Length | 12.25 in / 311.15 mm |
| Carton Width | 12 in / 304.8 mm |
| Certifications | CE, RoHS, UL60065, FCC |
| Enclosure Properties | ABS Glass Fiber Reinforced |
| Included Accessories | Cover Plate, Hanging Hardware, Weather Plug |
| Optional Accessories | White Grille (GRL-RS62-EZ-WH) | 10' Hanging Cable (AC-RS-HH-10) | 20' Hanging Cable (AC-RS-HH-20) | 50' Hanging Cable (AC-RS-HH-50) | White Mounting Bracket (AC-RS-SM5-WH)|Beam Clamp (AC-BC1) | Forged Eye Bolt (AC-FE1) | White Split Loom Tubing (AC-SLT-10-WH) | Snap Link (AC-SL1) |
| Source Inputs | RJ45 Ethernet Port |
| Coverage Angle (±6dB @ 2kHz) | 105° |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.6 and 7.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.5 dB and 8.5 dB |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 100 Hz - 20 kHz |

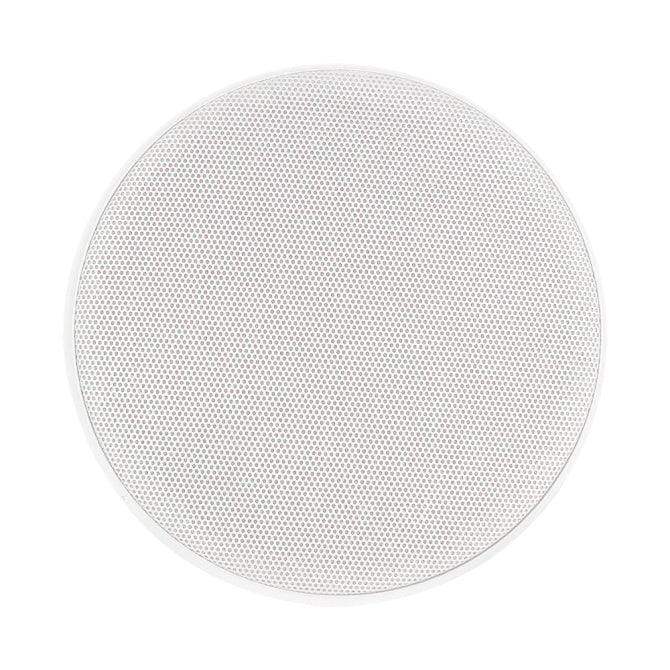

| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max SPL @ 1M | 104 dB |
| Max. Program Power | 64 W |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring® |
| Woofer Driver | 6.5" Polypropylene Cone w/ Butyl Rubber Surround |
| Tap Selector | Rotary Switch |
