Renkus-Heinz CX82 Non‐Powered, 500W Pgm @ 8 Ohms; Sensitivity 99dB 1W/1m, whole space
Renkus-Heinz CX82 Non‐Powered, 500W Pgm @ 8 Ohms; Sensitivity 99dB 1W/1m, whole space - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Renkus-Heinz CX82 Non‐Powered, 500W Pgm @ 8 Ohms; Sensitivity 99dB ...

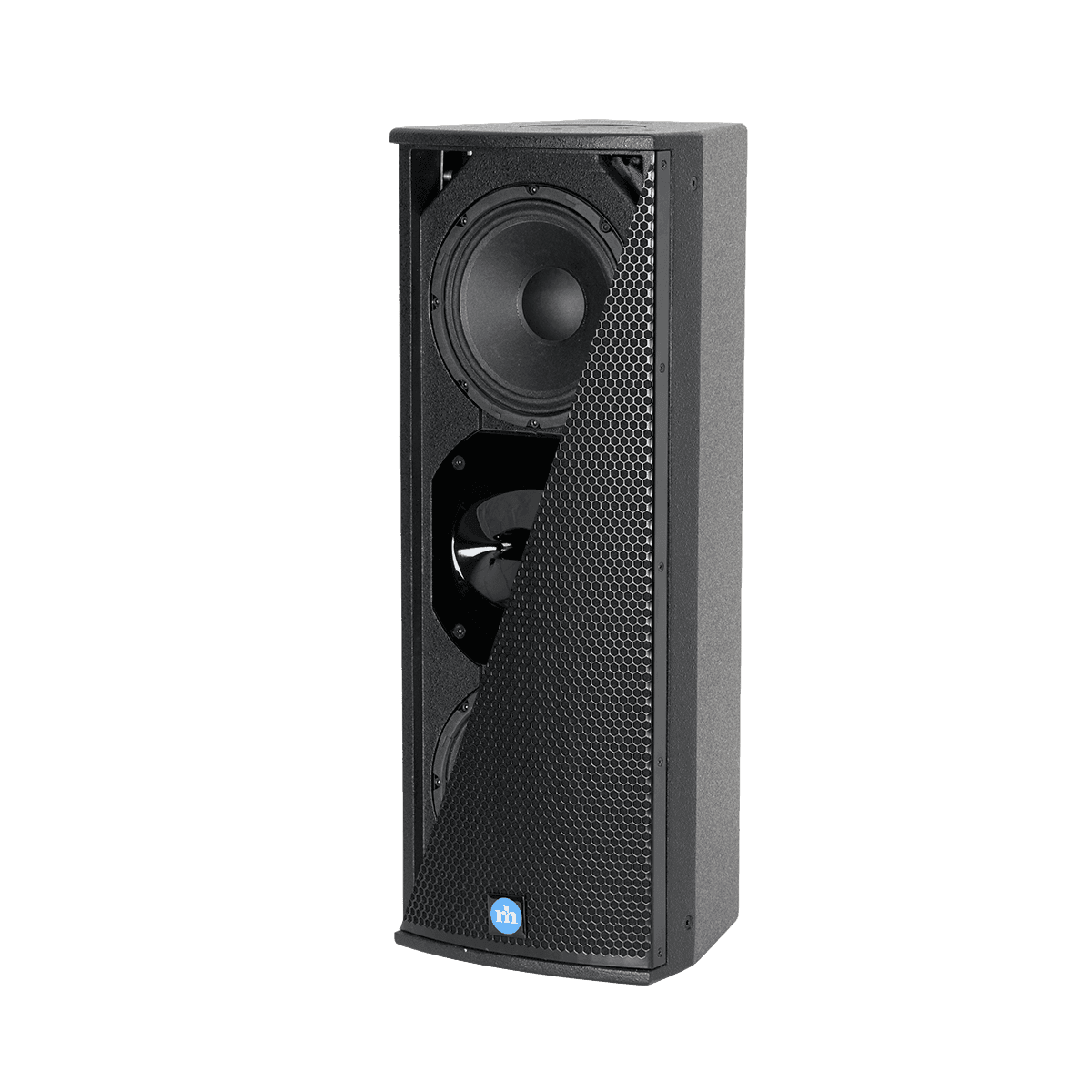

Two-Way Complex Conic Loudspeaker System
The C82 features dual 8-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.
C Series loudspeakers employ advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality. Cutting-edge driver technology and unique innovations like our Complex Conic horns deliver natural sounding music and intelligible speech.
Versatile enclosure designs, combined with a wide range of mounting options and associated hardware, provide unrestricted flexibility for both portable and installed applications. Wherever audiences and operators demand superior performance and ease of use, C Series loudspeakers are the choice for unequalled value.
Features
• Miniaturized Design
Outstanding, full-range 90 Hz to 20 kHz performance in a extremely compact, space-saving design.
• Exclusive Complex Conic Design
Complex Conic Horn provides superior pattern control with low distortion.
• Coverage Pattern
Complex Conic Horn provides smooth 120º x 60º coverage.
• 1-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Dual Heavy-Duty 8-inch Woofers
With carbon fiber cones easily handles 500 Watts of program power.
• Built-in Crossover
Eliminates need for a separate electronic crossover and bi-amplification.
Applications
• Virtually any application where size is a critical issue and high output and outstanding sonic performance is required.
• Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings, under and
over balconies, etc.
• Foreground music systems in shopping malls, retail stores, offices, etc.
• Multi-channel playback systems in dance clubs (with optional subwoofers), compact floor monitors, cue loudspeakers for live music, etc.
Specs
Technical Information |
||
| Sensitivity: | CX82 | 99 dB (1W/1m) |
| Max SPL: | CX82 | 129 dB Peak |
| CA82-A CA82-RN CA82-RD |
126 dB Peak | |
| Dispersion: | CX82 CA82-A CA82-RN CA82-RD |
120° x 60°, rotatable horn, configured for speaker horizontal application, (90° x 60° available for purchase) |
| Freq. Response: | CX82 CA82-A CA82-RN CA82-RD |
± 3 dB, 90 Hz to 20 kHz |
| HF Driver: | CX82 CA82-A CA82-RN CA82-RD |
1″ Titanium driver, model SSD1445-16; 20 W AES |
| LF Driver: | CX82 CA82-A CA82-RN CA82-RD |
Dual 8″ woofer, model SSL8-20; 1″ VC; 125 W AES @ 16 Ohms |
| Power Rating: | CX82 | 250 W AES @ 8 Ohms 500 W Pgm @ 8 Ohms |
| CA82-A CA82-RN CA82-RD |
See SA625 Amplifier | |
| Enclosure: | CX82 CA82-A CA82-RN CA82-RD |
Poplar Ply, perforated metal grille |
| Connectors: | CX82 | Screw terminals & looping 4-pin Neutrik Speakon style connectors |
| CA82-A CA82-RN CA82-RD |
See SA625 Amplifier | |
| Finish: | CX82 CA82-A CA82-RN CA82-RD |
Black or White Paint |
| Hardware: | CX82 CA82-A CA82-RN CA82-RD |
12-point Universal Mounting Hardware (Metric M6 threads) M10 U-bracket attachment points |
| Dimensions: | CX82 CA82-A CA82-RN CA82-RD |
28-1/2″ H x 10-5/16″ W x 10-1/2″ D 724 mm H x 262 mm W x 267 mm D |
| Weight: | CX82 CA82-A CA82-RN CA82-RD |
34 Lbs / 15.4 kg, Net |
SA625 Amplifier Specifications |
||
| Audio Connections: | CA82-A | 2 x XLR-3, In & Loop-out, Analog |
| CA82-RN | 2 x XLR-3, In & Loop-out, Analog & AES | |
| CA82-RD | 2 x XLR-3, In & Loop-out, Analog and AES 2 x RJ45 Dante Primary & Secondary Ethernet |
|
| Network Connections: | CA82-RN | 2 x RJ45, Looping Ethernet/RHAON |
| CA82-RD | 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.) | |
| Maximum Input Level: | CA82-A | +22 dBu, Analog |
| CA82-RN CA82-RD |
+22 dBu, Analog, 0 dBFS digital | |
| User DSP: | CA82-RN CA82-RD |
Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms. |
| Software: | CA82-RN CA82-RD |
RHAON II |
| Latency: | CA82-A CA82-RN |
6.25 ms |
| CA82-RD | 6.25 ms + Dante transport latency | |
| Power Output: | CA82-A CA82-RN CA82-RD |
LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers. |
| Mains Voltage: | CA82-A CA82-RN CA82-RD |
100-240 volts, 50/60 Hz auto-switching |
| Power Consumption: | CA82-A CA82-RN CA82-RD |
Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting) |
| Power Connector: | CA82-A CA82-RN CA82-RD |
Neutrik powerCON TRUE-1 |
| Temprature Limits: | CA82-A CA82-RN CA82-RD |
Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C. |
