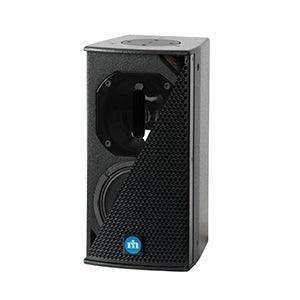

Renkus-Heinz CX61 2‐Way, Full Range Loudspeaker 6.5" LF, 1" HF
Renkus-Heinz CX61 2‐Way, Full Range Loudspeaker 6.5" LF, 1" HF - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Renkus-Heinz CX61 2‐Way, Full Range Loudspeaker 6.5" LF, 1&quo...
Compact 6.5-inch woofer + 1-inch titanium HF driver
Sound that makes performances and audiences truly come alive doesn’t come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.
The C61 features a 6.5-inch heavy-duty woofer and a 1-inch Extended Range Titanium HF Driver.
CX61 Non-Powered Loudspeakers
For use with external amplification
Every C Series loudspeaker is engineered by Renkus-Heinz to unrivaled standards of quality and innovation. Before we ship them, your loudspeakers must meet our exacting requirements, for performance that will make you proud and durability that will keep you sounding great.
Features
• High Volume Output, Small Enclosures
100 Hz to 18 kHz ±3 dB: Outstanding, full-range performance in an extremely compact, space-saving design.
• Exclusive 150° by 60° Complex Conic Design
Provides constant beamwidth/directivity without the problems of conventional rectangular horns.
• 1-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high-frequency performance to 18 kHz and beyond.
• Heavy-Duty 6.5-inch Woofer
Easily handles 120 Watts of program power.
Applications
Virtually any application where size is a critical issue and outstanding sonic performance is required.
Permanent Installations
• Ideal for fills, delays, distributed and playback systems
• Churches, schools, sports venues, board rooms, malls, transportation venues, retail environments
Portable Applications
• Ideal solution for portable, compact, full-range sound reinforcement requirements.
• Performing artists, rental A/V, schools, churches, etc.
Specs
Technical Information |
||
| Sensitivity: | CX61 — 94 dB (1W/1m) | |
| Max SPL: | 120 dB peak | |
| Dispersion: |
|
150° H x 60° V, rotatable horn, configured for speaker horizontal application |
| Freq. Response: |
|
± 3 dB, 100 Hz to 20 kHz |
| HF Driver: |
|
1″ Titanium driver, model SSD1445-16; 20 W AES |
| LF Driver: |
|
6.5″ woofer, model SSL6.5-18; 1″ VC; 100 W AES @ 16 Ohms |
| Enclosure: |
|
Poplar Ply, perforated metal grille |
| Power Rating: | CX61 — 100 W AES @ 16 Ohms ; 200 W Pgm @ 16 Ohms | |
| See SA625 Amplifier | ||
| Connectors: | CX61 — Screw terminals & looping 4-pin Neutrik SpeakOn style connectors | |
| See SA625 Amplifier | ||
| Finish: | Black or White Paint | |
| Hardware: | 12-point Universal Mounting Hardware (Metric M6 threads) M10 U-bracket attachment points |
|
| Dimensions: | 16″ H x 7-7/8″ W x 9-3/8″ D 200 mm H X 406 mm W X 238 mm D |
|
| Weight: | CX61 — 20 Lbs / 9 kg, Net | |
| CA61(-A, -RN, -RD) –19Lbs / 8.6 kg Net | ||
SA625 Amplifier Specifications |
||
| Audio Connections: | CA61-A — 2 x XLR-3, In & Loop-out, Analog | |
| CA61-RN — 2 x XLR-3, In & Loop-out, Analog & AES | ||
| CA61-RD
2 x XLR-3, In & Loop-out, Analog and AES |
||
| Network Connections: | CA61-RN — 2 x RJ45, Looping Ethernet/RHAON | |
| CA61-RD — 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.) | ||
| Maximum Input Level: | CA61-A — +22 dBu, Analog | |
| CA61(-RN, -RD) +22 dBu, Analog, 0 dBFS digital | ||
| User DSP: | CA61(-RN, -RD) — Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms. | |
| Software: | CA61(-RN, -RD) — RHAON II | |
| Latency: | CA61(-A, -RN) — 6.25 ms | |
| CA61-RD — 6.25 ms + Dante transport latency | ||
| Power Output: | LF= 250 watts, @ 16 ohms / HF = 125 watts @ 16 ohms. Multi-band peak and thermal limiting on all channels protects the drivers. | |
| Mains Voltage: | 100-240 volts, 50/60 Hz auto-switching | |
| Power Consumption: | Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting) | |
| Power Connector: | Neutrik powerCON TRUE-1 | |
| Temprature Limits: | Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C | |
