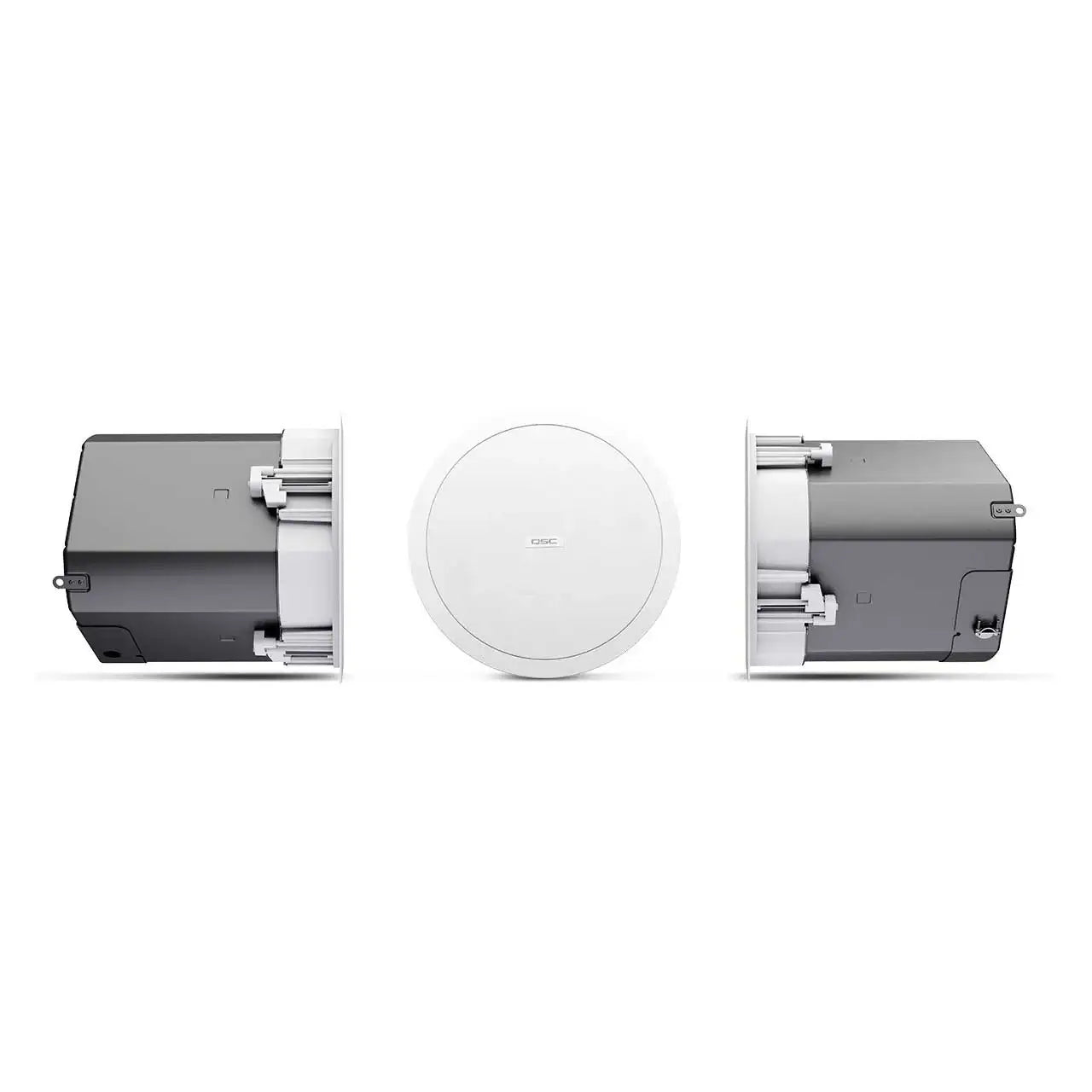

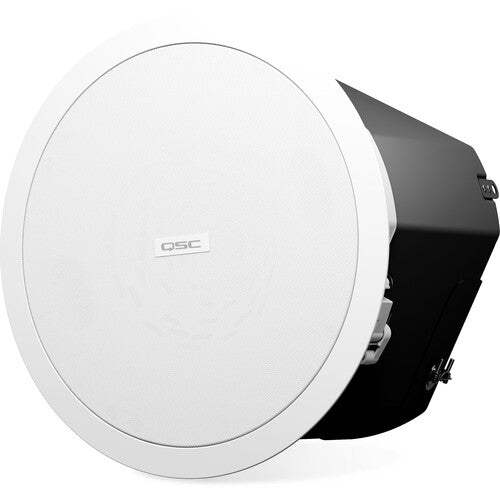

QSC AD-C6T-HC 6.5" Two-way high ceiling, blind mount ceiling speakers, 70/100V
QSC AD-C6T-HC 6.5" Two-way high ceiling, blind mount ceiling speakers, 70/100V is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
QSC AD-C6T-HC 6.5" Two-way high ceiling, blind mount ceiling s...
Priced Individually, sold in pairs
Features
- Higher power handling and tighter coverage area enables venues with high ceilings or reverberant spaces
- Consistent tonal characteristics across the entire AcousticDesign Series let you mix and match form factors across your venue
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correction™ voicings available via Q-SYS™
- 16 Ω bypass with multiple transformer taps for 70/100 Vrms systems
- 75° coverage pattern
- Available in white (RAL 9010)
Coverage Comparison
| SPECIFICATIONS | AD-C6T-HC |
| Description | 6.5 in, two-way ceiling-mount loudspeaker with transformer |
| Transducers | 6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil, ferrite magnet 1.4 in (35.6 mm) kapton dome compression tweeter
|
| Sensitivity | 90 dB @ 1 W, 1 m |
| Freq. range (-10 dB) | 45 Hz - 20 kHz |
| Rated noise power (@16 Ω bypass) | 120 W |
| Coverage (-6 dB) | 75° |
| Directivity factor | 10 |
| Directivity index | 10 dB |
| Max SPL (continuous/peak) | 110 dB / 116 dB @ 1 m |
| Taps (70 V/ 100 V) | 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W |
| Bypass impedance | 16 Ω |
| Min impedance | 14.97 Ω @ 208 Hz |
| Crossover frequency | 2.5 kHz |
| Input | 4-pin Euroblock connector with parallel output |
| Cutout dimension | Ø 305 mm (Ø 12 in) |
| Net weight | 19 lb (8.58 kg) |
| Product dimensions | 12 x 13.4 x 13.4 in (313 x 340 x 340 mm) |
| Optional accessories | AD-MR8 (pre-install mud ring), 305 mm cutout size AD-C305C (collar adapter), 305 mm cutout size |
