JBL PRX835W 15" Three-Way 1500W Powered PA System with Wi-Fi Control
JBL PRX835W 15" Three-Way 1500W Powered PA System with Wi-Fi Control is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
JBL PRX835W 15" Three-Way 1500W Powered PA System with Wi-Fi C...

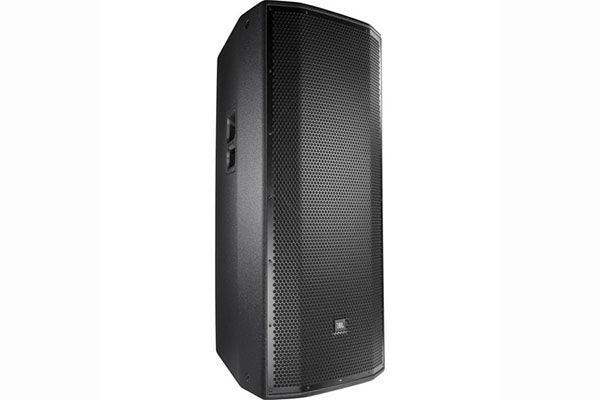

Audio professionals looking for a powered PA system with subtlety and nuance will be impressed by the JBL PRX835W, a 3-way active loudspeaker designed for main PA applications with extensive Wi-Fi control over the onboard DSP. Well suited for event halls, bands, DJ systems, clubs, bars, schools, and churches, the speaker is optimized for full-range sound reinforcement applications. The PRX835W is designed to match the PRX815XLF or PRX818XLF subwoofers (separately sold), offering a high-performance, self-powered sub/satellite system.
The speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the 15" woofer, 6.5" midrange driver, and 1.5" compression driver, which combine to offer a frequency range of 42 Hz to 20 kHz at 138 dB maximum SPL output, plenty of output to cover audiences of up to 400.
| Configuration | Active 3-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 1500 W |
| Amplifier Power Rating | 2 x 750 W |
| Amplifier Class | Class-D |
| HF Driver | 1 x 1.5" / 3.8 cm Polymer Compression Driver |
| MF Driver | 1 x 6.5" / 16.5 cm Horn-Loaded |
| LF Driver | 1 x 15" / 38.1 cm Woofer |
| Magnet | HF: Neodymium |
| Frequency Range | 34 Hz to 20 kHz -10 dB |
| Frequency Response | 39 Hz to 20 kHz ±3 dB |
| Maximum SPL | 138 dB (Peak) |
| Coverage Angle | 90° H x 50° V |
| Directivity | 10.5 dB (Directivity Index) 11.2 (Directivity/Q Factor) |
| I/O Impedance | Input: 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) |
| Protections | Output Limiter |
| Audio I/O | 2 x Combo XLR-1/4" TRS Balanced Mic/Line Input 1 x Stereo RCA Unbalanced Aux Input 1 x XLR 3-Pin Balanced Line Output |
| Network I/O | None |
| USB | None |
| Wireless Connectivity | Wi-Fi |
| Crossover | 580 Hz 2.1 kHz |
| EQ | Yes |
| Parametric EQ | None |
| Semi-Parametric EQ | None |
| Dynamic Processing | Limiter |
| Alignment Delay | 0 to 50 ms |
| Phase Adjustment | None |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Mounting | 12 x M10 Fly Point |
| Handles | 1 x Each Side |
| Cooling | Fan (Variable Speed) |
| Construction Material | Perforated Metal Grille, Plywood |
| Dimensions | 36.9 x 21.2 x 17.5" / 93.7 x 53.8 x 44.5 cm |
| Weight | 71.4 lb / 32.4 kg |
