JBL CONTROL 25AV-WH 5.25 inch 2 Way Shielded Indoor/Outdoor Speaker (Pair,White)
JBL CONTROL 25AV-WH 5.25 inch 2 Way Shielded Indoor/Outdoor Speaker (Pair,White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
JBL CONTROL 25AV-WH 5.25 inch 2 Way Shielded Indoor/Outdoor Speaker...

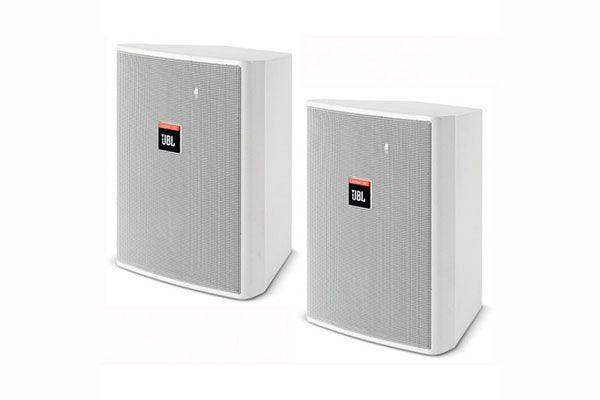

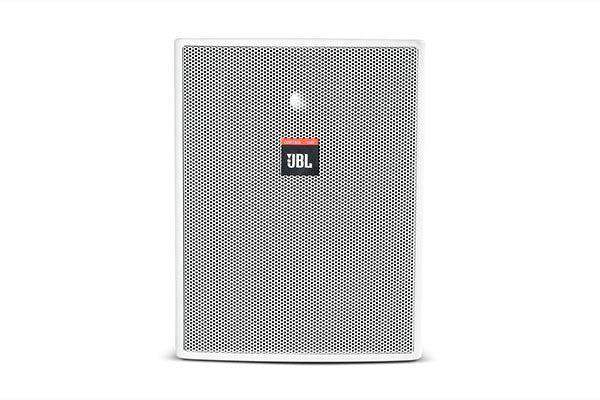

Sold as a pair, the white JBL Control 25AV-WH is a passive 5.25" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 60W transformer allows the Control 25AV-WH to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 25AV-WH is equipped with a durable 5.25" woofer and a 0.75" titanium-coated tweeter, yielding a frequency range of 70 Hz to 23 kHz, and a continuous program power capacity of 200W.
The 12 dB/octave crossover network ensures proper frequency distribution to the speaker components as well as smooth tone. SonicGuard circuitry protects against damage incurred through overloading without compromising sound quality. The screw-down terminal strip enables simple wiring, and utilizes nickel/zinc terminals for enhanced resistance to rust. The supplied InvisiBall mounting systems and input panel covers contribute to ease of installation.
- High-impact polystyrene enclosures with magnetic shielding for use near video monitors
- Included InvisiBall mounting systems are simple to install, aim easily, and provide a high degree of theft deterrence
- 100° x 100° high-frequency horn
- Low-saturation 60W transformer enables use with 70V/100V constant-voltage systems, and offers a bypass position for use in an 8-Ohm setup
- 200W continuous program power handling
- Durable 5.25" polypropylene-coated woofer with WeatherEdge surround
- 0.75" titanium-coated, horn-loaded tweeter
- 70 Hz to 23 kHz frequency range (-10 dB)
- 12 dB/octave crossover network with high- and low-pass filtering
- Screw-down terminal strip—with zinc-plated copper base and nickel-plated metal screws/washers—accepts up to 9mm outside and 4mm inside open lug (#6, #8 or #10), plus bare wire (up to 12 AWG)
- Aurally transparent SonicGuard circuitry features full-range power limiting to protect network and transducers, plus an internal fuse to protect during exceptional overload conditions
Features
- Passive Design, Magnetic Shielding
- 5.25" Woofer, 0.75" Tweeter
- 200W Long-Term Power Capacity
- For 70V/100V or 8-Ohm Power Amplifiers
- Low-Saturation Transformer
- 70 Hz to 23 kHz Frequency Range
- SonicGuard Overload Protection
- Screw-Down Terminal Strip
- Includes InvisiBall Mounting Systems
- Includes Input Panel Covers
Specs
JBL Control 25AV Specs
| Active or Passive | Passive |
| Number of Included Speakers | 2 |
| Speaker Configuration | 2-Way |
| Power Handling | For 100 Hours: 200 W Program 100 W RMS |
| Constant Voltage / Transformer Taps | 100 V: 15 / 30 / 60 W or 8 Ohms Bypass 70 V: 7.5 / 15 / 30 / 60 W or 8 Ohms Bypass |
| Impedance |
6.7 Ohms (Minimum) 8 Ohms (Thru Setting) |
| Shielded | Yes |
| HF Driver | 0.75" / 2 cm Titanium-Coated PEI Tweeter |
| LF Driver | 5.25" / 13.5 cm Polypropylene-Coated Paper Woofer |
| LF Voice Coil | 1" / 2.5 cm |
| Frequency Range | 70 Hz to 23 kHz -10 dB |
| Maximum SPL | 113 dB (Peak) 107 dB (Continuous) |
| Sensitivity | 87 dB SPL |
| Coverage Angle | 100° H x 100° V |
| Directivity |
4.9 (Directivity/Q Factor) 6.9 dB (Directivity Index) |
| Crossover | Low-Pass: 12 dB/Octave High-Pass: 12 dB/Octave |
| Protections | AC Fuse, Overvoltage |
| I/O | Screw Terminal |
| Maximum Wire Gauge | 12 AWG |
| Certifications | UL *as per Manufacturer |
| Environmental Protection | Advertised as Water Resistant *Manufacturer Testing: IPX4 |
| IP Rating | IPX4 |
| Color | White |
| Rotation Range | 44° H x 37° V (Ball Mount) 44° H x 44° V (Bracket Mount) |
| Construction Material | High-Impact Polystyrene, Stainless Steel Grille |
| Dimensions | 9.3 x 7.4 x 6.3" / 23.6 x 18.6 x 15.9 cm |
| Weight | 9 lb / 4 kg |
| Package Weight | 20.75 lb |
| Box Dimensions (LxWxH) | 15.4 x 10.5 x 9.6" |
