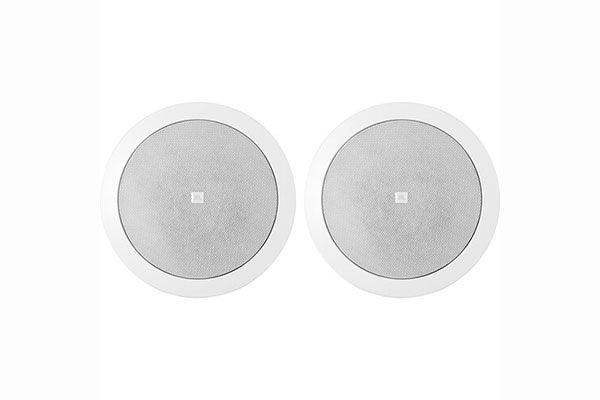

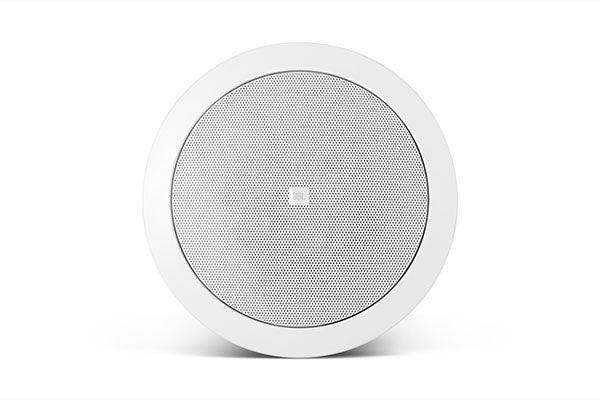

JBL Control 24CT Ceiling Speaker (Pair/White) - Control 24CT
Sold as a pair, The white JBL Control 24CT Ceiling Speaker features high-power sound reproduction with a wide frequency response and low distortion. The 130° coverage pattern allows fewer speakers to provide consistent sound levels throughout a space.
The Control 24CT is constructed with a coaxially mounted 4" woofer with butyl rubber surround and 0.75" titanium coated diffraction-loaded tweeter. It includes a 30W multitap transformer for use in either 70V or 100V distributed-line systems. Taps are selected by a front-panel rotary switch. The transformer effectively limits the power to the speaker, so overload is not a concern.
Features
- 80W power capability
- 30W multitap transformer for 70V and 100V distributed-line systems
- 4" woofer and 0.75" titanium-coated tweeter
- Extremely wide 130° coverage
- 7.2" depth from flush ceiling
- High power, wide frequency response and low distortion
- Packaged with grille, backcan and tile rails for fast installation
Specification
| Active or Passive | Passive |
| Number of Included Speakers | 2 |
| Speaker Configuration | 2-Way |
| Power Handling | 40 W RMS 80 W Program |
| Constant Voltage / Transformer Taps | 100 V: 30 / 15 / 7.5 W 70 V: 30 / 15 / 7.5 / 3.7 W |
| HF Driver | 0.75" / 19 mm Titanium-Coated Polyester |
| LF Driver | 4" / 100 mm Polypropylene-Coated |
| LF Voice Coil | 1" / 25.4 mm |
| Frequency Response | 80 Hz to 20 kHz |
| Maximum SPL | 102 dB |
| Sensitivity | 86 dB SPL |
| Coverage Angle | 130° (Conical) |
| Directivity | 2.4 (Directivity/Q Factor) 3.8 (Directivity Index) |
| I/O | 2 x Screw Terminal Input 2 x Screw Terminal Thru/Output |
| Maximum Wire Gauge | 12 AWG / 2.5 mm |
| Certifications | UL *as per Manufacturer |
| Color | White |
| Cutout Depth | 7.2" / 184 mm |
| Cutout Size | 6.6" / 168 mm |
| Construction Material | Medium-Impact Polystyrene, Steel |
| Dimensions | 7.9 x 7.7" / 200 x 195 mm |
| Weight | 8 lb / 3.5 kg (Each Speaker) |
| Package Weight | 16.5 lb |
| Box Dimensions (LxWxH) | 26.1 x 11.9 x 9.3" |
