JBL Control 19CS 8" 200W In-Ceiling 8-Ohm Installation Subwoofers (Pair, White)
JBL Control 19CS 8" 200W In-Ceiling 8-Ohm Installation Subwoofers (Pair, White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
JBL Control 19CS 8" 200W In-Ceiling 8-Ohm Installation Subwoof...

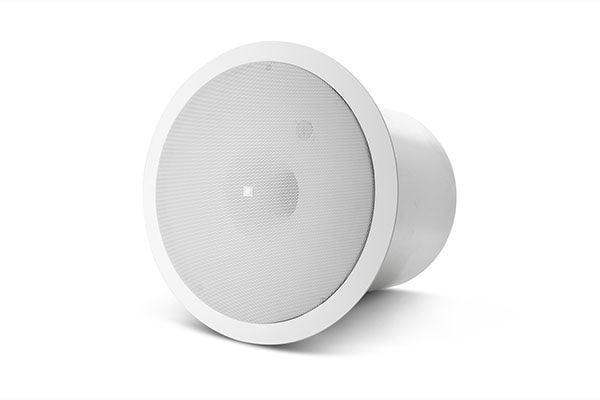

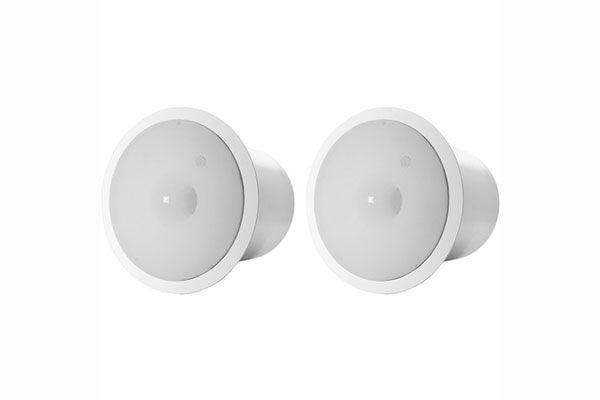

Sold as a pair, the white JBL Control 19CS is a passive 8" in-ceiling installation subwoofer with SonicGuard overload protection circuitry designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues ranging from boardrooms to bistros. When driven by 8-Ohm power amplifiers (available separately), these subwoofers provide a program power capacity of 200W. Each Control 19CS is equipped with a durable 8" polypropylene woofer capable of covering the low-frequency range from 42 to 200 Hz.
The Nested Chamber design and Linear Dynamics port yield extended bass response, high output, and sonically transparent acoustic low-pass properties. The removable locking connector, C-shaped support backing plate, tile support rails, cutout template, and paint shield contribute to easy installation.
Features
- Low-profile, in-ceiling installation subwoofers with paintable baffles and grilles
- Includes cutout templates and paint shields for ease of installation
- For use with 8-Ohm power amplifiers
- Ideal for reinforcing full-range speakers for foreground music systems
- Discreet, minimized visual impact for boardroom, reception areas, restaurants, airports, and retail applications
- 200W continuous program power handling performance
- Durable 8" polypropylene woofer with vented pole piece for low distortion
- 42 to 200 Hz frequency range
- Nested Chamber design delivers high output from a compact enclosure, while its acoustic low-pass character enables it to augment a full-range sound system without an external crossover or separate amp channel
- Linear Dynamics port design, originally developed for JBL's concert speaker systems, produces extended and deep bass output
- SonicGuard circuitry protects against overload damage while remaining transparent to the listener
- Removable locking connector with screw-down terminals for input and loop-through output connections
- Enclosed terminal box provides strain relief for use with plenum-rated wire, 1/2" conduit, or flexible conduit up to 7/8" outside diameter
- Back-panel attachment loop acts as a secondary support point
Specs
JBL Control 19CS Specs
| Active or Passive | Passive |
| Number of Included Speakers | 2 |
| Speaker Configuration | Subwoofer |
| Power Handling | 100 W RMS 200 W Program |
| Impedance | 8 Ohms |
| Enclosure Type | Bass-Reflex |
| Shielded | No |
| LF Driver | 1 x 8" / 20 cm Polypropylene-Coated Woofer |
| LF Voice Coil | 1.5" / 3.8 cm |
| Frequency Range | 42 Hz to 200 Hz -10 dB |
| Maximum SPL | 115 dB (Corner Mount) |
| Sensitivity | 95 dB SPL (Corner Mount) 89 dB SPL (Ceiling-Center Mount) |
| Coverage Angle | 180° (Conical) |
| Protections | Overvoltage |
| I/O | 1 x Screw Terminal 4-Pole Input/Thru (Locking, Removable) |
| Maximum Wire Gauge | 12 AWG |
| Certifications | UL *as per Manufacturer |
| Environmental Protection | None |
| Color | White |
| Cutout Depth | 12.5" / 31.8 cm |
| Cutout Size | 12" / 30.5 cm |
| Construction Material | Medium-Impact Polystyrene, Steel |
| Dimensions | 13.6 x 13.6" / 34.5 x 34.5 cm |
| Weight | 12 lb / 5.5 kg (Each Speaker) |
| Package Weight | 48.8 lb |
| Box Dimensions (LxWxH) | 32 x 15 x 15" |
