Atlas Sound UHT70C-U51-8 8" In-Ceiling Speaker for Fire Signaling with 5-Watt 70V Transformer and U51-8 Baffle
Atlas Sound UHT70C-U51-8 8" In-Ceiling Speaker for Fire Signaling with 5-Watt 70V Transformer and U51-8 Baffle is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlas Sound UHT70C-U51-8 8" In-Ceiling Speaker for Fire Signal...

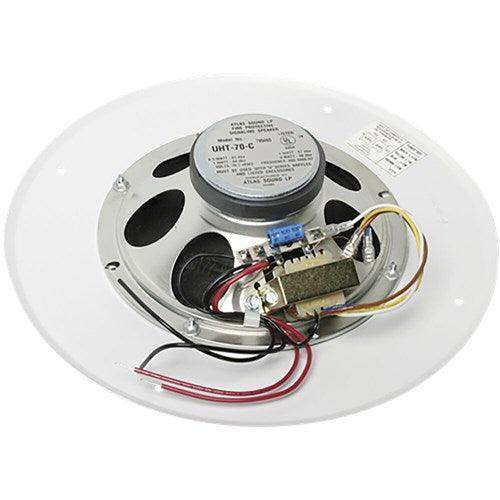

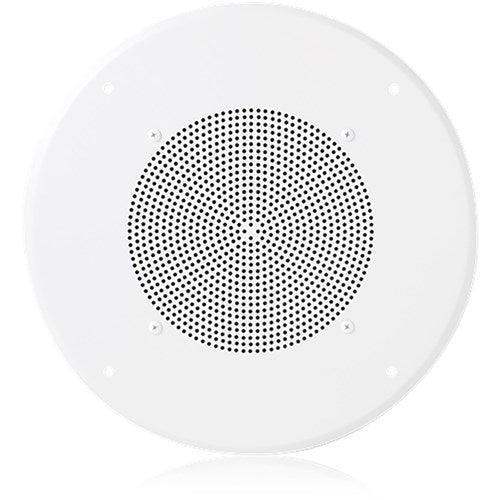

AtlasIED's UHT70C-U51-8 are 8" diameter single voice coil speakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle.
To comply with UL requirements, speaker packages must be used with UL-approved enclosures.
Features
- Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
- Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
- Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
- Selection of UL Approved, Companion Enclosures is Offered
- UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
- Frequency Response 85Hz - 8kHz
Specs
| Frequency Response | 85Hz - 8kHz |
| Sensitivity | 97dB Peak, 94dB Avg. |
| Power Taps | .5, 1, 2, & 5 Watts |
| Power Rating | 10 Watts |
| Diameter | 8" (20.32 cm) |
| Depth | 2 7/8" (7.3025 cm) |
| Shipping Weight | 4.67 lbs (2.12 kgs) |
| Safety Listed | 1480 |
