Cisco Room Kit EQX, TAA, First Light - CS-KIT-EQX-K9++
Cisco Room Kit EQX, TAA, First Light
Premier video meeting, perfectly framed.
It gives the flexibility to bring your own external displays and integrate them with an all-in-one, purpose-built kit of room conferencing hardware components. What’s more, the Room Kit EQX helps you simplify meeting room video deployment, configuration and management at scale while keeping your room setup clutter-free with a premium look and feel.
This all-in-one bundle brings you unrivalled multi- platform collaboration on Cisco Rooms or Microsoft Teams Rooms to let you define your preferred native software experience while meeting the ultimate hybrid meeting room standard across your workspaces.
Cisco Room Kit EQX is an intelligent, ultra-immersive video conferencing system powered by Cisco Rooms and designed to enable flagship hybrid meeting experiences in any medium or large collaboration space. It sets a new standard for multi-screen video collaboration with an integrated and premium design that brings a blend of next-generation meeting hardware and advanced collaboration AI to help your teams stay focused and productive.
This intelligent room device solution scales artificial intelligence-powered video meeting experiences, room deployment flexibility, platform interoperability, and workspace intelligence to elevate video conferencing in meeting spaces where the highest hybrid video conferencing standards and consistent, premium room setup are expected.
Video-enable your conference rooms with a room kit that’s easy to deploy, engaging to use, and more affordable to maintain—creating a connected, intelligent workplace.
AI-enhanced, cinematic video meetings
The Room Kit EQX offers AI-infused meeting experiences that allow meeting participants to communicate with clarity, feel included, and stay focused—and not distracted by the technology deployed in the workspace. This hardware offering uses a high- performing NVIDIA® AI engine to power next-generation camera, audio and language processing intelligence to enable more engaging and equitable meetings.
The wall-mount Cisco Room Kit EQX combined with Table Microphone Pro units and with two Room Vision PTZ cameras for the cross-view experience.
The Cisco Room Kit EQX wall-mount model deployed with carbon black Table Microphone Pro units in a conference room.
It uses a quad-lens conferencing camera system and powerful image processing for extended camera reach, impeccable image quality, and AI people framing to provide the best view from your conference rooms, auditoriums, or training rooms. Its 83-degree-field-of- view main image sensor works seamlessly together with three, 50-degree-field-of-view tele-lenses to keep everyone perfectly framed around the table, from a hybrid event audience, or any predefined meeting zone area. Better still, it’s a room device that supports advanced multi-camera scenarios to offer extended speaker tracking, intelligent presenter and audience views, and cinematic cross-view to create natural, true-to-life collaboration.
This is augmented with a unique spatial audio experience, powered by an advanced, multi-channel sound system, that intelligently follows where the remote active speaker is displayed on the screens. Combined with leading AI noise removal and smart audio processing, the Room Kit EQX supports supreme- quality acoustic experiences for in-room and remote participants alike.
Equip any medium and large meeting room for hybrid work
The Room Kit EQX seamlessly and securely connects with your external displays, conferencing microphones, speakers, control panels, tracking cameras, and other room accessories to help elevate the room experience. Users can easily connect the system with up to four video and content sources via HDMI and USB-C or connect a laptop via single-cable USB passthrough to enable effortless switching to BYOD mode.
The solution seamlessly connects with analog, USB and networked audio peripherals, including Cisco IP Microphones to provide multi-directional, intelligent voice capture in collaboration spaces with different sizes, shapes, and layouts. In addition, the Room Kit EQX offers audio APIs for advanced room configurations, and the flexibility to integrate your third-party, digital microphones with the video device via AES67 audio interoperability.
The Room Kit EQX wall-mount model deployed in a multi-purpose training space with 85-inch, dual external screens and Ceiling Microphone Pro units to provide adaptive beamforming.
It provides flexible wall-mount, wall-stand, and floor- stand options to fit any meeting space and collaboration use case, while featuring a main module to provide mounting and bracket for all your AV components, screens, and cabling for streamlined room installation and a clean, unobtrusive setup. This not only helps you remove the need for overly complex configuration, redundant screens and AV components, and costly maintenance but also allows to deploy high-quality, standardized conferencing hardware without the complexity.
Get unrivalled video interoperability
Cisco Room Kit EQX is a dedicated, flexible room appliance running the native Cisco Rooms or Microsoft Teams Rooms experience with a single solution and powered by a secure platform architecture. It is the most advanced video system designed for medium and large-sized spaces, uniquely delivering these native experiences.
When configured for Cisco Rooms, it powers the native Webex experience for the richest meeting and workspace experience combined with advanced third- party interoperability with Microsoft Teams, Zoom and Google Meet.
In case you configure and onboard the device for Microsoft Teams Rooms, it offers a set of differentiated camera and audio intelligence capabilities, advanced collaboration AI, and rich wired and wireless content sharing. It is unique in providing the option to combine Microsoft Teams with the power of full-featured Webex Meetings and Events.
A Room Kit EQX with 65” dual screens in combined deployment with a Ceiling Microphone Pro for directional speech capture.
Keep your devices and spaces under control
With Control Hub, your IT team can fully manage, monitor, troubleshoot, and analyze your deployment using a single, intuitive admin dashboard. It offers an at-a-glance view of video devices and Cisco or third-party peripherals, usage and occupancy metrics, device health, integrations, and workspace conditions.
Bulk configurations, automatic software upgrades, multi-tenant management, cloud APIs, and device sensor-driven insights are all centrally accessible and can be augmented with the broader Cisco ecosystem to support your broader workspace management and network security and monitoring efforts.
The solution comes with the award-winning Cisco Room Navigator touch device so that your users can easily access conference controls, device settings, room booking, and third-party workspace experience apps. The control panel includes rich built-in sensors enabling augmented intelligence in Control Hub around real-time and historic device usage, room occupancy, and environmental conditions.
|
Feature |
|
|
AI-infused, cinematic video meetings |
● Supreme-quality, immersive video conferencing system optimized for medium and large workspaces, including conference rooms, boardrooms, trainings rooms, and auditoriums
● Integrated device bundle featuring the Codec EQ with an AI chipset, a quad-lens conferencing camera system, flexible mounting options, premium frame design, and optional room peripherals
● Integrated 80 MP, multi-lens camera system with intelligent speaker tracking and camera framing techniques, combined with sophisticated camera AI for optimized group, speaker and participant views
● Spatial, room-filling sound powered by a 6-element, multi-channel loudspeaker system, dedicated bass module and amplifier
● Platform independence to run the native Cisco Rooms experience or Microsoft Teams Rooms with single-button meeting join and advanced intelligence features.
● Advanced third-party video interoperability with Microsoft Teams, Google Meet and Zoom on Cisco Rooms, and advanced video integration with Webex and Zoom on Microsoft Teams Rooms.
● Supporting multi-camera scenarios with optional PTZ and tracking cameras, including the IP- based Room Vision PTZ, for extended speaker view, cross-view and intelligent presenter tracking
● Embedded AI noise removal and noise-cancelling Cisco microphone options to enable distraction-free meetings for remote participants
● A variety of content sharing options via cable (HDMI, USB-C) or wirelessly (Webex, Miracast, Apple AirPlay, and Teams Casting)
● Meeting zones to create virtual meeting barriers in the workspace to just capture and frame meeting participants in glass-walled and open spaces
● Uses ultrasound technology to automatically wake up the device when someone walks into the room, and recognizes them through their mobile device
|
|
Flexible design |
● Flexible mounting options (wall-mount, wall-stand, floor stand to deploy as a free-standing unit) to support different room characteristics, room layouts, and use cases
● Main module with purpose-built bracket for AV components and cabling for a clutter-free setup
● The Codec EQ, the audio system, other peripherals and wiring are all hidden behind the screens and AV housing to remove distracting tech components from the workspace
● Immersive video conferencing system, mounting and design bundled into a high-quality, single- vendor hardware solution
● Standardized product design and simplified architecture to help take the complexity out of installation, configuration and maintenance
● Features seamless integration with 65” to 75” external displays and limited support for 75” to 85” screens, with adjustable VESA mounting to keep the screens perfectly aligned
● Clean, premium design with durable and consciously chosen materials for a sustainable and elegant meeting room product
|
|
Smart integrations |
● Automatic screen/display integration through HDMI CEC, connects with dual external displays between 65” and 75” (and certain 75” to 85” screens) in the main module, and a third display.
● Provides tested and validated quality, performance and security with Cisco Collaboration Device Verified displays, cameras, microphones and other room accessories.
● Supports 4x content and camera sources over HDMI and USB-C
● Connect your laptop with the video system via a single USB-C to use the camera, microphones, and speakers of the device for an instant BYOD experience
● Connects with up to 3x Room Vision PTZ cameras over IP, and up to 3 cameras over HDMI. In addition, the system works with USB cameras.
● Integrates with up to 8x Cisco IP microphones (may require an Ethernet switch depending on the number of ports required)
● Supports third-party speakers, and other Cisco or third-party collaboration peripherals via PoE, USB, and analogue ports
● Supports Wi-Fi and Bluetooth®* (Not available on Non Radio Version)
● Comes with the Cisco Room Navigator touch panel to control the video conference, control room peripherals, run third-party workspace apps, or add intelligent room booking
|
|
Centralized management |
● Unified management, provisioning, monitoring, troubleshooting, analytics, and workspace insights in Control Hub
● Secure OS purpose-built for collaboration
● Flexibility to register on-premises or in the Webex Cloud
● Hardware is optimized to run on a cloud platform for great experiences in shared rooms and spaces with easy access to hosted conferences
● Offers macros and UI extensions for custom room experiences
● Smooth integration with the rest of the Cisco ecosystem (Cisco Meraki, Cisco Spaces, Cisco ThousandEyes)
|
| General Information | |
| Product Name | Cisco Room Kit Eqx Carbon Black |
| Manufacturer Part Number | CS-KIT-EQX-C-K9 |
| Product Line | Webex Room |
| Product Model | TTC60-34 |
| Product Type | Video Conference Equipment |
|
Specification |
Description |
|
Platform compatibility |
● RoomOS 11.9.2 and later (for native Webex meetings and video interoperability for Microsoft Teams, Zoom, and Google Meet)
● Microsoft Teams Rooms (also featuring native Webex meetings when registered in Control Hub)
|
|
Available solutions |
● Cisco Room Kit EQX Wall Mount Version (available in First Light and Carbon Black)

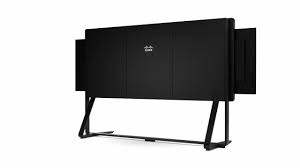

● Cisco Room Kit EQX Floor Stand Version (available in Carbon Black)
● Cisco Room Kit EQX Wall Stand Version (available in Carbon Black)
|
|
Default components in Cisco Room Kit EQX |
● Integrated video conferencing system including:
◦ Cisco Codec EQ (radio or non-radio options) ◦ Cisco Quad Camera (integrated version) ◦ Cisco Natural Audio Module IV (amplifier) ◦ 6 x loudspeakers ◦ 1 x bass unit
● Cisco Room Navigator (Table Stand, First Light)
● Mounting unit (wall-mount option by default)
● Power adapters
● Ethernet cable (for Room Navigator, 12 m)
● Other internal cabling between the default components
|
|
Optional hardware components |
● Cisco Room Vision PTZ - Arctic White or Carbon Black
● Cisco PTZ 4K Camera
● Cisco Precision 60 Camera
● Cisco Room Navigator Table-Stand, First Light or Carbon Black (additional unit)
● Cisco Room Navigator Wall-Mount, First Light or Carbon Black (additional unit)
● Cisco Table Microphone
● Cisco Ceiling Microphone
● Cisco Table Microphone Pro - First Light or Carbon Black
● Cisco Ceiling Microphone Pro - Arctic White or Carbon Black
● Wall mount for Cisco Codec EQ
● Rack ears for Cisco Codec EQ
● Cisco Active USB-C Cable, 9m
● Cisco Multi-head Cable 4K
● Cisco Catalyst C1200 Switch, PoE
● Other cable, mount and peripheral options (see Ordering information)
|
|
Camera overview |
● 4x CMOS image sensors with machine intelligent switching and up to 20 MP resolution per lens
● The camera generates frames from the 4 sensors simultaneously to provide a single HD output at 1080p
● Support up to 60 fps
● 1/1.7 CMOS
● 7x overall zoom (1.9x optical zoom and 4x digital zoom)
● f/2.0 aperture
● 83° horizontal field of view on the main wide-angle lens
● 50° horizontal field of view on the 3x tele-lenses
● Automatic group framing (audio + face detect)
● Speaker tracking
● Frames camera mode: intelligent people framing for equitable views
● Camera control: over LAN
● Video standard: HDMI
● 5056 x 3888 pixel resolution
● Auto focus, brightness, and white balance
● Focus distance 1 m to infinity
|
|
Bandwidth |
● Up to 20 Mbps bandwidth rate for video content
● Minimum bandwidth:
◦ 720p30 from 768 kbps ◦ 720p60 from 1152 kbps ◦ 1080p30 from 1472 kbps ◦ 1080p60 from 2560 kbps
● 1920 x 1080 at 60 fps from 2560 kbps
|
|
Firewall traversal |
● Cisco Expressway™ technology
● H.460.18, H.460.19 firewall traversal
|
|
Video standards |
● H.264, H.265, H.263, AV1
|
|
Video inputs |
● 1x USB-C input supports formats up to maximum 3840 x 2160 at 30 fps. USB-C port has charging capability with a maximum of 15W power output
● 3x HDMI 1.4b inputs support formats up to maximum 3840 x 2160 at 30 fps including 1920 x 1080 at 60 fps; support for HDCP 1.4 on 1x HDMI input
● 4x PoE++ (1 Gb) Ethernet ports supporting up to 3x video over IP streams at 1920 x 1080 at 60 fps or 1x video over IP stream at 3840 x 2160 at 30 fps
● Extended Display Identification Data (EDID)
● Consumer Electronics Control (CEC) 2.0
|
|
Video outputs |
● 3x HDMI 2.0 outputs support formats up to 3840 x 2160 at 60 fps to connect with external displays (displays are not included in the Room Kit EQX bundle)
● 2 out of 3 HDMI outputs are meant for the screens mounted on the main module
● Consumer Electronics Control (CEC) 2.0
|
|
Encode and decode |
● Main video: 1920 x 1080 at 60 fps
● Main video in Webex Meetings (when bandwidth is set at 20 Mbps): rendering up to 4x 1080p video streams decoding a total of 4K pixels
● Presentation channel: 3840 x 2160 at 15 fps
|
|
Audio standards |
● Audio codecs: G.711, G.722, G.722.1, G.729, AAC-LD, Opus, and LPCM
● Audio interop: AES67
|
|
Audio features |
● High-quality 20kHz full-band audio
● Spatial Audio
● Prepared for inductive loop (line out)
● Acoustic Echo Cancellation (AEC)
● Active Lip Synchronization
● AI-Powered Noise Removal
● Automatic Gain Control (AGC)
● Adjustable gain on all external connectors
● Full Duplex
● Self-Hear testing
● Ultrasound Technology
● 8-element microphone array for accurate speaker tracking
|
|
Audio customization with AV Integrator License |
● Flexible mixing of physical and software defined audio I/O
● Eight assignable equalizer curves with six parametric sections
● Macro scriptable VUmeters for assessing audio levels pre or post AEC
● Connection with up to 8 Cisco IP microphone units or third-party microphones via AES67 (requires PoE compatible switch eg. Catalyst 1200)
|
|
Audio inputs |
● 3x mini Jack analog audio input
● 3x HDMI inputs (one used by the integrated camera system)
● 1x USB-C audio input
● 4x PoE++ Ethernet for audio over IP
● Connectivity with up to eight Cisco IP microphone units or third-party digital microphones via AES67. Connecting more than three IP microphones requires the Room Kit EQ AV Integrator license (under “L-ROOM-PAK”).
● 1x USB-A audio input for connecting a DSP or a USB microphone
|
|
Audio outputs |
● 1x analog line out mini-jack (stereo)
● 3x HDMI audio out
● 1x USB-A audio out for connecting a DSP or a USB audio device
● 1x USB-C audio out for BYOD experience
● 4x PoE++ Ethernet for audio over IP
● Connectivity with third-party audio systems via AES67
|
|
Loudspeakers |
● High-quality, multi-channel loudspeaker system with six coaxial speakers and a compact folded bass horn.
● Supports directional audio experience that follows where the active remove speaker displayed on the screens.
● Dedicated bass module, and amplifier for a rich, room-filling sound
● Max output level: 105 dBSPL
● High-quality 20kHz full-band audio
● Frequency response: 45Hz to 20kHz
|
|
Camera modes |
● Group view: Automatically detects meeting participants and provides ideal group framing for the best view
● Speaker view: Uses a dedicated, built-in microphone array to detect and provide a prominent view for the active speaker
● Frames: Captures a condensed view of in-room participants and frames them individually or in smaller groups for more equitable meetings, on Webex and when using third-party meetings
● Group and Speaker: Multistream layout providing a best overview and a focused view of the active speaker in parallel
● Manual camera control with the option for presets
|
|
Video stream layouts |
● Supporting available Webex video stream layouts and meeting features, including focus, grid, prominent, stack, and overlay. For more information, please consult the Webex Help Center.
● People Focus helps create an optimized view of every participant in
● Webex meetings via smart cropping to remove excess real estate
|
|
Speaker tracking |
● 8-element built-in microphone array for accurate speaker tracking
● Quad Camera can support intelligent framing and dynamic speaker tracking with 7x zoom
● For an optimal speaker-tracking experience for people joining remotely, it is recommended that the furthest in-room participant is located within less than 9 meters from the video device. Please note that the best overview (automatic group framing) camera mode can support an extended distance from the camera system.
● Extended Speaker view: allows for an extended camera reach beyond 9 meters by zooming on the active speaker and providing an optimal view in very long conference rooms to provide a close-up view of the furthest speaker in the room. Requires the combined deployment of the Room Kit EQ, an additional Cisco pan-tilt-zoom camera, and Cisco IP microphones for the extended, directional voice capture range.
● Cross-view: Using Room Kit EQ with the Quad Camera combined with two additional cameras installed on the sidewalls to provide AI-directed, cinematic cross-view of in-room conversations happening across the table. Available with additional Cisco tracking cameras and IP microphones.
|
|
Presenter tracking |
● PresenterTrack is available with the Room Vision PTZ camera (featuring motorized pan-tilt, advanced optical zoom, wide field of view, and embedded AI head detection), the Cisco PTZ 4K Camera (using digital cropping), or the Precision 60 Camera (using digital cropping)
● AI-powered head detection capability
● Camera automatically follows the active presenter within a defined zone and helps ensure an optimized view
● Presenter and Audience view: intelligent framing and dynamic switching can be enabled with a combination of the Quad Camera bar and a Cisco PTZ camera
● Smart PresenterTrack configuration wizard (available with the Room Vision PTZ)
|
|
Content stream |
● H.239 (H.323) dual stream
● Binary Floor Control Protocol (BFCP) (SIP) dual stream
● Support resolutions up to 3840 x 2160 at 15 fps and 1920 x 1080 at 60 fps
|
|
Wireless sharing |
● Webex App (up to 3840 x 2160 at 7.5 fps, including up to 1920 x 1080 at 30 fps)
● Miracast (1920 x 1080 at 60 fps) – Not available on non-radio version.
● Apple AirPlay wireless sharing:
◦ Bluetooth®* discovery (not on non-radio version) and Bonjour service discovery ◦ Screen mirroring up to 1920 x 1080 at 60 fps. ◦ Extended desktop (Mac only) - up to 1920 x 1080 at 60 fps. ◦ Video streaming - up to 3840 x 2160 at 30 fps
● Microsoft Teams Cast (up to 1920 x 1080 at 15 fps) - Available only on Microsoft Teams Rooms
|
|
MultiSite features |
● Adaptive SIP/H.323** MultiSite (embedded multipoint):
◦ 3-way resolution up to 1080p30 plus content up to 4Kp15 (optional upgrade) ◦ 4 way resolution up to 720p30 plus content up to 4Kp15 ◦ 5-way resolution up to 720p30 plus content up to 4Kp15
● Full individual audio and video transcoding
● H.323 (Cisco proprietary)/SIP/VoIP in the same conference/SIP/VoIP in the same conference
● Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160 at 15 fps
● Best Impression (automatic continuous presence layouts)
● Encryption and dual stream from any site
|
|
Protocols |
● H.323, SIP, Webex, WebRTC
|
|
Embedded encryption |
● H.323 (Cisco proprietary) and SIP point-to-point
● Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
● Automatic key generation and exchange
|
|
Cisco Natural Audio Module IV (Amplifier) |
● The Cisco Natural Audio Module IV is a 16-channel audio power amplifier integrated with the system (out of which 8 channels are in use)
● 1x 12V power input and 1x 12V power output. 1x amplifier power input (24VDC, 11.25A)
● 1x Ethernet for audio streaming from the codec, and for control and software upgrades, 1000BASE-T
● 16x speaker outputs available for the six (6) loudspeakers and one (1) subwoofer of the Room Kit EQX
● Bridged differential output on 3.5mm Euroblock connectors, max 25W / 8ohm at 0.1% THD per channel; < 0.1% THD at all levels below clipping; 106 dB SNR; Max 200W total output power
● 4x analog line inputs (Differential input on 3.5mm Euroblock connectors; Max 24dBu input level; 106 dB SNR)
● 3x fan outputs (for Room Kit EQX fan control), factory reset pinhole, microUSB for maintenance
|
|
IP network features |
● DNS lookup for service configuration
● Differentiated services (Quality of Service [QoS])
● IP-adaptive bandwidth management (including flow control)
● Automatic gatekeeper discovery
● Dynamic playout and lip-sync buffering
● H.245 Dual-Tone Multi-Frequency (DTMF) tones in H.323
● RFC 4733 DTMF tones in SIP
● Date and time support using Network Time Protocol (NTP)
● Uniform Resource Identifier (URI) dialing
● IPv4 Dynamic Host Configuration Protocol (DHCP)
● IPv6 (both static and stateless address auto-configuration)
● HTTP(S) proxy support (for signaling, not media)
● Inspecting Transport Layer Security (TLS) proxy supported
● Cisco Discovery Protocol (CDP)
● 802.1X network authentication
● 802.1Q Virtual LAN
● 802.1p [QoS and Class of Service (CoS)]
● Cisco Media Assure and ClearPath, including packet loss-based downspeeding
|
|
Call control |
● Native registration on Cisco Unified Communications Manager (CUCM)
● Requires CUCM version 12.5 or later with device pack for Room Kit EQ/EQX
● Native registration with Cisco Expressway
● Webex
● Third-party H.323 Gatekeepers and standards-based SIP proxies
|
|
IPv6 network support |
● Single call stack support for both H.323 and SIP
● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
● Support for both static and automatic IP configuration (stateless address auto configuration)
|
|
Security features |
● Secure management using HTTPS and SSH protocols
● End-to-end encryption for calls and meetings on Webex
● Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
● WPA3™ and WPA3-Enterprise with CCMP128 Wi-Fi® security
● Password protection to access administration available on Room Navigator controller
● Network settings protection
|
|
Certificate management |
● The device comes with a manufacturer installed certificate (MIC) signed by Cisco’s manufacturing CA which can be used for Certificate Authority Proxy Function (CAPF) for secure onboarding to Cisco UCM
● Option for users to install certificates with matching private keys for services such as IEEE802.1x, Wi-Fi, HTTPS server and SIP-TLS
● Support for all regular certificate types and key sizes. The device comes with a pre-installed list of CAs (Certificate Authorities) that is vetted by Cisco and updated regularly. You can add or remove certificates from this list if desired. The CA list is used for outbound HTTPS and other TLS connections
|
|
Network interfaces (Codec EQ) |
● Ethernet (RJ-45) 10/100/1000 for LAN
● 4x PoE++ (802.3.bt) Ethernet (RJ-45) 10/100/1000 with a total power budget of 90W for
◦ Camera control ◦ Room Navigator touch controller ◦ Audio amplifier ◦ AV over IP room peripherals (1x PoE++ port available for Cisco IP microphones and cameras that can be expanded with an optional PoE compatible switch)
● Wi-Fi 802.11a/b/g/n/ac/ax 2.4 GHz and 5 GHz also supported for LAN - not available in non- radio versions; Wi-Fi 6E 6GHz TriBand support
● 2x2 Multiple Input and Multiple Output (MIMO)
● Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 to 5875 MHz. Using a Wi-Fi connection is a flexible option; however, an Ethernet connection is always preferred for high performance.
|
|
Other interfaces |
● 4x USB 3.0 ports, 1.5A charging capability per port for external USB cameras, microphones, DSP, keyboard, headset, and future integrations
● Micro USB port
● Factory reset pinhole
● Bluetooth® 5.2 and Bluetooth® Low Energy*
|
|
USB-C Passthrough |
● Ability to provide camera, microphone, and speakers over one USB-C cable to a connected computer
● USB-C passthrough and content sharing with the same cable
● USB-C support up to 3840 x 2160 at 30 fps (computer must support Alt-mode Display Port)
|
|
Sensors |
● Presence sensor powered by ultrasound technology embedded into the video device
● Environmental sensors measuring temperature, humidity, air quality and other room conditions included in the Room Navigator control panel (please consult the Cisco Room Navigator datasheet for more information)
|
|
Power supply |
● Input Rating Power, 100-240 VAC, 50-60 Hz
● Quad Camera must be used with power supply FSP FSP070-AHAN2. Included in the solution.
● Amplifier must be used with power supply FSP model FSP270-RAAN3. Included in the solution.
|
|
Power Consumption |
Sum of the power consumption of Codec EQ, Quad Camera, Room Navigator and the audio system in Room Kit EQX:
● In Call: 150.9 W
● Idle: 68.8 W
● Half wake: 67.9 W
● Standby: 61.5 W
Configurable for office hours mode, forcing the device into standby mode outside of the preset office hours and to half-wake mode at the beginning of the working hours |
|
Operating temperature and humidity |
● 0°C to 35°C (32°F to 95°F) ambient temperature
● 10% to 90% Relative Humidity (RH)
|
|
Storage and transport temperature |
● -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)
|
|
Screen compatibility |
● Compatible with screens from 65” to 75” in the main module, and supports a third extra screen
● Certain 75” to 85” display models are compatible with the system when meeting specific requirements. For more information, please consult the Room Kit EQX Room Preparation Guide.
● HDMI interface CEC 2.0
● Recommended minimum resolution of 3840 x 2160 at 60 fps
● 2 x VESA Mounts, 400 vertical and 400-600 horizontal adjustment
● Up to 42 kg weight per screen with floor stand configuration
● Up to 50 kg weight per screen with wall-mount and wall-stand configuration
● Screens require their own power outlet
● Max thickness of screens: 75mm (3 in). Please note the thickness of the displays can exceed this limit but requires the screens to be mounted lower to avoid blocking the camera field of view.
● Thicker screens may interfere with the camera FOV
|
|
Language support |
● Arabic, Czech, Danish, German, US English, UK English, Catalonian, Spanish, Latin-American Spanish, Finnish, French, Canadian French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Brazilian Portuguese, Portuguese, Russian, Swedish, Turkish, Chinese (Simplified), Traditional Chinese, Ukrainian
|
|
Standards and regulatory compliance |
● Directive 2014/53/EU (Radio Equipment Directive) for the radio versions
● Directive 2014/30/EU (EMC Directive) for the non-radio versions
● Directive 2014/35/EU (Low-Voltage Directive) for the non-radio versions
● Directive 2011/65/EU (RoHS)
● Directive 2012/19/EU (WEEE)
● NRTL approved (product safety)
● FCC CFR 47 Part 15B (EMC) – Class A
● FCC CFR 47 Part 15C (RF)
● FCC CFR 47 Part 15E (RF)
● FCC listed (radio equipment)
● Please check the Product Approval Status Database at www.ciscofax.com/ for approval documents per country.
|
|
Sustainability |
● Circular design principles applied for product architecture, materials, and packaging
● Reduced foam in the boxes and 100% recyclable packaging design and a reduced amount of single-use plastics
● 100% Post-Consumer Recycled (PCR) plastic originating from end-of-life devices and old electronics used in the front speaker grille
● The video system is modular and upgradeable. It's manufactured with more sustainable, consciously chosen materials and is designed for easy repair, refurbishing, and recycling to extend the lifecycle of the product.
● Using built-in presence sensors and environmental sensors in the touch panel, it can provide real-time and historic occupancy metrics to control and optimize the workspace
● Cisco's takeback and reuse program enables you to return your end-of-use devices for free, via a simple, secure, and sustainable process.
|
Table 3. Product dimensions
|
Configuration |
Dimensions |
|
Wall-mount version |
● Height: 1230mm (48.4 in)
● Length, 2800mm (110 in)
● Width,138mm (5.4 in)
● Weight 120 kg (without screens)
|
|
Floor-stand version |
● Height: 1910mm (75.2 in)
● Length: 2800mm (110 in)
● Width: 924mm (36.4 in)
● Weight 172 kg (without screens)
|
|
Wall-stand version |
● Height: 1890mm (74.4 in)
● Length: 2800mm (110 in)
● Width: 152mm (6 in)
● Weight 135 kg (without screens)
|
|
Wall-mount version with screens |
Product dimensions may vary based on the display manufacturer / model used with the system. Approximate dimensions when connected with 75” screens
Approximate dimensions when connected with 65” screens
|
|
Floor-stand version with screens |
Product dimensions may vary based on the display manufacturer / model used with the system. Approximate dimensions when connected with 75” screens
Approximate dimensions when connected with 65” screens
|
|
Wall-stand version with screens |
Product dimensions may vary based on the display manufacturer / model used with the system. Approximate dimensions when connected with 75” screens
Approximate dimensions when connected with 65” screens
|
|
Packaging dimensions |
Wall Mount package: Box dimensions: 1650mm (66 in) x 1250mm (48 in) x 1000mm (40 in)
Wall Stand package: Box dimensions: 1652x659x219mm Weight 28kg
Floor stand package 1 (floor stand kit): Box dimensions: 1652x971x226mm Weight : 45Kg
Floor stand package 2 (rear panels): Box dimensions: 1446x1089x320mm Weight : 20kgs |
At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.
- Most in-stock orders placed Monday-Friday ship within 24-48 hours. General restrictions apply; please see our full shipping policy here.
- We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Creation Networks Nationwide Audiovisual Services - Sales, Design, Programming, Installation & Support - A Partner You Can Trust.
Creation Networks offers audiovisual & video conferencing equipment and professional services for projects of all sizes - from a single meeting room to a nationwide AV deployment. You can count on us for your audiovisual technology sales, design, configuration, programming, installation, and support. It is important that you get Top Quality products from the best manufacturers, and then purchase from a trusted partner who tests and installs what they sell, giving you the best value. Our goal at Creation Networks is to only represent the top products, test and install everything before recommending or selling our solutions. Contact us Today! 1.888.230.3661
