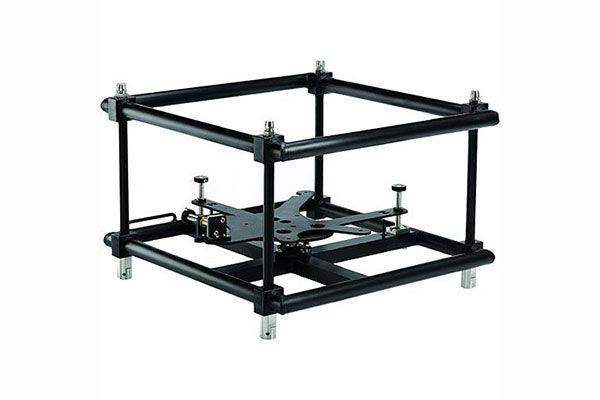

The 118-100107 Stacking Frame from Christie is a single assembly that fastens to the bottom of the projector. It can support up to three stacked projectors, in normal or inverted orientations.
The Stacking Frame has pitch, roll and yaw adjustments to allow for the accurate alignment of the overlaid images. Installation and adjustments can be done quickly and easily by one person.
The frame can be utilized with the M series of projectors if both units use their own Stacking Frame. For the E Series, the frame needs to be used with the optionally purchased stacker plate.
Features
- Independent controls for adjusting pitch, yah and tilt for quicker and more accurate setup
- Individual projector adjustments within a stack (up to 3 projectors high) - enabling modifications to a single projector without affecting the other stacked projectors
- Standard tubing (1.75 inch OD pipe) accommodates common burger and industry clamps
- Design enables easy access to projectors for installation, lamp/filter replacements and maintenance
Specification
Christie 118-100107-01 Specs
Packaging Info
| Package Weight | 58.1 lb |
| Box Dimensions (LxWxH) | 30.75 x 30.75 x 22.5" |
