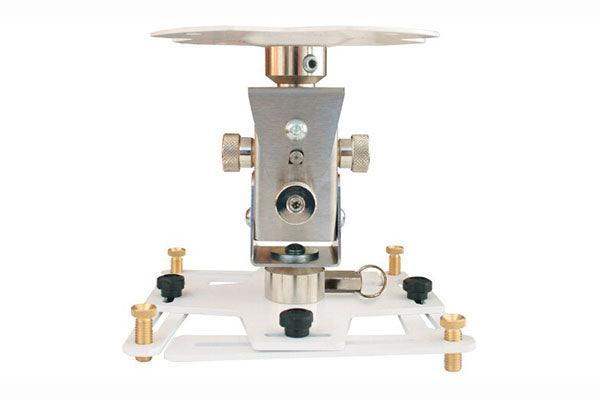

The Christie One Mount is a professional ceiling mount capable of fine tuning, allowing you to adjust pitch, yaw, and roll independently without tools. Thumb screws lock the projector in place after achieving final image alignment. This mount is equipped with a quick release pin to allow for easy projector serviceability, and is compatible with over 20 Christie projectors, including:
- DHD555-GS
- DHD600-G
- DHD675-E
- DHD775-E
- DHD851-Q
- DHD951-Q
- DWU555-GS
- DWU600-G
- DWU675-E
- DWU775-E
- DWU851-Q
- DWU951-Q
- DWX555-GS
- DWX600-G
- DWX851-Q
- DWX951-Q
- DXG1051-Q
- LW401
- LW41
- LW551i
- LW555
- LW601i-D
- LW651i-D
- LW720
- LW751i-D
- LWU421
- LWU501i
- LWU505
- LWU701i-D
- LX41
- LX501
- LX505
- LX601i
- LX605
- LX801i-D
Features
- Fine tune fingertip controls allow for precise tool-free adjustments
- Quick-release allows the projector to be disconnected from the mount for servicing without the need to remove hardware
- Ceiling plate included with mount
- Made in Italy
Specification
Christie 108-506102-01 Specs
| Adjustments | Roll: 30° Pitch: 30° Yaw: 360° |
| Load Capacity | 44 lb (20 kg) |
| Dimensions | 9.4 x 9.4 x 7.9" / 24 x 24 x 20 cm |
| Weight | 6.5 lb / 3 kg |
Packaging Info
| Package Weight | 7.03 lb |
| Box Dimensions (LxWxH) | 9.6 x 9.3 x 8.9" |
