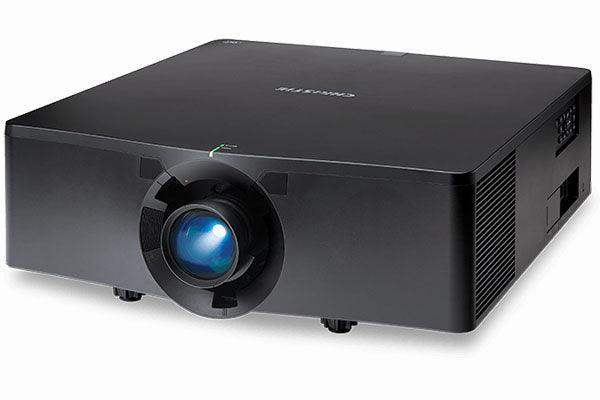

Christie DWU1400A-GS 14,250-Lumen WUXGA DLP Projector (Black, TAA-Compliant, No Lens) - 171-063100-01
Christie DWU1400A-GS 14,250-Lumen WUXGA DLP Projector (Black, TAA-Compliant, No Lens) - 171-063100-01 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
The Christie® DWU1400-GS 1DLP® laser projector provides 20,000 hours of reliable, virtually maintenance-free operation. Its small footprint, light weight, quiet operation, full suite of lenses and 24/7 operation durability makes this projector ideal for higher education, places of worship, conferences and smaller location-based entertainment venues. This model is also offered in a TAA-complaint variant. And the DWU1400-GS comes with a 5-year warranty for extra peace of mind.
Built-in Christie Twist™ allows you to seamlessly edge-blend and stack multiple projected images on any 2D or 3D surface and precisely control the geometry of each projector through an easy-to-use grid-point / mesh interface.
With Twist onboard, the DWU1400-GS is compatible with Christie Mystique™ , our automated camera-based alignment and recalibration solution so you can install, align and calibrate multi-projection systems in minutes, with unsurpassed accuracy. For simple 2D setups using up to 3 projectors in a single horizontal array on a flat screen or surface, you can download Mystique Lite at no additional cost and purchase an inexpensive supported webcam to get started.
Key features
- Built-in warping, blending, & alignment – Built-in proprietary Christie Twist and Christie Mystique compatibility, for manual or automated camera-based warping, blending, and alignment
- Compatible with Christie Intelligent Camera (CIC) – Use CIC to trigger autofocus, automatically calibrate projector color, optimize color uniformity, and more
- Durability - 20,000 hours of consistent illumination performance makes it ideal for 24/7 operation applications
- Motorized interchangeable lens suite - Easy powered zoom, focus, and offset using the remote control
- Flexible connectivity - Optional wireless module for device flexibility, easy presentation set up and standard HDBaseT input
- Omnidirectional – Operates in any orientation for unlimited installation flexibility
- Eco Mode – Reduces brightness to 50%, significantly extends the lifetimes of your projector, and results in quieter operation
- Supports full HD 3D content – For 3D with a single or multi-projector setup via 3D sync in/out capabilities
- HDBaseT – Delivers Full HD video, audio, network, and control commands on a single ethernet cable
- Picture-in-Picture/Picture-by-Picture – Simultaneously delivers 2 digital signals via HDMI & DVI ports for enhanced virtual conferencing
- Medical Training Capable - DICOM simulation mode for advanced grayscale image reproduction, perfect for analyzing x-rays and medical scans for training purposes
- TAA-compliant
- 5-year warranty
Specifications
14,250
ISO lumens
12,000
ANSI lumens
4 Segment (RGBY) - 3X speed
Color wheel
4,000,000:1* with Christie RealBlack™
Contrast ratio
6,000:1
Dynamic contrast
1-chip 0.67" DMD S600HB
Display type
Resolution
WUXGA (1920 x 1200)
Illumination type
High-efficiency blue laser phosphor
Illumination performance (hrs)
20,000 to 50% brightness
Orientation
Omnidirectional
Scan rates
Horizontal: 15-91 kHz Vertical: 24-120 Hz
Pixel clock rate
594 MHz (4096 x 2160)
Signal inputs
- Standard:
- - HDMI 2.0 x 2 (HDCP 1.4/2.2)
- - DVI-D x 1 (digital only)
- - RJ45 x 1 (HDBase T)
- - RJ45 x 1 (Control over wired network connection)
- - 3G-SDI x 1 (BNC)
- - USB x 1 (Type A)
- - RS232 in
- - Built-in backlit keypad
- - Wired remote control 3.5mm stereo - loop out available for daisy chaining
Signal outputs
- - HDMI x 1 out
Controls and networking
- - Ethernet (10/100) RJ45
- - Built-in backlit keypad
- - Wired remote control (3.5mm stereo)
- - IR remote
- - Control via HDBaseT
- - RS232 in
Warping and blending
- Standard:
- - Christie Twist™
- Optional:
- - Christie Twist Premium and Twist Pro
- - Christie Mystique™ automated camera-based alignment
Lens mount
- - Boresight adjustable
- - Motorized horizontal and vertical lens offset
- - Motorized zoom and focus adjustment
Lens options
- Lens UST 0.36
- Lens 0.65-0.75
- Lens 0.75-0.95 zoom G/GS
- Lens 0.95-1.22 zoom G/GS
- Lens zoom HP G/GS 1.22-1.52
- Lens 1.52-2.89 zoom G/GS
- Lens 2.90-5.50:1 zoom G/GS
offsets for 0.36:1 UST lens
- Fixed
offsets for all zoom lenses
- +100% vertical (600 pixels)
- +30% horizontal (288 pixels)
Power requirements
- Operating voltage: - 100-240 VAC @50/60 Hz
- Power consumption: 985W (max)
- Operating current: 10A (100V)
Dissipation
- - ECO1 Mode: 830 BTU
- - ECO2 Mode: 520 BTU
Audible Noise
- - Standard mode: 40dBA
- - Eco mode 37dBA
Dimensions (L x W x H)
- 21.9 x 18.9 x 7.5 "
- 555 x 480 x 190mm
Shipping dimensions (L x W x H)
- 29.9 x 23.6 x 14.7" (759 x 599 x 373mm)
Weight
- - 50.3lbs (22.8kg) w/o lens
Shipping weight
- - 66.1lbs (30kg)
Operating environment
- - 0-40 C (32-104 F)
- - Relative humidity: 10-85% non-condensing
Regulatory
- This product conforms to all relevant European directives, standards, safety, health and environmental concerns
- - Directives: RoHS REACH WEEE
- - Contact Christie for timing of certifications: UL/CSA/IEC 60950-1
- FCC Class A CE FDA CCC KC PSE BIS VCCI RCM BSMI CU EAC
Limited warranty
- - 5 years parts and labor on the projector
- - 5 years or 20,000 hours parts and labor on the illumination system*
- - Contact an authorized Christie representative for full details of our limited warranty
- *Please reference the Christie Standard Limited Warranty document for details
