Christie DWU1100A-GS 11,200-Lumen WUXGA 1DLP Projector (No Lens) - 171-045100-01 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00

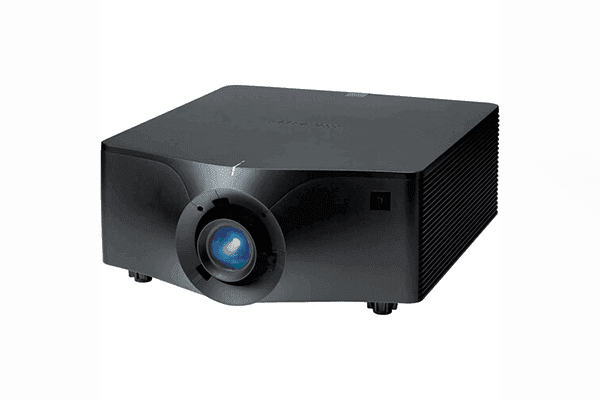

Featuring laser illumination, the Christie® DWU1100-GS 1DLP® projector eliminates the need for lamp and filter replacements, providing 20,000 hours of life. Its small footprint, light weight, quiet operation, full suite of lenses and 24/7 operation durability makes this projector ideal for higher education, places of worship, conferences and smaller location-based entertainment venues. This model is also offered in a TAA-compliant variant. And the DWU1100-GS comes with a 5-year warranty for extra peace of mind.
Built-in Christie Twist™allows you to seamlessly edge-blend and stack multiple projected images on any 2D or 3D surface and precisely control the geometry of each projector through an easy-to-use grid-point / mesh interface.
Working in conjunction with Twist, Christie Mystique™ automates multi-projector warping and blending. With the click of a mouse, the camera-based software automatically aligns, stacks, and blends multi-projector systems in minutes with unsurpassed accuracy. For simple 2D setups using up to 3 projectors in a single horizontal array on a flat screen or surface, you can download Mystique Lite at no additional cost and purchase an inexpensive supported webcam to get started.
Key features
- Built-in warping, blending, & alignment – Built-in proprietary Christie Twist™ and Christie Mystique™ compatibility, for manual or automated camera-based warping, blending, and alignment
- Compatible with Christie Intelligent Camera (CIC) – Use CIC to trigger autofocus, automatically calibrate projector color, optimize color uniformity, and more
- Durability - 20,000 hours of consistent illumination performance makes it ideal for 24/7 operation applications
- Motorized interchangeable lens suite - Easy powered zoom, focus, and offset using the remote control.
- Flexible Connectivity - Optional wireless module for device flexibility, easy presentation set up and standard HDBaseT input
- Omnidirectional – Operates in any orientation for unlimited installation flexibility
- Eco Mode – Reduces brightness to 50%, significantly extends the lifetimes of your projector, and results in quieter operation
- Supports Full HD 3D content – For 3D with a single or multi-projector setup via 3D sync in/out capabilities
- HDBaseT – Delivers Full HD video, audio, network, and control commands on a single ethernet cable
- Picture-in-Picture/Picture-by-Picture – Simultaneously deliver 2 digital signals via HDMI & DVI ports for enhanced virtual conferencing
- Medical Training Capable - DICOM simulation mode for advanced grayscale image reproduction, perfect for analyzing x-rays and medical scans for training purposes
- TAA-compliant
- 5-year warranty
Specifications
11,850
ISO lumens
10,000
ANSI lumens
4 Segment (RGBY) - 3X speed
Color wheel
4,000,000:1* with Christie RealBlack™
Contrast ratio
6,000:1
Dynamic contrast
1-chip 0.67" DMD
Display type
Resolution
WUXGA (1920 x 1200)
Illumination type
High-efficiency blue laser phosphor
Illumination performance (hrs)
20,000 to 50% brightness
Orientation
Omnidirectional
Scan rates
Horizontal: 15-91k Hz Vertical: 24-120 Hz
Pixel clock rate
594 MHz (4096 x 2160)
Signal inputs
- Standard:
- - HDMI 2.0 x 2 (HDCP 1.4/2.2)
- - DVI-D x 1 (digital only)
- - RJ45 x 1 (HDBase T)
- - 3G-SDI x 1 (BNC)
- - USB x 1 (Type A)
Signal outputs
- - HDMI
Controls and networking
- - RS232 In
- - Control via HDBaseT
- - Ethernet (10/100) RJ45 with ChristieNET connectivity
- - Wired remote control (3.5mm stereo) - Loop out available for daisy chaining
Warping and blending
- Standard:
- - Christie Twist
- Optional:
- - Christie Twist Premium and Twist Pro
- - Christie Mystique automated camera-based alignment
Lenses
- - Motorized interchangeable lens suite
Power requirements
- Operating voltage:
- - AC 100-240V,50/60 Hz
- Power consumption:
- - 850W at 110 VAC input
Dissipation
- - Normal Mode: 2899 BTU/hr
- - ECO2 Mode: 1466 BTU/hr
Audible Noise
- - Typical 37 dBA
- - Eco mode 35 dBA
Dimensions (L x W x H)
- 21.9 x 18.9 x 7.5 "
- 555 x 480 x 190mm
Weight
- 50.3lbs (22.8kg) w/o lens
Operating environment
- - 0-40C (32-104F)
- - Relative humidity: 10-85% non-condensing
Limited warranty
- - 5 years parts and labor on the projector
- - 5 years or 20,000 hours parts and labor on the illumination system*
- - Contact an authorized Christie representative for full details of our limited warranty
- *Please reference the Christie Standard Limited Warranty document for details.
Accessories (standard)
- - IR remote w/ wired remote jack (wire not included)
- - AC line cords for projector
- - Rear input/keypad panel cover
- - User manual
Shipping dimensions (L x W x H)
- 29.9 x 23.6 x 14.7" (759 x 599 x 373mm)
