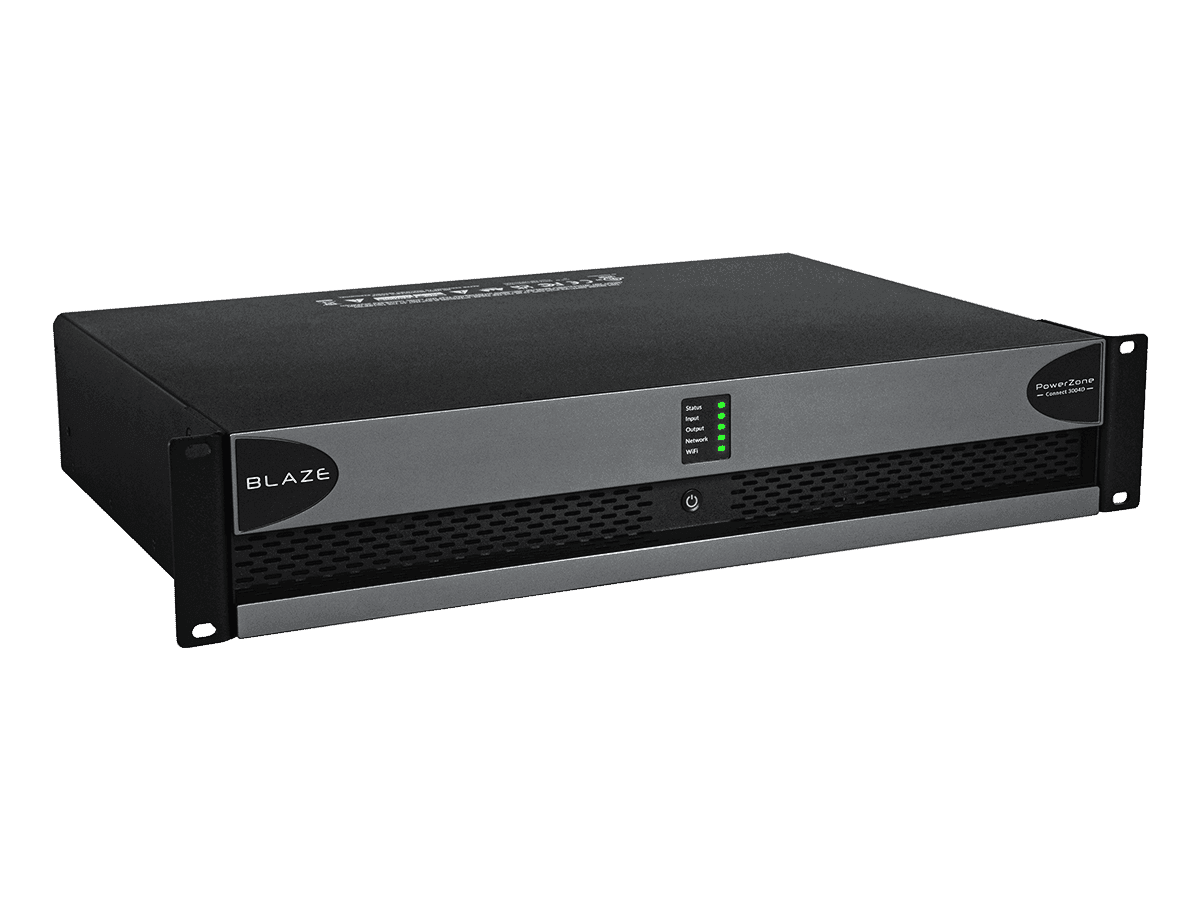

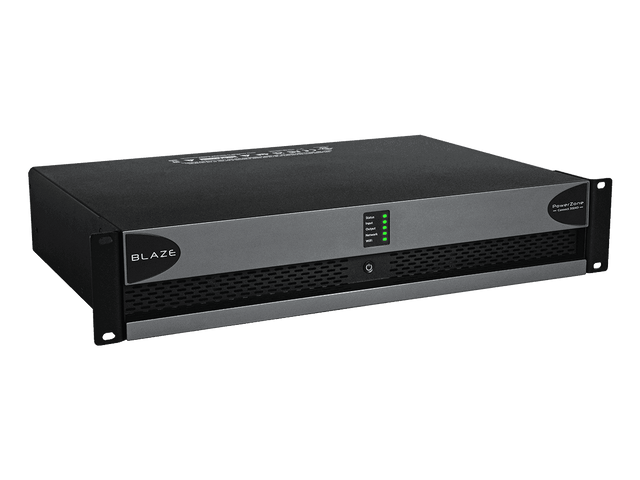

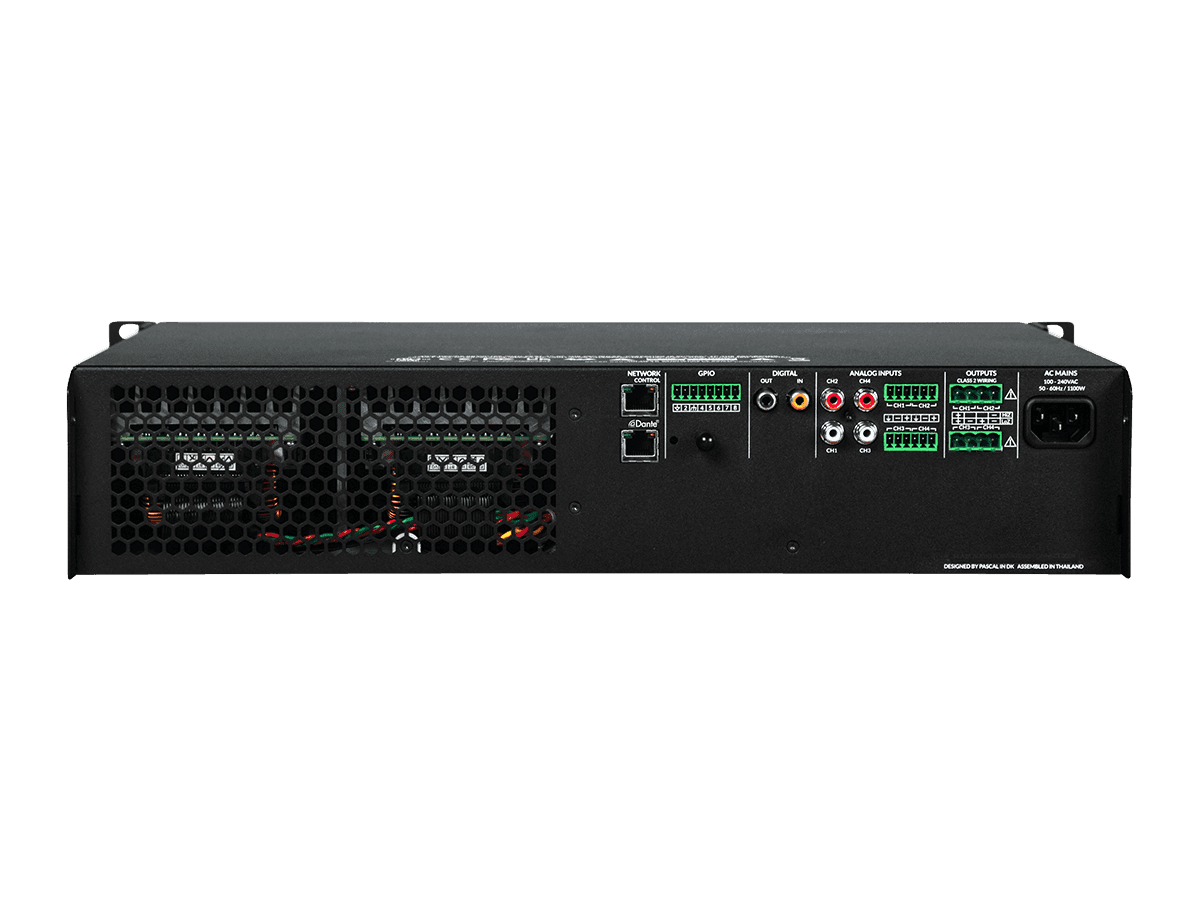

Blaze Audio PowerZone Connect 3004D - 3000 W DSP-enabled Class-D amplifier with 4 channels and Dante - LBX-888-008
Blaze Audio PowerZone Connect 3004D - 3000 W DSP-enabled Class-D amplifier with 4 channels and Dante - LBX-888-008 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Blaze Audio PowerZone Connect 3004D - 3000 W DSP-enabled Class-D am...
The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000 W to 6000 W. The PowerZone™ Connect 2U series powers both conventional low-impedance (2 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features proportional distribution in both Lo-Z and Hi-Z modes. Specific models of the PowerZone™ Connect 2U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations.
Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
Features
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Audinate Dante® AoIP compatibility
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- UREC™ universal power supply with PFC
- Flexible power sharing across output channels
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- 5 Year warranty
Specs
| Total System Power |
3000 W |
|---|---|
| Output Power @ 2Ω |
4 x 750 W (SE)* |
| Output Power @ 4Ω |
4 x 750 W (SE) |
| Output Power @ 8Ω |
4 x 400 W (SE) |
| Output Power @ 70V |
2 x 1200 W (BTL) |
| Output Power @ 100V |
2 x 1500 W (BTL) |
| Power Consumption |
700 W |
| Dimensions |
88 x 440 x 332 mm |
| Weight |
7.4 kg |
| Operating temperature |
0-40° C |
