Blaze Audio CCA10i-BA-B Constant Curvature Array, Scalable 20° Vert...

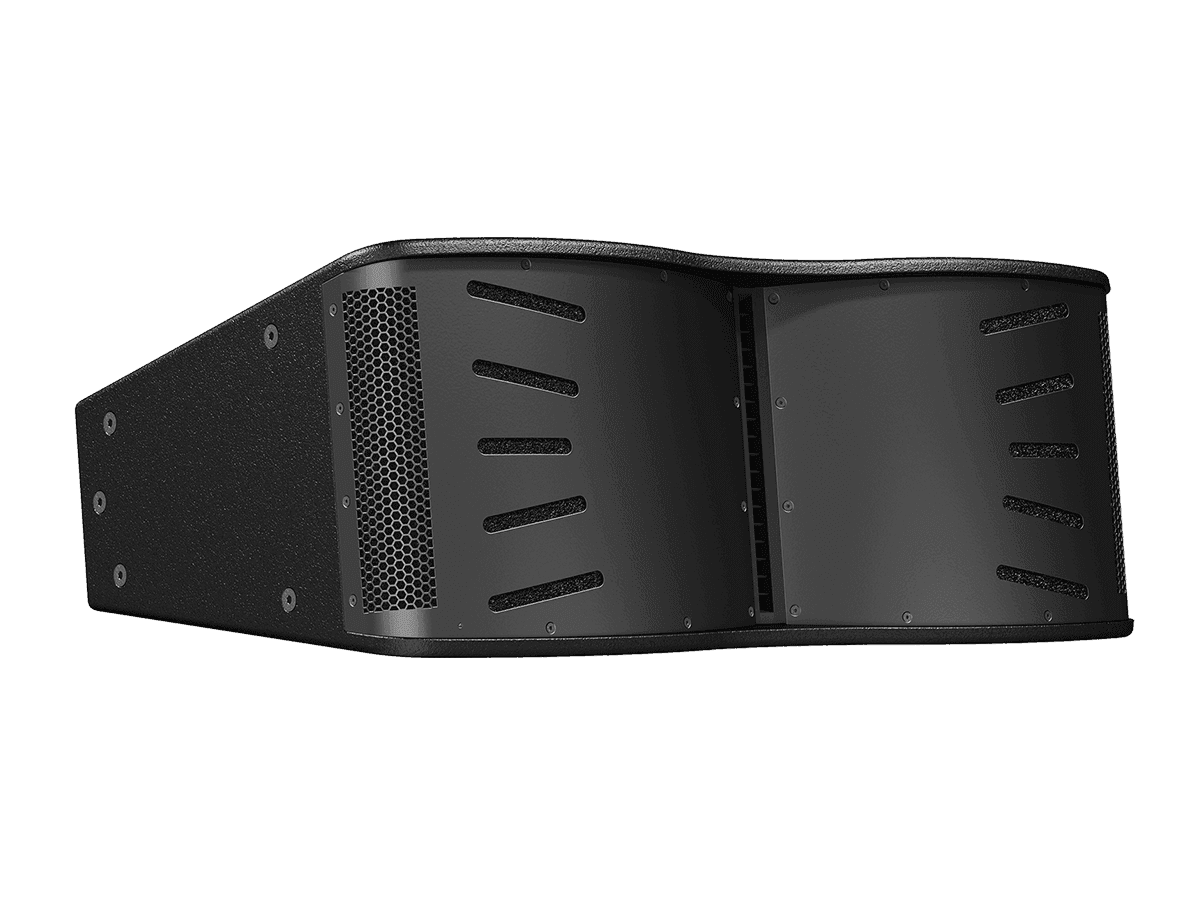

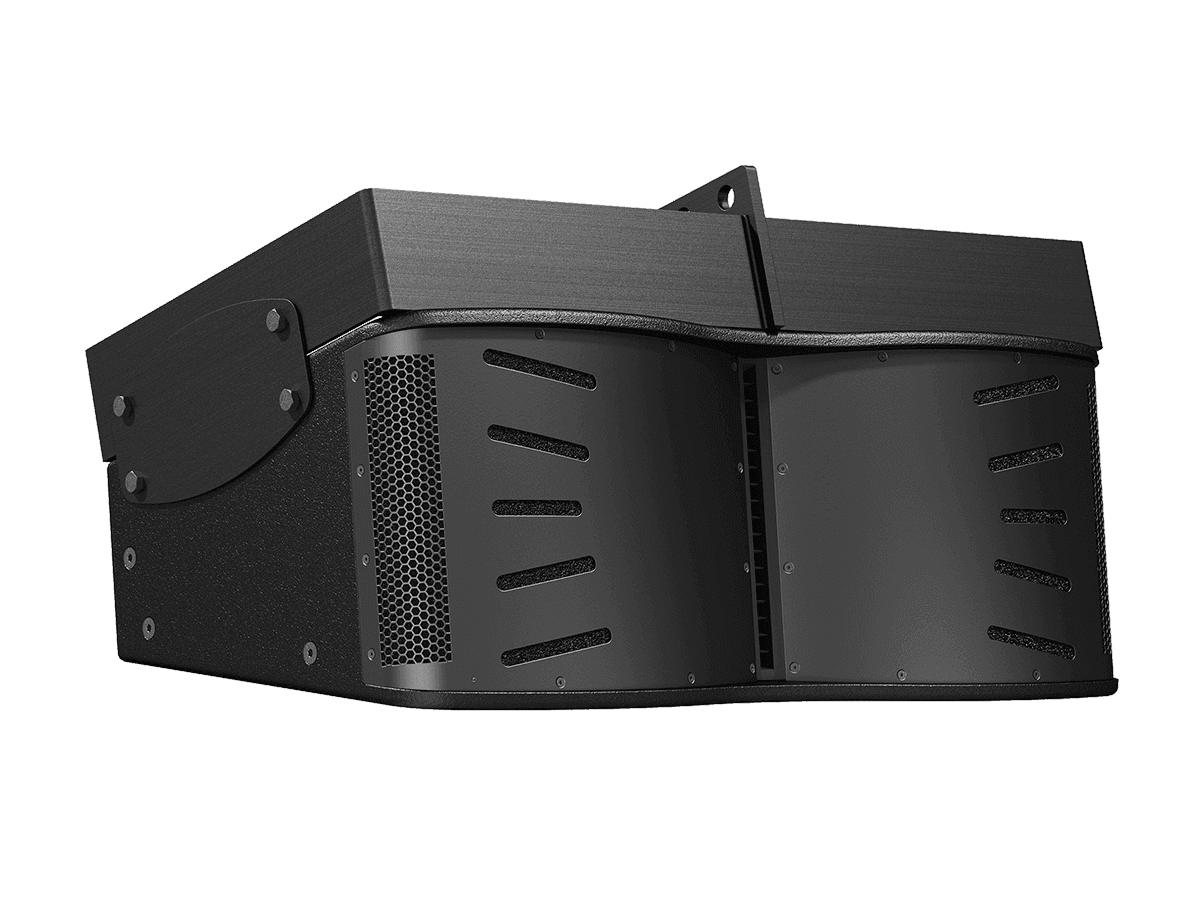

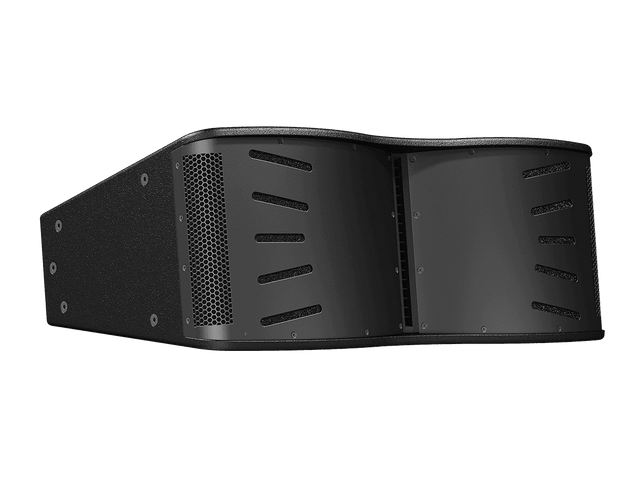

The Black CCA10 is a compact arrayable point source loudspeaker, designed for medium-sized venues to large distributed systems that need a flexible, scalable speaker solution.

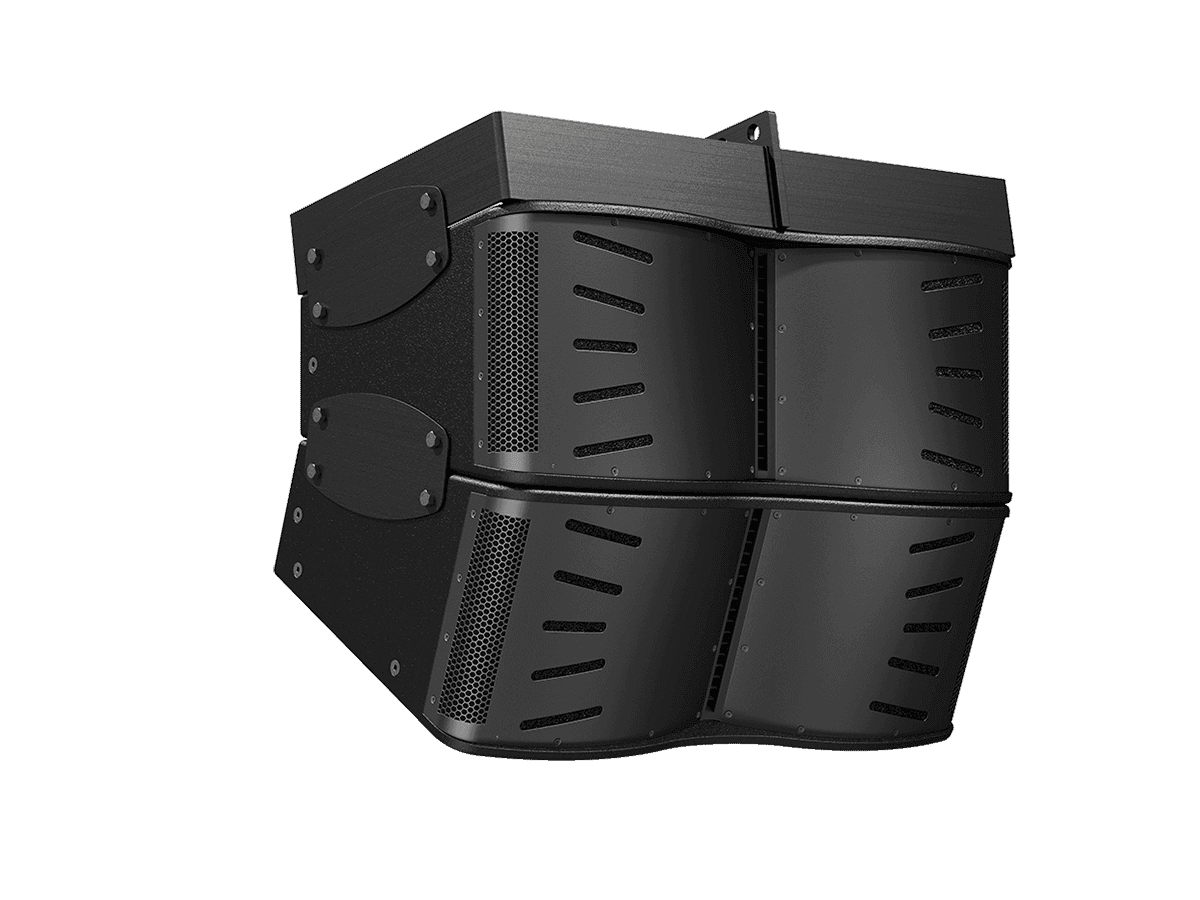

Mounted horizontally with tight acoustic centers to minimize comb filtering, each CCA10 enclosure provides a fixed 20° vertical coverage and can be flown with additional enclosures in vertical arrays.
Featuring a coaxial compression driver that uses separate midrange and high-frequency polymer ring- shaped diaphragms, the compression driver delivers an extremely wide response from 420 Hz – 18,000 Hz.
Two 10” high-excursion ultra-low distortion drivers offer reduced power compression, providing efficient and accurate bass reproduction down
to 52 Hz.
Features
- 3-way Arrayable Point Source, designed for Bi-Amping
- Constant Curvature waveguide for unprecedented array coherence
- Precision 160 Degree Symmetrical Horizontal pattern control
- Variable vertical coverage in 20° increments (one enclosure 20° and max 12 enclosures)
- Dual 10” ultra low distortion, high excursion drivers
- System range 52 Hz – 18 kHz
- Exceptionally high SPL
- Rugged Polyurea coating for extreme durability
- System integration with BLAZE amplifiers
Specs
| Frequency Response (-3dB)1 |
52 Hz – 18 kHz |
|---|---|
| Frequency Range (-10 dB)1 |
45 Hz – 18 kHz |
| Recommended High-Pass Filter |
48 Hz – w/ minimum 24 dB / Butterworth Filter |
| Horizontal Nominal Dispersion (-6 dB) |
160° |
| Vertical Nominal Dispersion (-6 dB) |
20° |
| Recommended Crossover Frequency |
420 Hz (acoustic, active, external DSP) |
| Long Term Power Handling (Low Freq.)2 |
600 W (2400 W peak) |
| Long Term Power Handling (High Freq.) 2 |
110 W (440 W peak) |
| Low Frequency Impedance |
4 ohms |
| High Frequency Impedance |
8 ohms |
| Pressure Sensitivity (Low Freq @ 1W/ 1m)3 |
101 dB |
| Pressure Sensitivity (High Freq. @ 1W/1m)3 |
111.4 dB |
| Max System SPL (@ 1W/1m) |
131 dB SPL (140 dB SPL peak) |
