Biamp Vocia VI-8 8-Channel Live Video Input Device - 911.0384.900

Description

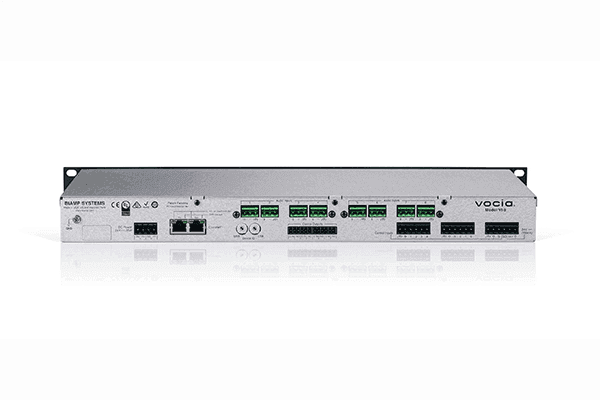

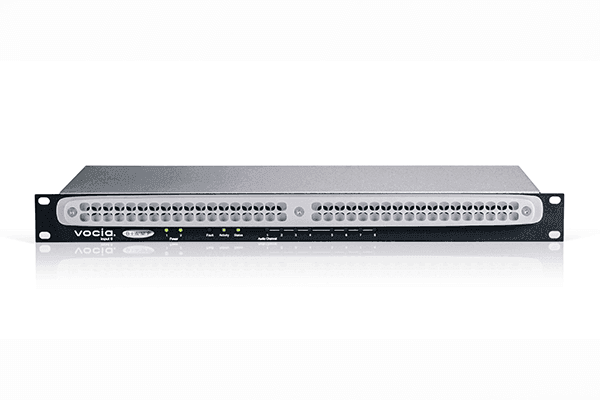

The Vocia Input 8 (VI-8) is designed to facilitate live audio paging from user sources to emergency and non-emergency zones in a Vocia system. The VI-8 will allow direct paging access from eight sources via analog mic/line level inputs or CobraNet digital audio connections. Nine logic inputs can be assigned to various Vocia control events including paging control. A logic output and four relay outputs can be assigned to control events. The logic output may be used to report status from one or several daisy-chained VI-8s to an external system. The logic inputs and output are monitored.

Features

• 8 analog mic/line level or CobraNet inputs
• 1 logic and 4 relay control outputs
• 8 logic inputs
• Device status monitoring via control logic input and output
• Power via dual 24V DC inputs (redundant inputs) power supply included
• Software-configurable signal processing including volume control, filters, and compressor/limiting
• Rack mountable (1RU)
• Dual CobraNet ports for redundant Ethernet connections
• Device and logic I/O status monitoring
• Rotary switches for device identification
• IP30 compliant
• CE marked and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
