Biamp Desono KUBO5T 5.25" compact design two-way surface mount loudspeaker, 70 - 100 volt / 30 watts or 16 ohms / 80 watts, mounting bracket and safety cable included (Pair, White) - 911.0690.900
Biamp Desono KUBO5T 5.25" compact design two-way surface mount loudspeaker, 70 - 100 volt / 30 watts or 16 ohms / 80 watts, mounting bracket and safety cable included (Pair, White) - 911.0690.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Biamp Desono KUBO5T 5.25" compact design two-way surface mount...

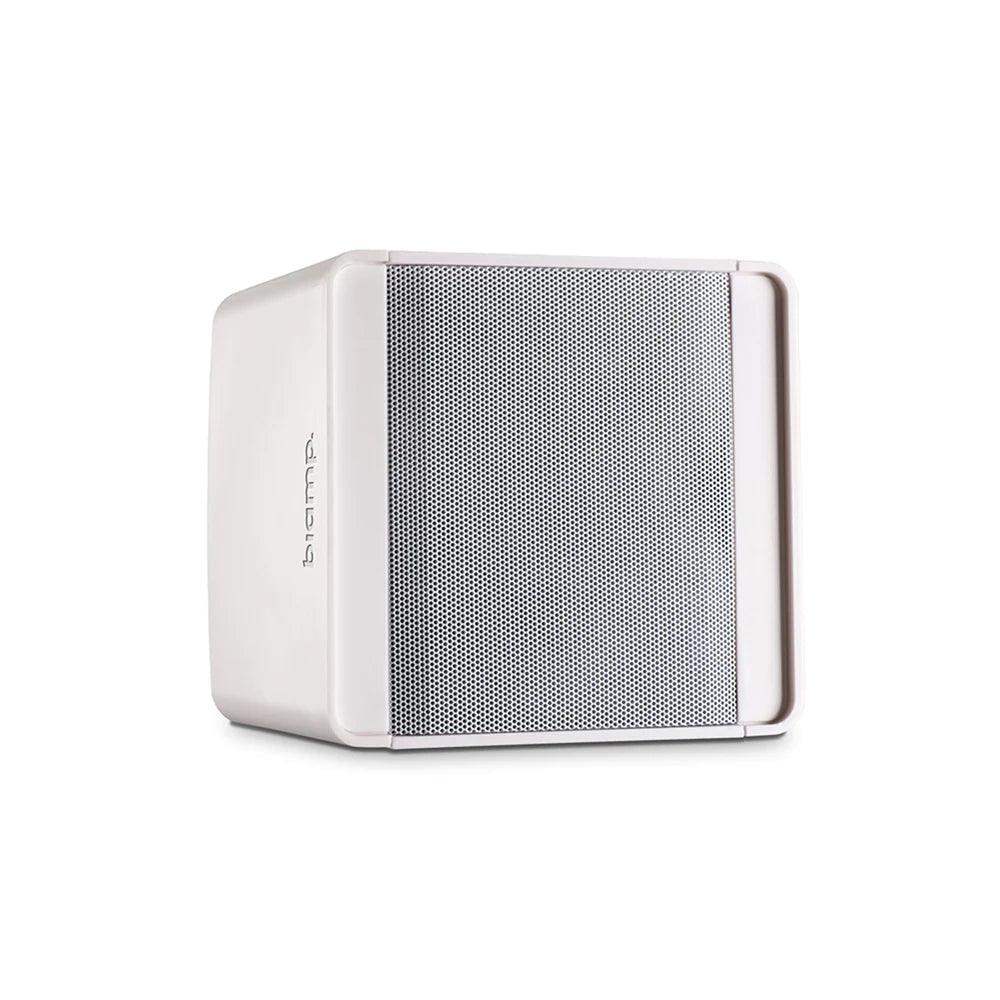

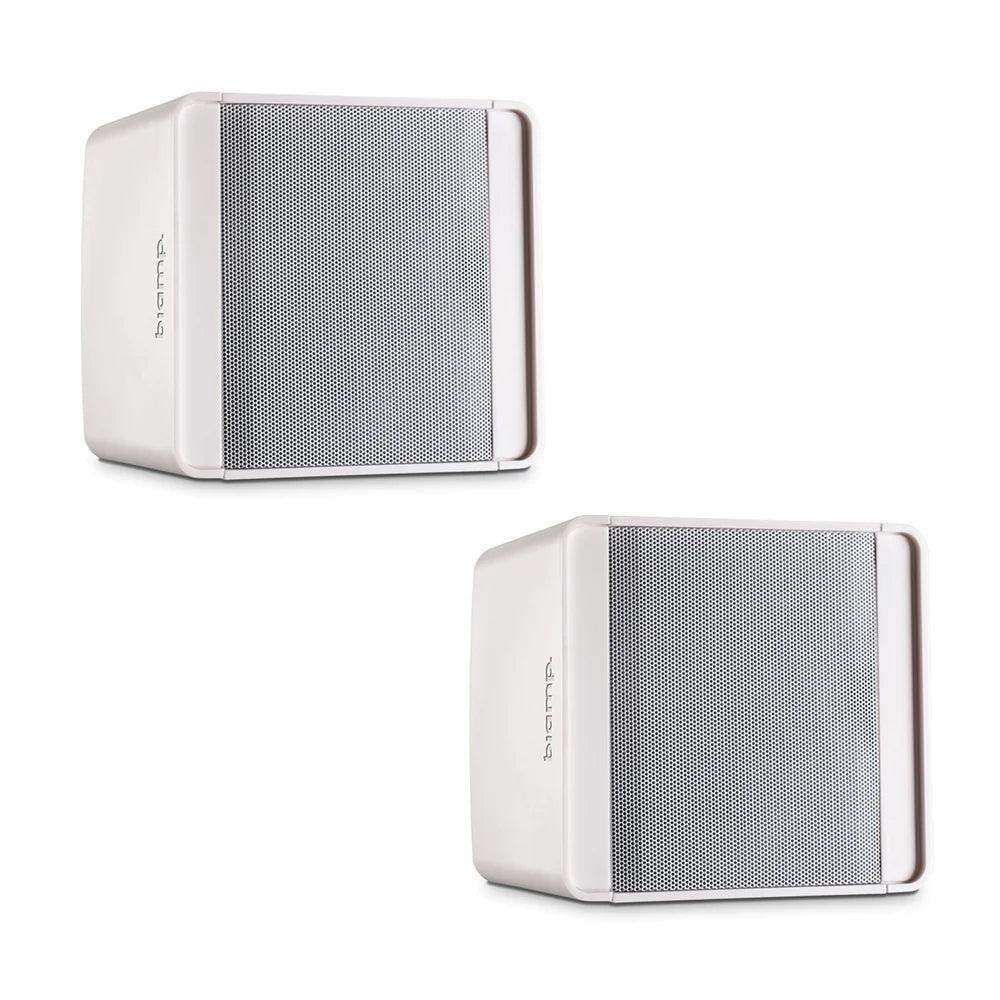

Sold as a pair, the stylish and subtle cube-shaped designed KUBO5T is a 5.25” two-way compact loudspeaker with bass reflex port. It can be used as a 70/100 volt or low impedance 16 ohms loudspeaker producing up to 80 watts dynamic power. The K-Mount bracket offers easy cable management and 140° vertical or horizontal mounting flexibility. Combined with the special designed fixing K-bolts you can install the loudspeaker in a safe and comfortable way on any type of wall or ceiling. Easy daisy chaining of multiple KUBO loudspeakers can be done via the in / link connection with euroblock connectors. The installer friendly endcaps, held in place by 14 integrated strong neodymium magnets, hide all connections and bracket hardware on both sides. This top-notch product offers amazing sound quality and performance in a discrete and neutral housing fitting any kind of interior.
Available in black or white.
Features
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated
- Tap switch allows for 70V/100V or 16Ω low impedance operation
- Loudspeaker overload protection for 24/7 failsafe operation
Specifications
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 94 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 80° x 80° |
| Transducers | LF 1 x 5.25" (133 mm) coated paper cone HF 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 28V 50W @ 16Ω (200W peak) |
| Nominal Sensitivity @ 1m | @ 1W 87 dB @ 2.83V 84 dB |
| Nominal Maximum SPL @ 1m | Peak 110 dB Continuous 104 dB |
| Transformer | 70V: 30W, 15W, 7.5W, 3W, 1.5W 100V: 30W, 15W, 6W, 3W |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 50W - 100W @ 16Ω (28V - 40V) |
| Input Connection | (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm²)conductors |
| Controls | Power tap / low impedance selector switch |
| Mounting Provisions | U-bracket |
| Environmental | IP40 per IEC 60529 |
| Dimensions H x W x D | 155 mm x 164 mm x 136 mm (6.1" x 6.4" x 5.3") |
| Weight | 2 kg (4.4 lbs) |
| Finish | ABS plastic, matte finish, White or Black |
| Grille | Steel, White (RAL 9016) or Black (RAL 9011) finish |
| Accessories (included) | U-bracket; safety cable |
| Accessories (optional) | LRABAS(-BL/-W): Basic light rail adaptor, black or white LRAPRE(-BL/-W): Premium light rail adaptor, black or white |
