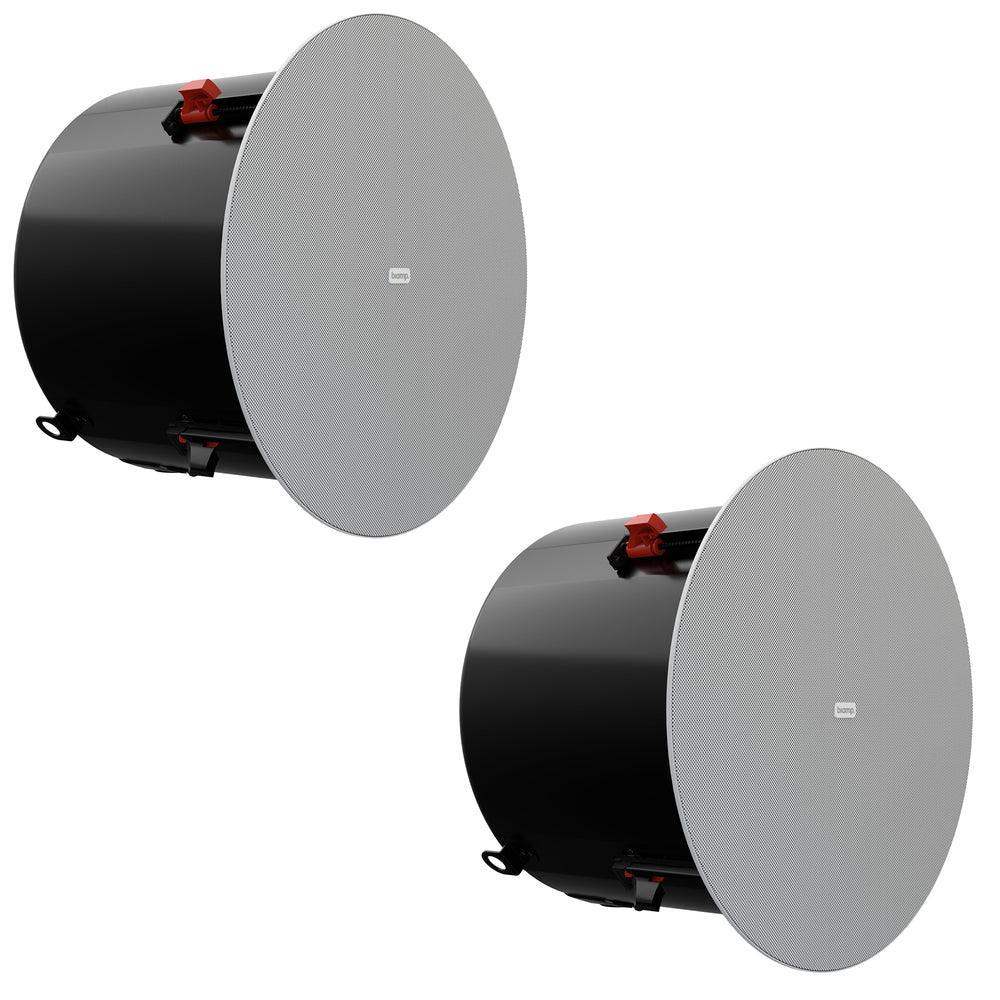

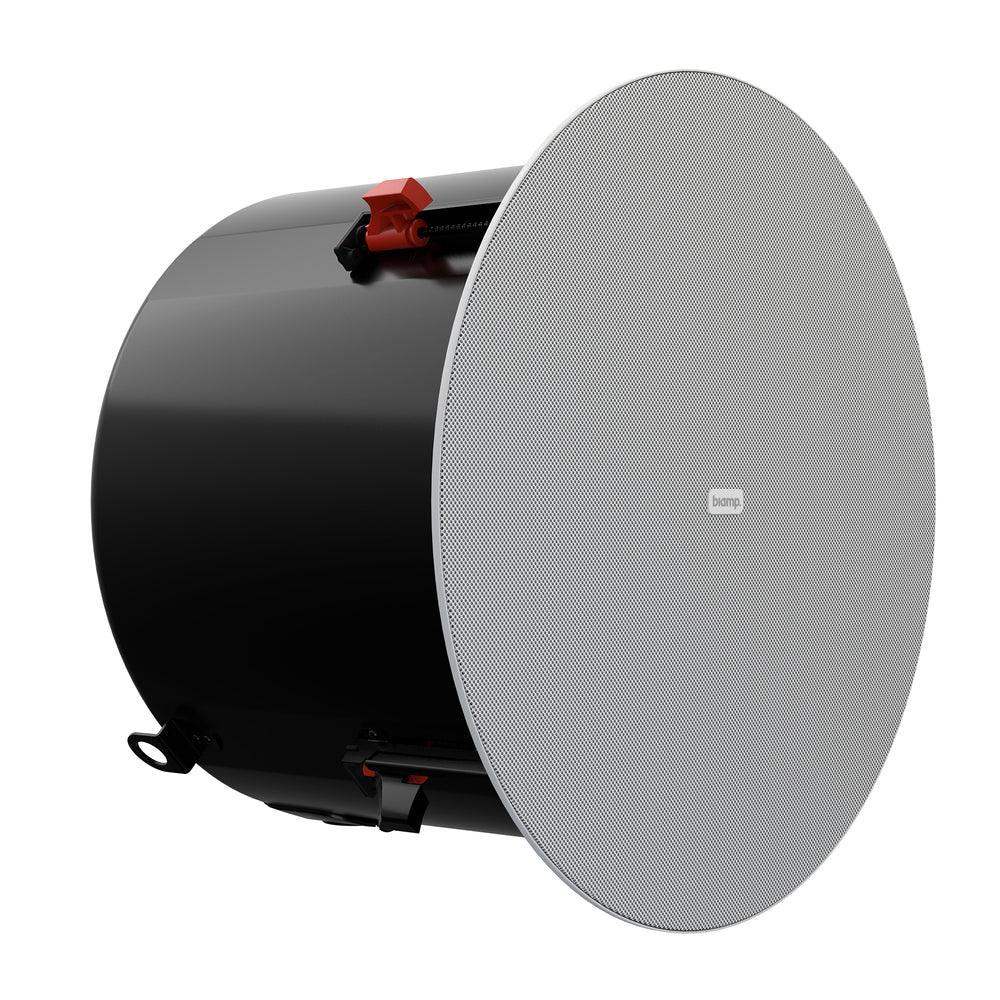

Biamp Desono DX-IC10SUB-W 10” High Output In-Ceiling Subwoofer w/ Internal Crossover. 8 Ohm or 70V/100V operation (White / Pair) - 910.0101.900
Biamp Desono DX-IC10SUB-W 10” High Output In-Ceiling Subwoofer w/ Internal Crossover. 8 Ohm or 70V/100V operation (White / Pair) - 910.0101.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Biamp Desono DX-IC10SUB-W 10” High Output In-Ceiling Subwoofer w/ I...
Sold as a pair, The Desono DX-IC10SUB ceiling mount subwoofer provides a powerful, high-impact bass response intended to augment any combination of Desono DX full-range models. By including a complement of DX-IC10SUBs into a distributed system, musical results that equal or exceed that of much larger and more costly surface-mount systems can readily be achieved. The DX-IC10SUB’s clean, clear bass response provides a compelling attraction for shoppers in a retail environment, and a memorable experience for bar, pub, and restaurant patrons.
Dependent on program content and the size of the full-range DX models, the ratio of DX-IC10SUBs to full-range models may vary from as few as 1:6 to as many as 1:1. For example, one DX-IC10SUB will provide a strong supporting bass response for six DX-IC4s, while four DX-IC10SUBs will better complement six of the more powerful DX-IC8s or DX-IC10s.
Features
- High intelligibility with exceptional uniform coverage
- Fast installation with SpringLock™ mounting clamps
- Consistent, wide dispersion up to 16 kHz
- Attractive edgeless magnetic grille design
- Conduit knock-outs on the input cover meet plenum air space handling requirements
Specifications
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 42 Hz to 200 Hz |
| Nominal Beamwidth (H x V) | omnidirectional |
| Transducers | LF 1 x 10" (254 mm) |
| Sensitivity | 93 dB (2.83 V) 93 dB (1W at rated impedance 8 Ω) |
| Nominal Continuous Power Handling | 40 V (200W @ 8 Ω) |
| Nominal Maximum SPL | Peak 122 dB Continuous 116 dB |
| Autoformer | 70V: 200 W, 100 W, 50 W, 25 W 100V: 200 W, 100 W, 50 W |
| Recommended Amplifiers | 200 W - 400W @ 8 Ω, (40 V - 57 V) |
| Required Accessory | 41 Hz Electronic high pass filter |
| Input Connection | 4-position Euroblock connector |
| Controls | Front-face wattage / low impedance selector switch |
| Mounting Provisions | 4 SpringLock mounting clamps with 3-inch grip range |
| Certifications | ETL listed to comply with UL1480, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90 |
| Dimensions W x D | 394 mm x 263 mm (15.51" x 10.37") |
| Weight | TBD |
| Finish | Back Can: Black, Matte finish Steel Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish. |
| Grille | Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish. |
| Cutout Diameter | 360 mm (14.17") |
| Accessories (included) | C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
| Model | DX-IC10SUB-W - loudspeaker with White grille |
| Accessories (optional) | New Construction Brackets (SPA-NC600) Black Grilles (SPA-GRB600) High Humidity Grilles (SPA-GHH600) 48" Tile Rails (SPA-RAIL48) Plenum-rated Dual-RJ45 Adapter (SPA-CCA200) |
