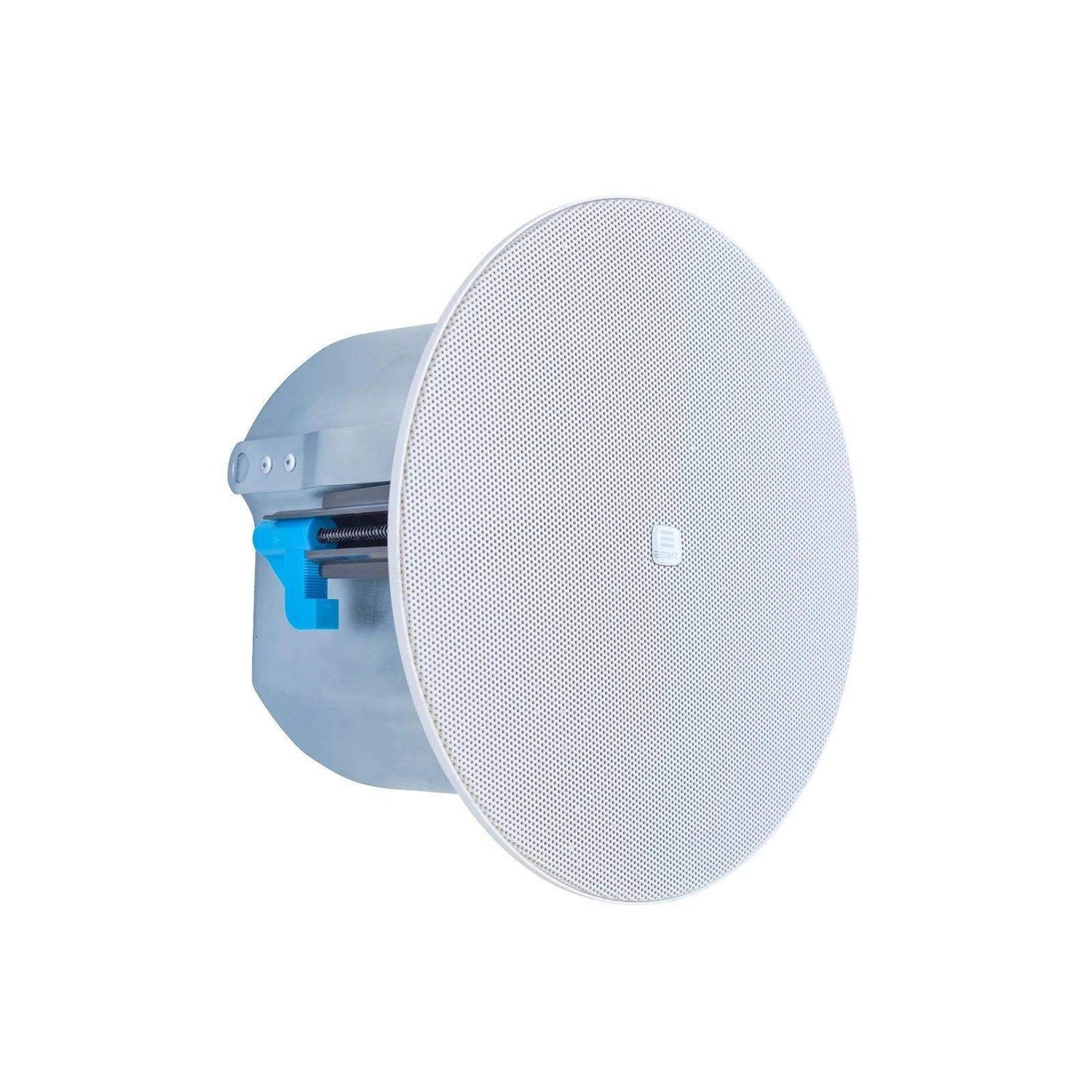

Biamp Desono CM30DTD 4.25” two-way thin edge design ceiling loudspeaker 100-70 volt / 30 watts, 16 ohms / 60 watts, white, front frame integrated neodymium magnets and back can (Pair)

Sold as a pair, The CM30DTD 4.25" two-way built-in loudspeaker delivers dynamic music reproduction with a defined bass response thanks to a sealed back can and ported bass design. The CM30DTD can be combined with other models in the CM range to create the perfect combination for your space.

The CM30DTD is capable of 16 ohm or 70/100V operation, conveniently selectable on the speaker's front panel. A solid cable management system, loudspeaker clamps, and integrated seismic safety tabs make the CM30DTD an installer-friendly choice.

Speakers should enhance the space, so the CM30DTD is designed with a thin edge grille and integrated neodymium magnets guaranteeing an easy, smooth and elegant integration in every environment.

Features

• Thin-edge loudspeaker grille for elegant integration
• User-friendly grille mounting due to integrated strong neodymium magnets
• Easily paintable in any RAL color
• Installer-friendly grille safety wire speeds up installation
• Included tile bridge support rails prevent ceiling tile sag
• Quick installation with two fast screwing loudspeaker clamps
• Minimal built-in depth with uncompromised acoustical performance
• Loudspeaker overload protection for a 24/7 failsafe operation
• Front panel selection of 16 ohm or 100V/70V operation
• Enhanced cable management with incorporated strain relief
• Cable guidance along with provision for a cable gland
• In & Link connection with permanent pass through on the euroblock connector
• Two integrated seismic safety tabs allowing for connection of safety cables

Specifications

Community CM30DTD Specifications:

• outside diameter in mm: 223
• cutout in mm: 193
• loudspeaker system: 2-way
• woofer cone material: polypropylene
• mounting system: 2 screws
• 100V transformer power taps in watts: 30 - 15 - 7.5 - 3.75
• impedance in ohms: 16
• low impedance RMS power in watts: 50
• max SPL 1m in dB: 108
• main construction material: ABS plastic
• applicable in 100V: yes
• Vertical dispersion angle 1000 Hz: 180°
• Net weight product in kg: 2.5
• depth in mm: 131
• installation grip range in mm: 3 - 65
• woofer size in inch: 4.25
• tweeter size in inch: 1
• colour: white
• 70V transformer power taps in watts: 30 - 15 - 7.5 - 3.75 - 1.75
• low impedance dynamic power in watts: 80
• SPL 1W/1m in dB: 88
• frequency response in Hz: 75 - 20K
• grille main material: steel
• applicable low impedance: yes
• Horizontal dispersion angle 1000 Hz: 180°
• closest RAL colour (subject to deviations(: RAL9010
