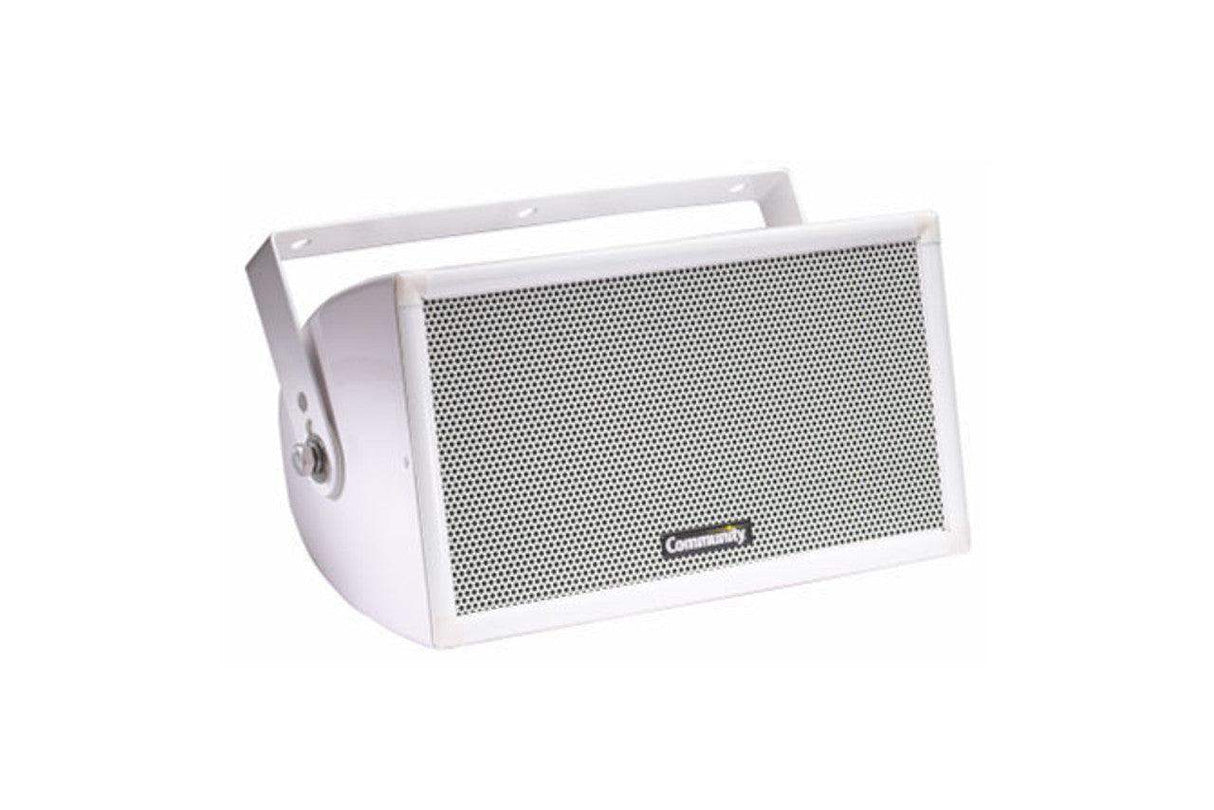

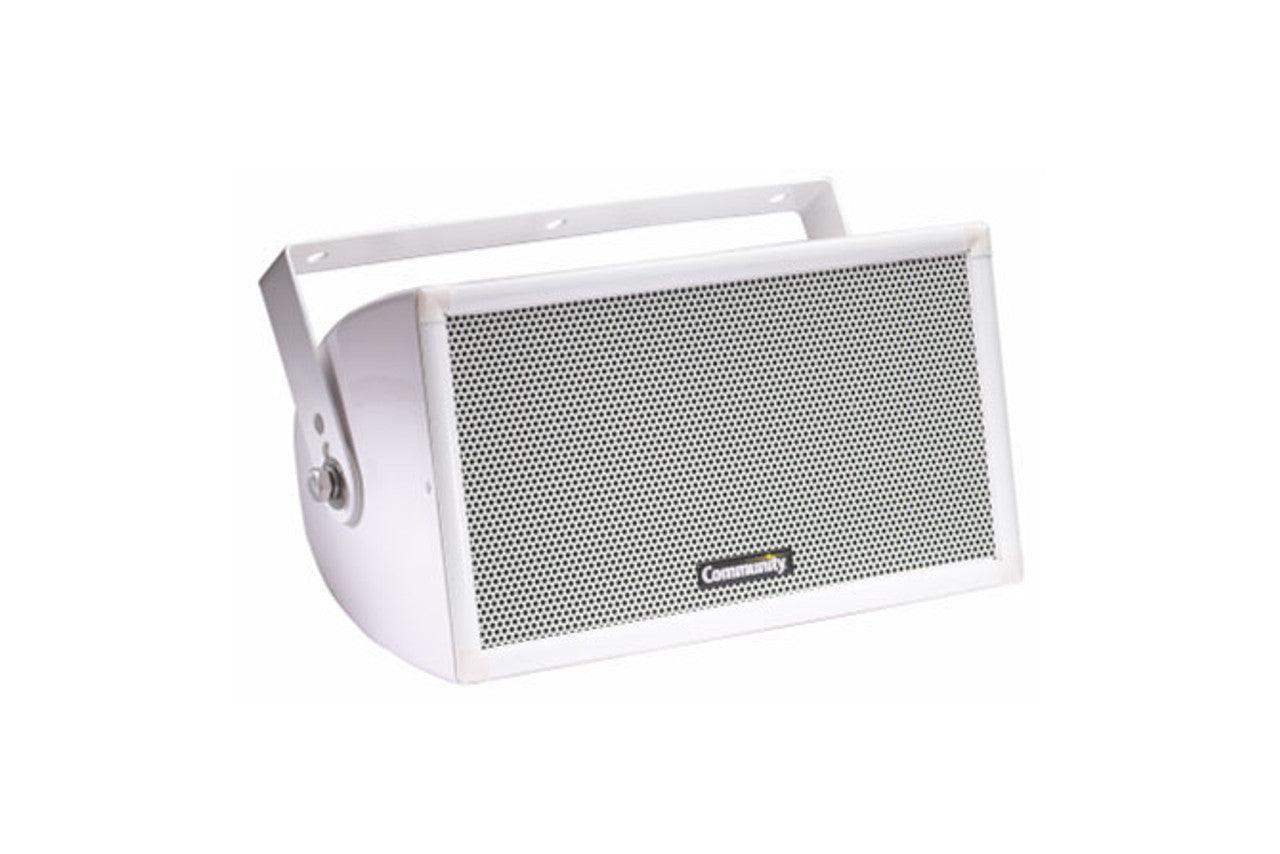

Biamp Community W2-2W8 Two-Way 8-Inch "Wide" Compact System (White) - 911.1348.900

Exhibiting a true 120º wide coverage pattern, the Community WET2W8 is an innovative two-way loudspeaker. The W2-2W8 satisfies a variety of sound reinforcement, down-fill, under balcony stage edge fill, monitoring, and other applications.

The LF drivers and centrally placed 120º HF pattern control horn have been engineered to provide superior uniform pattern over the widest possible bandwidth. The unique molded "Super-V" configuration of the LF drivers provides exceptional uniform mid-range coverage that would be impossible to create with a conventional flat wood baffle plate. Precise modeling and documentation prove that woofer/horn/woofer placement in traditional under balcony fill-type loudspeaker designs exacerbates severe vertical lobing. The Super-V configuration prevents the collapse of the horizontal coverage pattern throughout its range, especially the critical voice-range, when oriented in its usual horizontal position.

Engineered for permanent installations, the loudspeaker enclosure and faceplate are constructed of multi-layer glass composite, resulting in extreme structural strength. A three-layer Weather-Stop grille provides weather-resistance to the internal components, while all exposed hardware is stainless steel or powder coated aluminum extrusion. A stainless steel mounting yoke is included.

Features

• All-Weather, Multilayer Glass Composite Enclosure
• Stainless Steel Hardware
• Integral Mounting Points
• High Power Passive Crossover
• Ferrofluid-Cooling
• Dual-layer Powder Coated Weather-Resistant Stainless Steel Grille and Yoke
• Mounting Yoke Included

Specifications

• System:
• Format: Two-way, full-range
• Operating Range: 65 Hz - 18 kHz
• Frequency Response: 80 Hz - 15 kHz (±3 dB)
• Dispersion (-6 dB): 120º H x 60º V
• Maximum SPL @1m: 121 dB continuous / 128 dB peak
• Crossover Frequency: 1 kHz
• Sensitivity in SPL (1W/1m, free space):
• 97 dB (100 Hz - 13 kHz, 1/3 octave)
• 98 dB (250 Hz - 4 kHz, speech range)
• Max Power Handling (passive mode):
• 250W RMS
• 600W Program
• Impedance: Nominal 8 Ohm / Min. 4.6 Ohm at 190 Hz
• Transducers:
• Low Frequency: 2x 8:" (203 mm) carbon fiber
• High Frequency: 1" (25.4mm)
• Mechanical
• Enclosure: Hand-laminated fiberglass
• Rigging Provisions: Two 1/2-13 rigging points; yoke bracket included
• Input Connection: 16-2 SJOW (12 ft / 4m)
• Grille: Three-layer Weather-StopTM
• Dimensions: 10.13" H x 20" W x 11.5" D (257 x 508 x 292 mm)
• Net Weight: 40.4 lbs (18.3 kg)
