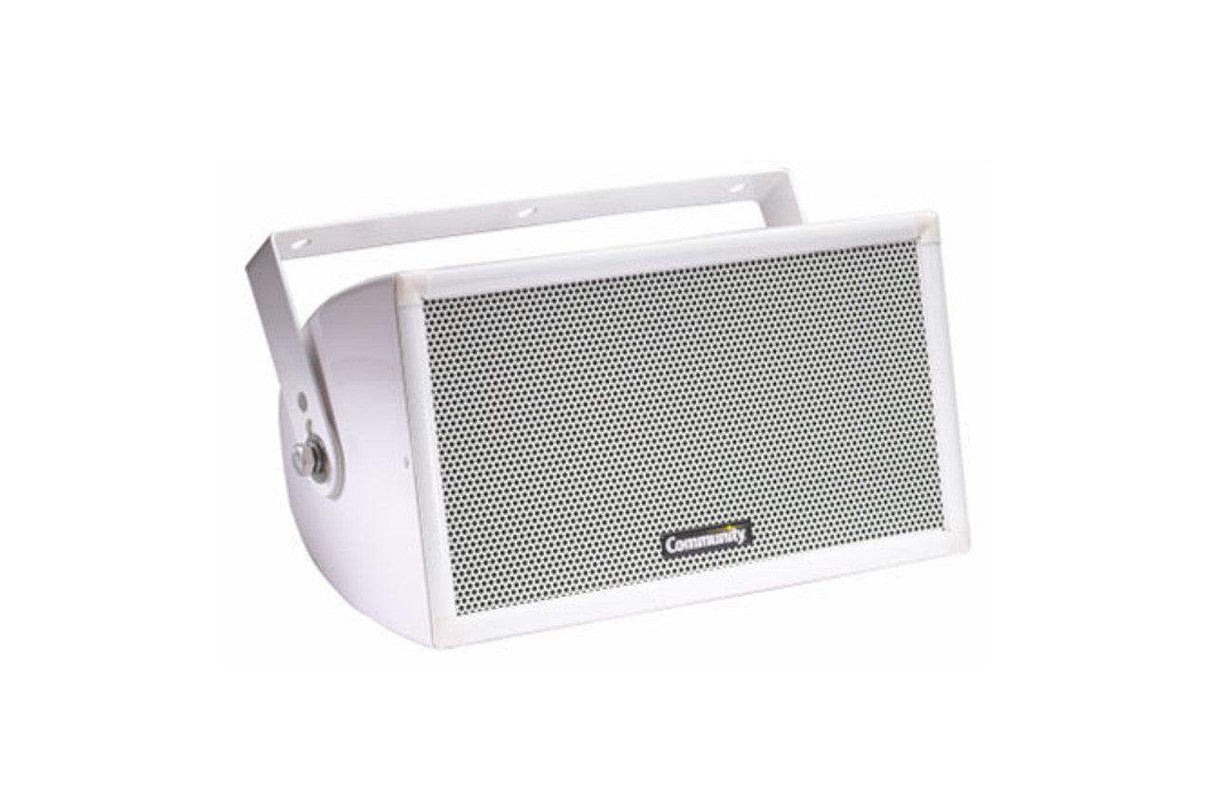

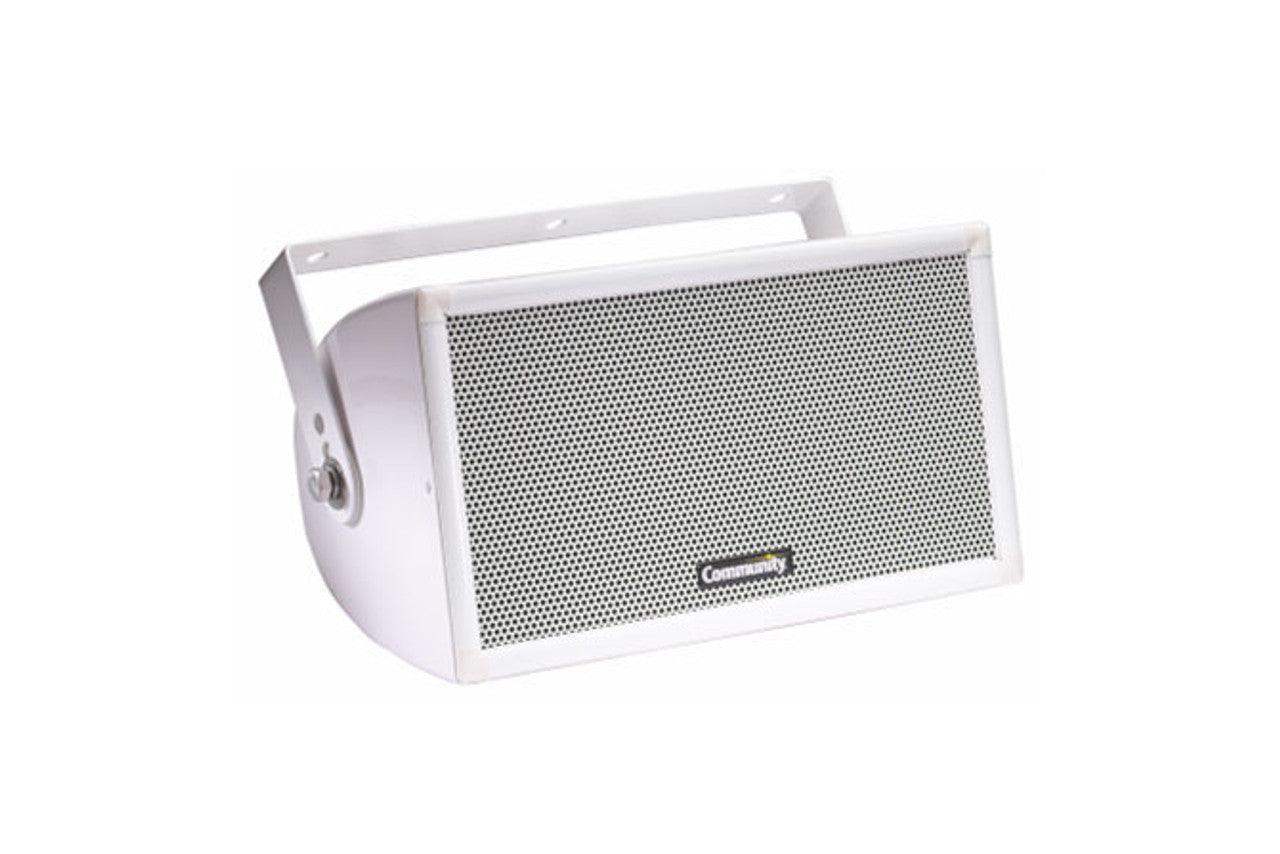

Biamp Community W2-218T Full-Range 2-Way 8-Inch Compact System 70V/100V (White) - 911.1341.900

The Community W2-218T is a compact two-way, full-range loudspeaker system featuring an 8-inch carbon fiber LF driver and a 1-inch HF compression driver with a weather resistant, non-metallic, non-resonant polyimide diaphragm. Drivers are Ferrofluid-cooled to improve heat transfer, resulting in higher power handling and reduced distortion. The W2-218T features a built-in 100-watt autoformer for 70V/100V lines with selectable taps at 100, 50, 25 and 12.5 watts.

Like all WET Series II loudspeakers, the W2-218T is designed to provide high quality music and voice reproduction in applications requiring extreme weather-resistance. The W2-218T's compact enclosure features unmatched durability and ruggedness and is engineered for use in permanent installations.

The loudspeaker enclosure and faceplate are constructed of multi-layer glass composite, resulting in extreme structural strength. A three-layer Weather-Stop grille provides weather-resistance to the internal components, while all exposed hardware is stainless steel or powder-coated aluminum extrusion. A weather-resistant stainless steel mounting yoke is included.

The W2-218T is backed by a five-year product warranty plus a fifteen-year enclosure warranty.

Features

• Built-in 100W autoformer for 70V/100V applications
• All-Weather, Multilayer Glass Composite Curvilinear Enclosure
• Stainless Steel Hardware
• Integral Mounting Points
• High Power Passive Crossover
• Ferrofluid-Cooling
• Weather-StopTM Grille
• Powder Coated Stainless Steel Mounting Yoke Included

Specifications

• SYSTEM:
• Format: Two-way, full-range
• Operating Range: 70 Hz - 18 kHz
• Frequency Response: 90 Hz - 15 kHz (±3 dB)
• Dispersion (-6 dB): 80º H x 60º V
• Maximum SPL @1m: 114 dB continuous / 121 dB peak
• Crossover Frequency: 2 kHz
• Sensitivity in SPL:(1W/1m, free space):
• 93 dB (125 Hz - 13 kHz, 1/3 octave)
• 92 dB (250 Hz - 4 kHz, speech range)
• Max Power Handling:
• 125W RMS
• 300W Program
• Autoformer Version:
• 70V Tap: 100W, 50W, 25W and 12.5W
• 100V Taps: 100W, 50W, 25W
• Impedance: Nominal 8 Ohms /Min. 3.5 Ohms @15.3 kHz
• TRANSDUCERS
• Low Frequency: 8" Carbon Fiber (203 mm)
• High Frequency: 1" Non-Metallic (25.4 mm)
• MECHANICAL
• Enclosure: Hand-laminated fiberglass
• Rigging Provisions: Two 1/2-13 rigging points; yoke bracket included
• Grille: Three-layer Weather-StopTM
• Dimensions: 9.25" H x 15.5" W x 10.14" D (235 x 394 x 258 mm)
• Net Weight: 18.6 lbs (8.4 kg)
