The VLF subwoofers feature a low-profile design that is ideal for theaters, restaurants, auditoria, houses of worship, schools and other venues, with the compact VLF208 and VLF208LV fitting into areas where larger subwoofers are impractical.
Loading...
Product Questions? Ask Our Experts!
888.230.3661
sales@creationnetworks.net
Contact us today for your best package pricing and product availability.
Biamp Community VLF208LV-I Dual 8-Inch "Large Volume" Subwoofer (White) - 911.0585.900
Regular price
$970.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Biamp | SKU:
911.0585.900
Biamp Community VLF208LV-I Dual 8-Inch "Large Volume" Subwoofer (White) - 911.0585.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Biamp Community VLF208LV-I Dual 8-Inch "Large Volume" Sub...
Regular price
$970.00
Unit price
/
Unavailable

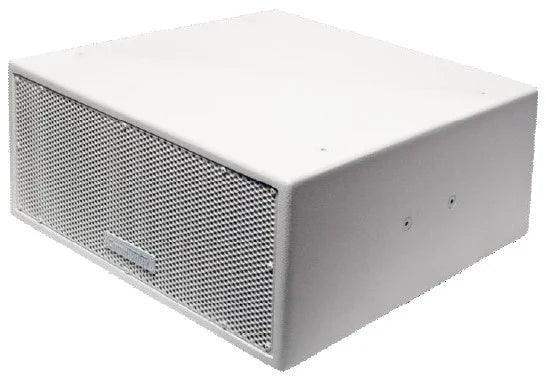

The Community VLF208LV-I is a dual 8" install subwoofer in a "large volume" enclosure with multiple M10 hang points that is designed for applications that require the lowest frequencies from a slim profile design. The VLF208LV-I measures 10.2" H (10" without feet) by 21.75" W and 21.75" D. With a frequency response down to 40 Hz (-3dB) and an operating range to 30 Hz (-10dB), the 1000W program VLF208LV-BI delivers low-end power. Its low-velocity port design extends the response while eliminating air noise through the heavy duty 16-gauge steel perforated grille.
Features
- Low profile design, small footprint
- Designed to work as a traditional subwoofer or in steered bass arrays
- DYNA-TECH protection circuitry
- Suitable for in-wall, under-seating, under-stage and other "hidden" LF applications
- Five-year warranty
- Installation version with 12 mounting points
Specifications
- Loudspeaker Type: Compact, direct-radiating subwoofer
- Operating Range*:
- 30 Hz to 1,000 Hz
- 40 Hz to 200 Hz (±3 dB)
- Max Input Ratings:
- 400W continuous, 1000W program, 4 ohms
- 40 volts RMS, 89 volts momentary peak
- Recommended Power Amplifier: 630W to 900W @ 4 ohms
- Sensitivity (1W/1m)*: 93 dB SPL (40 Hz to 200 Hz 1/3 octave bands)
- Maximum Output: 119 dB SPL / 126 dB SPL (peak)
- Nominal Impedance: 4 ohms
- Minimum Impedance:
- 3.9 ohms @ 160 Hz
- Nominal –6dB
- Beamwidth: 360° H x 180° V
- Axial Q / DI: 1/0, 40 Hz to 200 Hz
- Recommended Signal Processing: 40 Hz, 24 dB high pass filter
- Drivers: LF (2) 8"
- Driver Protection: None
- Input Connection:
- (2) NL4-compatible locking connector
- (1) 2 conductor barrier strip
- Enclosure: 11-ply cross-laminated birch
- Finish: Black or white paint finish
- Mounting/Rigging Provisions: (12) M10 hang points
- Required Accessories: None
- Supplied Accessories: (4) Rubber feet
- Optional Accessories:
- VLF-SAB steered array bracket
- M10EYBLTKIT 10mm eyebolt kit
- STKIT seat track kit
- Dimensions (HxWxD): 10.2" x 21.75" x 21.75" (260 x 552x 552 mm)
- Weight: 48 lbs. (21.8 kg)
