The V2-8 may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points.
An optional model with a built-in 100W autoformer with taps at 100W, 50W, 25W and 12.5W (model V2-8T) is also available.
Features
- DYNA-TECH driver protection circuitry
- Ferrofluid-treated HF driver for improved heat dissipation
- Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability
- Constant-directivity rotatable square horn
- Terminal strip and NL4-compatible connectors

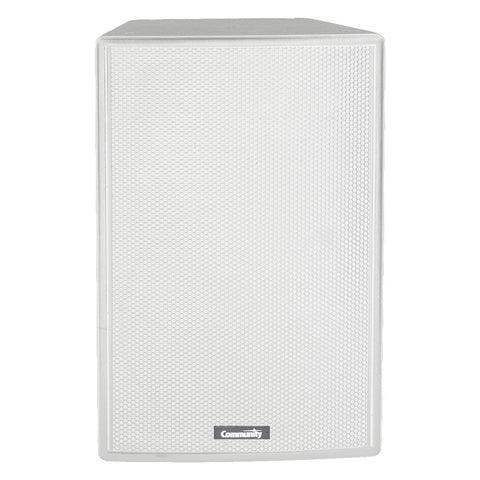

- Available in standard black or white finishes
- Mounting yoke included with 10° and 20° vertical standoffs
- Optional V2-8T autoformer model for 70V/100V applications
Specifications
- Loudspeaker Type: Compact two-way, full-range, trapezoidal, vented bass, user rotatable horn
- Operating Range: 70 Hz to 18 kHz (-10 dB)
- Frequency Response: 100 Hz to 16 kHz (±3 dB)
- Max Input Ratings:
- 150W continuous, 375W program
- 34.6 volts RMS, 69.2 volts momentary peak
- Sensitivity (1W/1m): 92 dB (100 Hz to 12.5 kHz) free space
- Maximum Output: 114 dB SPL / 120 dB SPL (peak)
- Nominal Impedance: 8 ohms
- Minimum Impedance: 6.1 ohms @ 180 Hz
- Nominal –6dB
- Beamwidth: 90° H x 70° V (in vertical position)
- Crossover Frequency: 1.3 kHz
- Recommended Signal Processing: 90 Hz, 24 dB/octave Butterworth high pass filter
- Drivers:
- LF 1 x 8-inch cone
- HF 1 x 1-inch
- Driver Protection: DYNA-TECH protection circuitry
- Input Connection: NL4-compatible locking connector with terminal strip in parallel
- Controls: None
- Enclosure: Trapezoidal (22.5° included angle) 18mm,11-ply cross-laminated birch
- Mounting/Rigging Provisions:
- 9 x M6 threaded rigging fittings
- 4 x M6 threaded fittings for V-HSS and third-party suspension products
- Finish: Catalyzed polyester two-part paint, black or white
- Grille: Powder coated steel, black or white finish
- Required Accessories: None
- Supplied Accessories: Yoke-style mounting bracket with optional 10° and 20° standoffs that allow a 10° or 20° downward or upward vertical tilt
- Optional Accessories:
- CMKIT ceiling mount kit
- V-HSS handle and stand socket
- VB-TILT tilting bracket
- VB-VY8 vertical yoke bracket
- M6EYBLTKIT 6mm eyebolt kit
- Dimensions:
- Height: 17 inches (433 mm)
- Width: 11.3 inches (287 mm)
- Depth:11.7 inches (298 mm)
- Weight (incl. bracket):
- 25.3 lbs (11.5 kg)
- 27.3 lbs (12.5 kg) with autoformer
