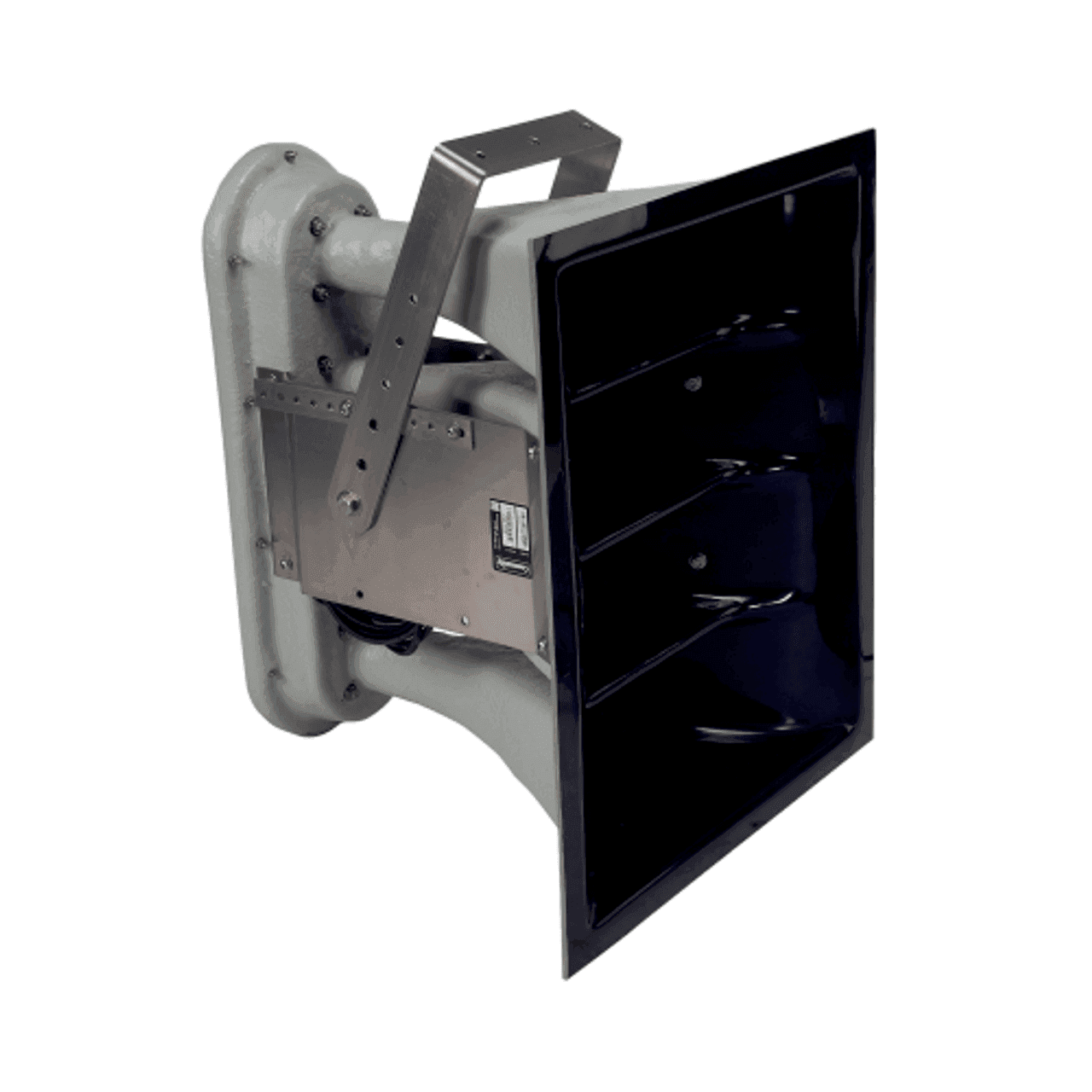

Biamp Community RSH-462 Exponential FocusedArray™ High Level Horn System

The RSH-462 is a complete horn/driver system designed for use in standalone voice-range sound reinforcement and announcement/signaling applications. The RSH-462 provides focused, very high output sound projection, with predictable performance and exceptional long-term durability. The horn portion of the assembly is a handcrafted one-piece Patented FocusedArray wave-guide, precision molded in hand laminated, reinforced fiberglass for optimum performance. With substantial fiberglass layering and integral throat and driver flange construction, the horn is built to withstand substantial loads. The inherent strength and rigidity of fiberglass construction enhances sonic efficiency by preventing sound energy loss as well as providing an inherently weather resistant installed loudspeaker system.

The compression drivers are high output, high sensitivity loudspeakers that are configured with the diaphragm facing forward, isolating the voice coil and magnetic structure of each driver from the environment. The one-piece, non-metallic diaphragm/suspension offers exceptional resistance to the effects of humidity, dust, and corrosive atmospheres. The large area, low compression phase plug and large magnet structure exhibits extremely low distortion at high outputs while maintaining high efficiency and low power compression. A fiberglass rear cover protects the drivers from the effects of weather and corrosion. A weather-resistant mounting bracket assembly is included with the loudspeaker system.

Features

• 2-inch (51mm) throat exit X four
• High efficiency
• High power output
• Non-metallic diaphragms
• Highly resistant to harsh environments
• IP65 rating

Specifications

• Loudspeaker Type: Exponential FocusedArray Horn System
• Operating Range:
• 400 Hz to 8 kHz
• 600 Hz to 4 kHz (± 4dB)
• Max Input Ratings:
• 300W continuous, 750W program
• 49 volts RMS, 110 volts momentary peak
• Recommended Power Amplifier: 630W to 900W @ 8 ohms
• Usable LF Limit: 400 Hz
• Throat Entrance Diameter: 4 x 2”
• Axial Sensitivity (1W/1m):
• 118 dB SPL (600 Hz to 4 kHz 1/3 octave bands)
• 117 dB SPL (250 Hz to 4 kHz speech range)
• Maximum Output: 143 dB SPL / 150 dB SPL (peak)
• Nominal Impedance: 11 ohms
• Minimum Impedance: 10.8 ohms @ 570 Hz
• Nominal –6dB Beamwidth:
• 60°H (+1° / -4°, 1600 Hz to 4000 Hz)
• 20°V (+20° / -0°, 1600 Hz to 4000 Hz)
• Axial Q: 27.5 1.6 to 4 kHz
• Axial DI: 14.4
• Required Signal Processing:
• 400 Hz high pass filter (24 dB/Oct)
• 8 kHz low pass filter (12 db/Oct) (for 4 x M200 driver standalone)
• Construction: Hand laminated, reinforced composite fiberglass
• Interior: Black gelcoat
• Exterior: Grey gelcoat
• Drivers: 4 x M200 ferrofluid-cooled
• Supplied Accessories: Factory-installed mounting bracket, hot-dipped galvanized 304 stainless steel
• Optional Accessories: Digital system processor
• Dimensions:
• Height: 28.5 inches (723.9 mm)
• Width: 24.5 inches (622.3 mm)
• Depth: 22.5 inches (571.5 mm)
• Weight (loudspeaker): 54.2 lbs (24.58 kg)
• Weight (loudspeaker with bracket assembly): 71.3 lbs (32.34 kg)
• Shipping Weight: 82 lbs (37.2 kg)
