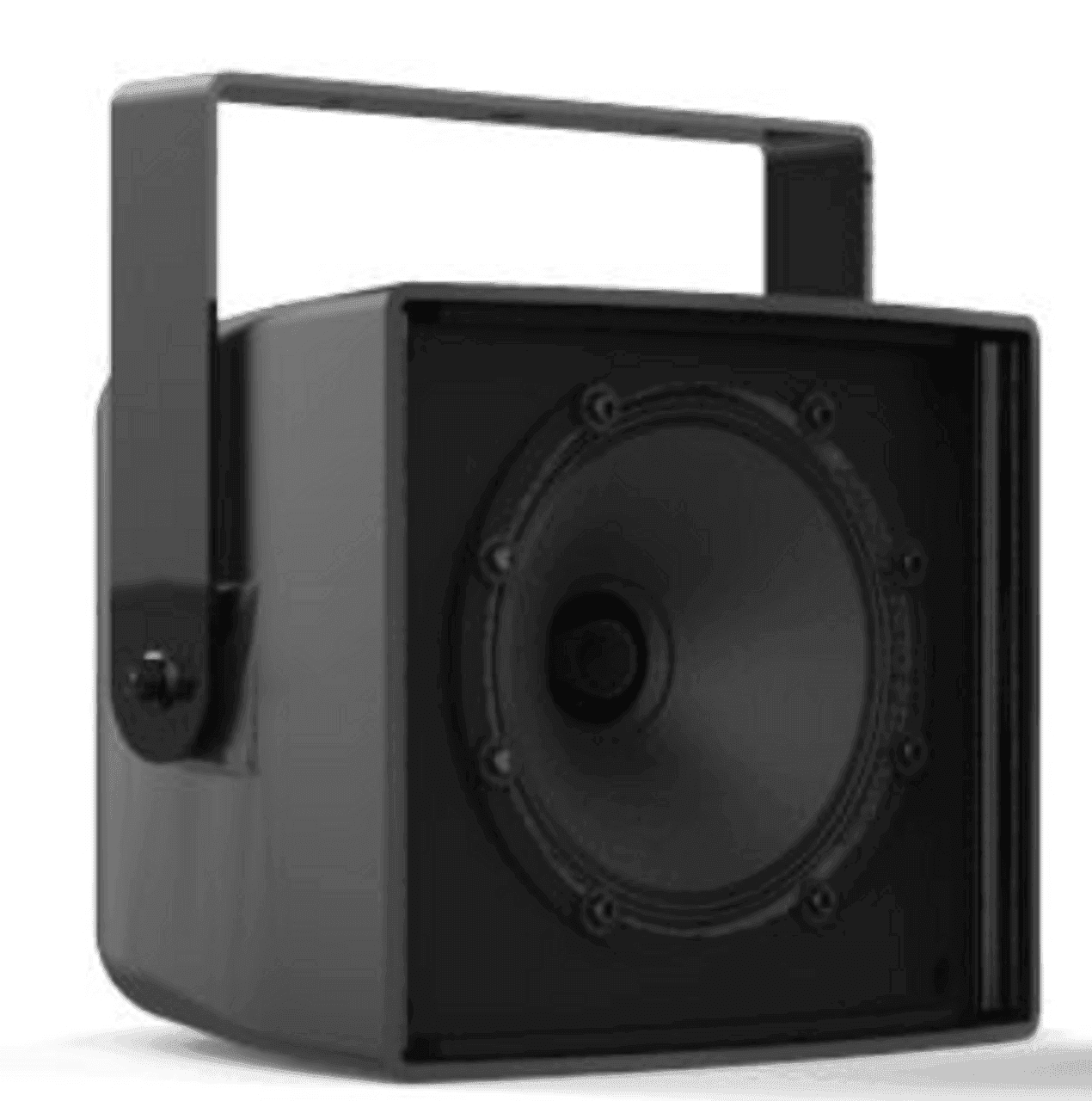

The largest member of the coaxial family, the 12-inch R.5COAX features the same high sensitivity and high output as the R.35COAX but with even greater LF extension. Community’s exclusive LF driver and 1-inch exit horn loaded compression driver produce a wide range, smooth musical frequency response with high efficiency, ensuring both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion.
The R.5COAX66 high fidelity, two-way, full-range loudspeaker system is engineered to provide quality full-range sound in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion.
Applications
- Convention centers
- Fill speaker for stadiums, athletic fields, arenas and race tracks
- Outdoor background music / paging systems
- Theme and amusement parks
- Fairgrounds, rodeos, air shows
- Malls, cruise ships, skating rinks
- Swimming pools
- Portable sound systems
Features
- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- High fidelity
- High efficiency
- Integral mounting points
- High power passive crossover
- Optional 200W, 70V autoformer
Specifications
- Loudspeaker Type: 2-way, coaxial, weather-resistant, full-range
- Operating Range: 80 Hz to 18 kHz, 90 Hz to 12.5 kHz (±3.5 dB)
- Max Input Ratings: 200W continuous, 500W program, 40 volts RMS, 89 volts momentary peak
- Recommended Power Amplifier: 420W to 600W @ 8 ohms
- Sensitivity (1W/1m): 98 dB SPL (100 Hz to 13 kHz 1/3 octave bands), 97 dBSPL (250 Hz to 4 kHz speech range)
- Maximum Output: 121 dB SPL / 128 dB SPL (peak)
- Nominal Impedance: 8 ohms
- Minimum Impedance: 4.2 ohms @ 9.9 kHz, Nominal –6dB
- Beamwidth:
- H: 60° (+20° / -6°, 1.6 kHz to 12.5 kHz)
- V: 60° (+20° / -3°, 1.6kHz to 12.5 kHz)
- Axial Q / DI: 15.2 / 11.8, 1.6 kHz to 12.5 kHz
- Crossover Frequency: 2 kHz
- Recommended Signal Processing: 60 Hz high pass filter
- Drivers:
- LF: 1 x 12”
- HF: 1 x 1” exit titanium free, Ferrofluid-cooled
- Driver Protection: DYNA-TECH protection circuitry
- Input Connection: 12 foot (4 m) SJOW #16 gauge
- Controls: None
- Enclosure: Rotomolded LLDPE, Light Grey
- Mounting/Rigging Provisions: (5) 3/8-16 rigging points
- Grille: 3-layer WeatherStop™, Light Grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
- Required Accessories: 24 dB/Oct high pass filter
- Supplied Accessories: (1) Yoke bracket, light grey, (1) Aiming strap
- Optional Accessories: PMB Series pole mount brackets
- Dimensions (HxWxD): 16" x 16" x 15.94" (406.4 x 406.4 x 404.88 mm)
- Weight:
- Product: 35 lbs (15.9 kg)
- Shipping: 42 lbs (19.1 kg)
- Environmental Performance: IEC529 IP54W rating with a minimum 5-degree downward aiming angle
