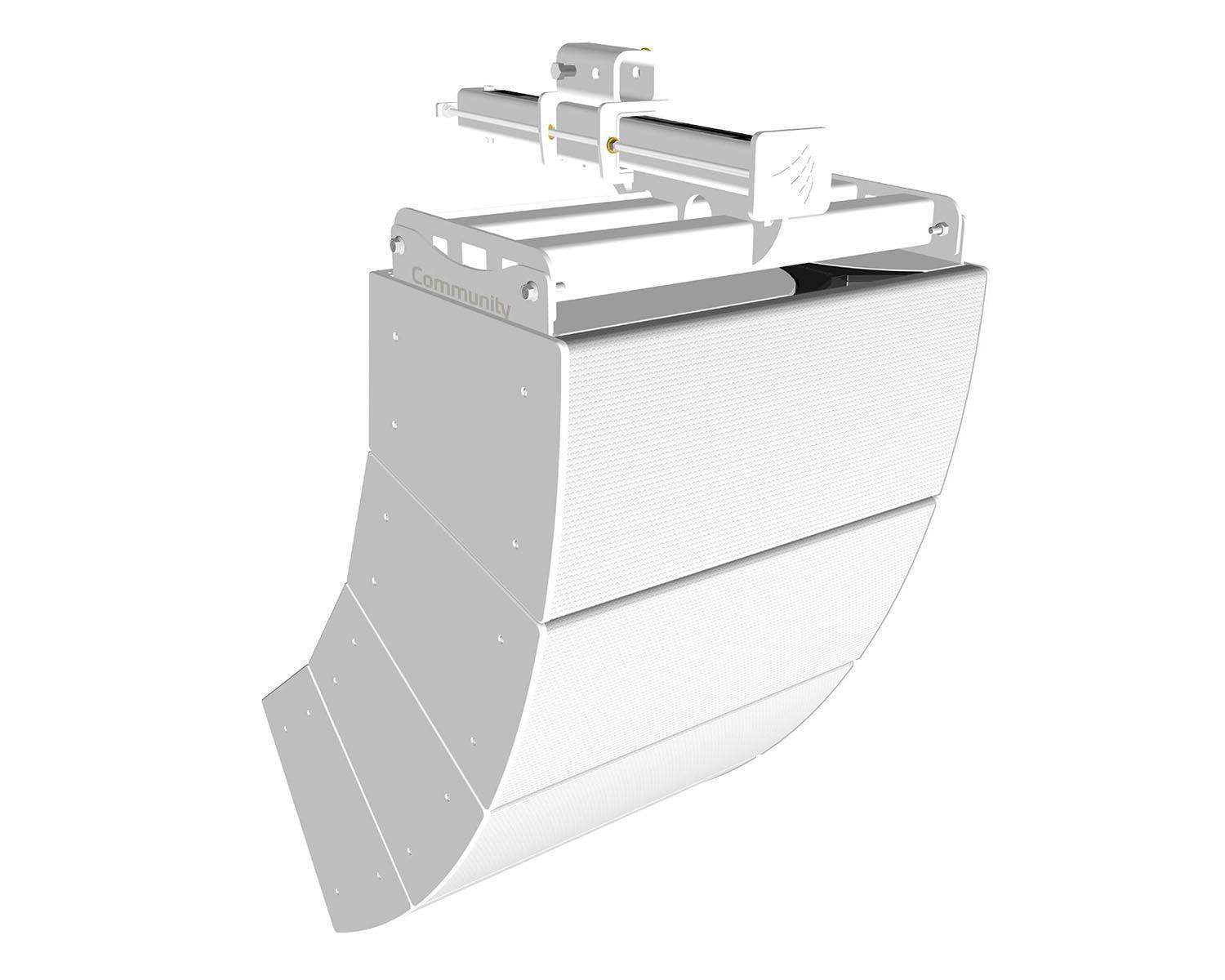

Biamp Community IV6-1122/15 12-inch two-way, 120 x 15 (Indoor, White) - 911.1189.900

Community IV6-1122/15 is a 12" two-way loudspeaker with 120 x 15 dispersion. Designed for indoor use.

I SERIES Modular Vertical Array 600 is a scalable, adaptive sound reinforcement system featuring multiple vertically arrayable elements designed to be used in combination or separately, and with or without splay between cabinets, providing an extensive range of vertical coverage angle and throw distance configurations. Two carefully chosen array elements, 120° x 5° and 120° x 15°, overcome the physical limitations and acoustical tuning difficulties of conventional line arrays and constant-curvature (point source) arrays while maintaining the best qualities of each.

Please note the pictures are for illustrative purposes only. Product may differ in appearance.

Features

• Modular, can be combined to make arrays of up to twenty elements @ 10:1 safety ratio
• Versatile configurations for both constant curve and line array applications
• Built-in Passive Acoustic Optimization settings allow array response shaping using one amplifier channel
• Elegant acoustics designed for permanent installations
• Exclusive Acoustic Optimization and Rigging Safety Check modules integrated into EASE Focus 3

Specifications

• Transducers: LF- 1 x 12" (305mm) ferrite driver, 3"(76mm) voice coil, inherently weather-resistant cone; HF- 2 x 1.7" (43mm)voice coil, 1" (25mm) exit, ketone polymer diaphragm, neodymium compression drivers
• Operating Range: 40 Hz to 18.5 kHz
• Passive Array Optimization: Element Attenuation: 15dB range (in 1.5 dB steps)
• Continuous Power Handling @ Nominal Impedance: 80V,400W @ 16 ohms
• Max continuous output (for 4 cabinets): 139 dB
• Nominal Beamwidth (H x V); 1122/05 – 120° x 5° (max);1122/15 – 120° x 15° (max); Vertical beamwidth is array dependent and can be modified by splay brackets
• Finish: Black or White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille; Outdoor(WR): 15mm PolyGlas, Grey, Black or White heavily textured exterior-rated coating with powder-coated marine-grade aluminum
• Dimensions: 14.02" x 28.12" x 16.55" (356 x 714 x 421 mm)
